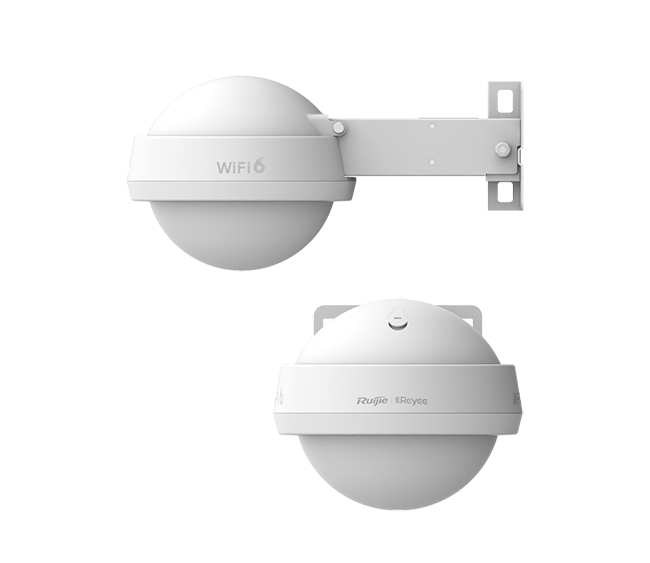

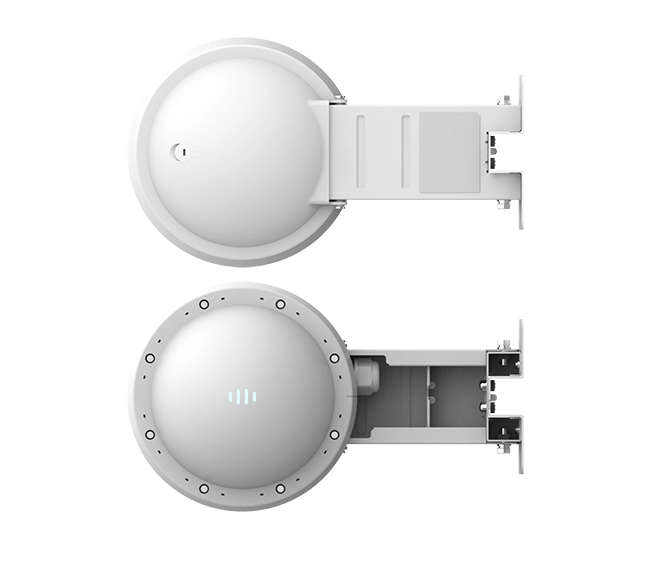

Ruijie Reyee RG‑RAP6262 -AX3000 Outdoor Omni-directional AP

Here are the detailed specifications for the RG‑RAP6262 Reyee AX3000 High‑Performance Outdoor Omni‑Directional Access Point:

📶 Wireless Performance

• Wi‑Fi Standard: 802.11ax (Wi‑Fi 6), dual-band, 2×2 MU-MIMO
• Max Throughput: Up to 2.976 Gbps total (~574 Mbps @2.4 GHz + ~2402 Mbps @5 GHz) with OFDMA, 1024-QAM, and 160 MHz channels

🛰 Antennas & Coverage

• Omni-directional internal antennas
• Gain: ~3 dBi @2.4 GHz, 4 dBi @5 GHz
• Coverage radius: Field tested up to ~100 m on 2.4 GHz and ~300 m on 5 GHz

🌤 Durability & Form Factor

• Ingress Rating: IP68—fully sealed, waterproof, dustproof, flame-retardant, wind-resistant
• Operating Temp: –30 °C to +65 °C
• Surge Protection: 4 kV on ports
• Dimensions: ~230 × 230 × 195 mm (without mount)
• Weight: ~1.2–1.4 kg (without mount)

🔌 Ports & Power

• Ethernet: 1× 1 GbE PoE+ IN, 1× 1 GbE SFP
• DC Input: Optional 12 V/2 A DC jack
• Power Draw: ≤24 W

👥 Capacity & Coverage

• Client Capacity: Supports up to 512 clients (recommended ≤110–130 active)
• SSID Support: Up to 8 SSIDs

🔄 Advanced Features

• Mesh Networking: Reyee Self‑Organizing Network (SON) for seamless multi-AP deployment
• Roaming: Layer 2 & Layer 3 client roaming
• OFDMA, Beamforming, 160 MHz channels, DFS support
• Security: WPA/WPA2-PSK, blacklist/whitelist, SSID hiding, client isolation, VLAN support

🛠 Management & System

• Management: Free cloud portal, Reyee mobile app, and local web GUI
• Cloud Features: Auto RF optimization, topology monitoring, scheduled restarts, dual-bin firmware

✅ Summary

The RG‑RAP6262 delivers AX3000 performance (~3 Gbps) with omni-directional coverage, IP68 durability, and robust outdoor deployment capabilities. With both PoE+ and SFP uplinks, high client support, advanced Wi‑Fi 6 features, and seamless mesh capability, it’s perfect for campuses, parks, and large outdoor spaces.

Datasheet
