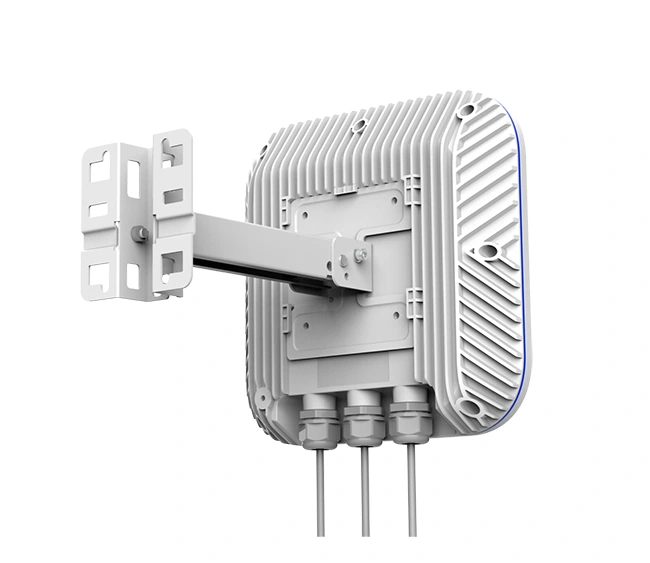

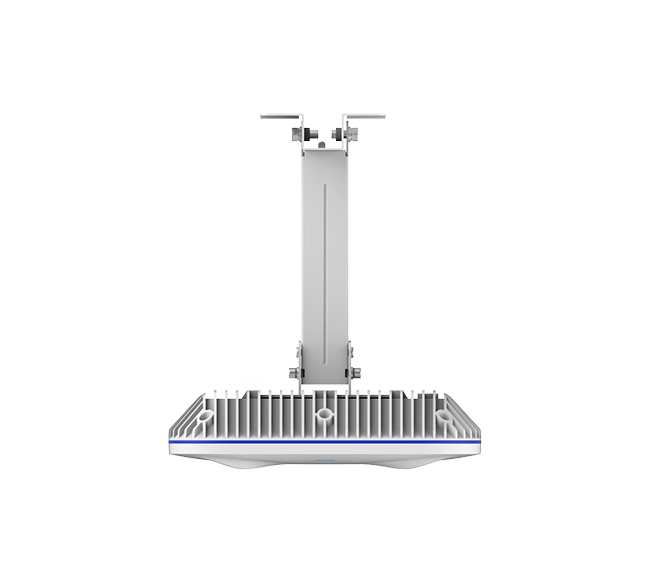

Ruijie Reyee RG‑RAP6260(H) AX6000 Outdoor Omni‑Directional AP

Here are the detailed specifications for the RG‑RAP6260(H) Reyee AX6000 High‑Density Outdoor Omni‑Directional Access Point:

🌐 Wireless Performance

• Wi‑Fi Standard: 802.11ax (Wi‑Fi 6)
• Radio Streams: 4×4 MU‑MIMO on both 2.4 GHz and 5 GHz bands
• Max Throughput:
  • 2.4 GHz: ~1,148 Mbps
  • 5 GHz: ~4,804 Mbps
  • Total: ~5.95 Gbps (AX6000 class)
• Client Capacity: Up to 512 devices (optimal ~130 concurrent)

📡 Antennas & Coverage

• Built‑In Antennas: 8 high‑gain omnis
• Gain: ~3 dBi at 2.4 GHz, 4 dBi at 5 GHz
• Coverage Radius (field tested):
  • 2.4 GHz: ~100 m
  • 5 GHz: ~300 m

🛠 Physical & Environmental

• Ingress Rating: IP68 — sealed, durable, flame‑retardant V0
• Operating Temp: –40 °C to +65 °C (storage to +85 °C)
• Surge Protection: 4 kV on ports; vibration-tested per standards
• Size: 300 × 300 × 75.5 mm (no mount)
• Weight: ~3.5 kg (without mounting brackets)

🔌 Connectivity & Power

• Ethernet Ports:
  • 1× 100/1000/2,500 Mbps copper (PoE in)
  • 1× 1 GbE SFP port
• Power Input: IEEE 802.3bt PoE++ (48 V/1 A), plus optional DC plug
• Power Consumption: ≤ 40 W

🌐 Networking Features

• Modes: AP or standalone router mode
• Roaming: Supports Layer 2 & Layer 3 for seamless transitions
• Mesh: Reyee Self-Organizing Network for easy Wi‑Fi extension
• SSIDs: Up to 8, with VLAN tagging, client limits, SSID hiding
• Security: WPA‑PSK/WPA2‑PSK, MAC filtering, black/white lists

🔧 Management & QoS

• Management:
  • Ruijie Cloud App & Platform
  • Local Web UI
  • Auto-provisioning, remote topology monitoring, RF tuning
• Optimization: OFDMA, 1024‑QAM, 160 MHz channel support

🏅 Certifications & Reliability

• Certs: CE, RoHS
• MTBF: > 400,000 hr
• Warranty: 3 years

✅ Summary

With AX6000 speeds (~6 Gbps), robust 4×4 MIMO, massive client capacity, and rugged IP68 build, the RG‑RAP6260(H) is tailored for high-density, outdoor deployments. Dual uplinks (2.5 GbE copper + SFP), full mesh, and cloud-based management make it ideal for campuses, municipalities, and large outdoor venues.
