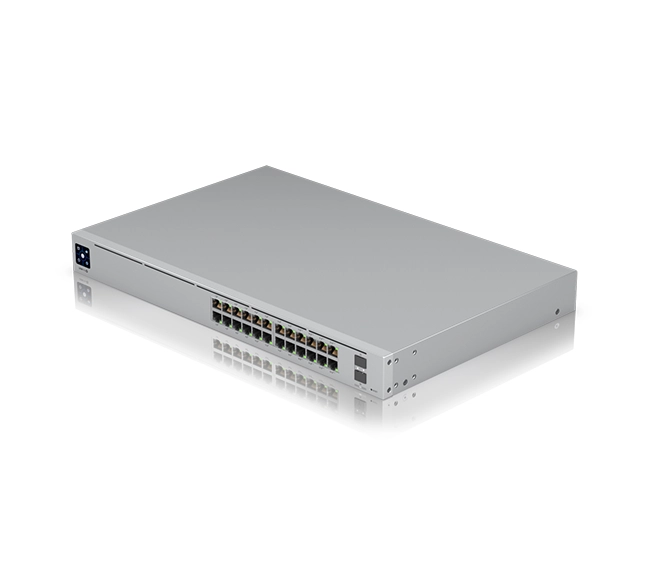

Ubiquiti UniFi USW Pro 24 Switch (PoE & Non-PoE)

UniFi USW-Pro-24 and USW-Pro-24-PoE — enterprise-grade Layer 3 switches with 1GbE and 10GbE ports, 400W PoE++ support, smart touchscreen.

Here are the detailed specs for the UniFi USW‑Pro‑24 (both non‑PoE and PoE models), combined and streamlined:

🛠 USW‑Pro‑24 (Non‑PoE)

• Ports
  • 24 × 1 GbE RJ45
  • 2 × 10 GbE SFP+ uplinks
• Switching & Performance
  • 88 Gbps switching capacity
  • 44 Gbps non‑blocking throughput
  • 65 Mpps forwarding rate
• Layer 2/3 Capabilities
  • Supports VLANs (up to 1 000), LACP, STP/RSTP, QoS, IGMP snooping, jumbo frames, 802.1X, ACLs
  • Layer 3: static & inter‑VLAN routing, DHCP server/relay
• Hardware & Power
  • 1.3″ touchscreen with Etherlighting™, near‑silent fanless design
  • Internal AC/DC PSU (36 W); max draw ~30 W (+102 BTU/hr)
  • USP‑RPS DC backup input supported
• Physical & Environmental
  • Dimensions: 442 × 285 × 44 mm; weight: ~3.5 kg (3.6 kg w/ brackets)
  • Operating temp: –5 °C to 45 °C; humidity: 10–90% non‑condensing
  • Certifications: CE, FCC, IC, NDAA compliant
• Management
  • Managed via UniFi Network Controller (v5.12.11+ / v8+)

⚡ USW‑Pro‑24‑PoE (PoE Version)

Includes all non‑PoE features, plus:

• PoE Ports & Budget
  • 16 × 1 GbE PoE+ (30 W max each)
  • 8 × 1 GbE PoE++ (up to 64 W each)
  • 2 × 10 GbE SFP+ uplinks
  • Total PoE: 400 W budget
• Power Supply
  • 450 W internal AC/DC PSU; max draw 50 W (idle), 450 W (full PoE)
  • USP‑RPS support for redundancy
• Cooling
  • Active near‑silent fans with PWM for workspace compatibility

📊 Quick Comparison

💡 Ideal Use Cases

• Non‑PoE model: Perfect for silent aggregation/backbone switching in offices or homes.
• PoE model: Ideal for powering access points, cameras, VoIP, and other PoE devices with high power demands.

Datasheet (USW‑Pro‑24)

Datasheet (USW‑Pro‑24-PoE)
