Ubiquiti UniFi Gateway Max (UXG‑Max)
KSh 35,500 (KSh 41,180 Incl VAT)
- Compact 2.5 GbE security gateway with quad-core CPU and 2 GB RAM
- 5 total 2.5 GbE ports: 1 WAN + 4 LAN (one remappable as secondary WAN)
- Advanced firewall, Layer 7 DPI, content filtering, and QoS
- Supports IDS/IPS (2.3 Gbps throughput) with UniFi CyberSecure
- Built-in cloud-enabled VPN (Teleport, WireGuard, OpenVPN, IPsec)
- Managed via UniFi Network Controller (Cloud Key, UDM, or self-hosted)
- USB-C power input (5 V/3 A), compact and fanless design
- NDAA compliant, durable, and ideal for high-performance home or business networks

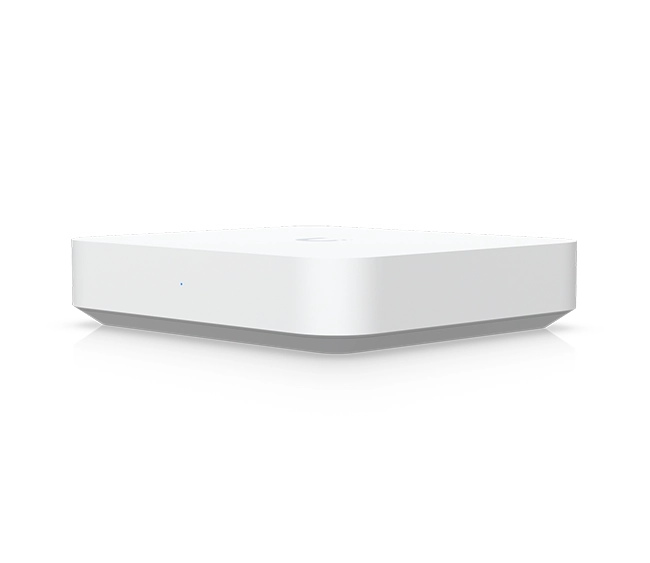

The UniFi Gateway Max (UXG-Max) is a compact, 2.5 GbE next-gen UniFi security router with IDS/IPS, advanced VPN, Layer 7 filtering, and cloud-based management. Ideal for advanced home or business networks needing top-tier throughput and flexibility.
Here are the detailed specifications for the UniFi Gateway Max (UXG‑Max),
🏠 Overview & Hardware
- Form Factor: Compact, desktop polycarbonate chassis
- Dimensions: 141.8 × 127.6 × 30 mm (5.6 × 5 × 1.2 in)
- Weight: 520 g (1.1 lb)
- Processor: Quad-core ARM Cortex‑A53 at 1.5 GHz
- Memory: 2 GB DDR4 RAM

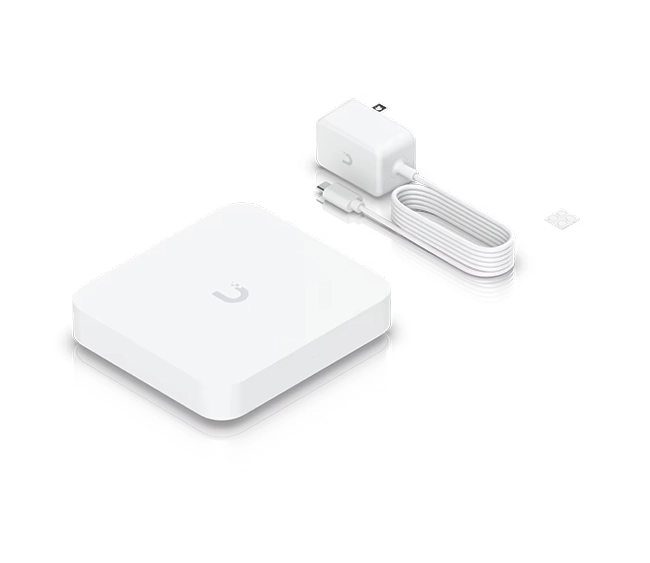

- Power: USB‑C powered (5 V ⎓ 3 A) with adapter included
- Max Power Consumption: ~9.6 W
- ESD/EMP Protection: ±8 kV air, ±4 kV contact
- Certifications: CE, FCC, IC, NDAA compliant
- Operating Temperature: –10 °C to 40 °C; humidity 5–95% non‑condensing
🌐 Networking & Ports

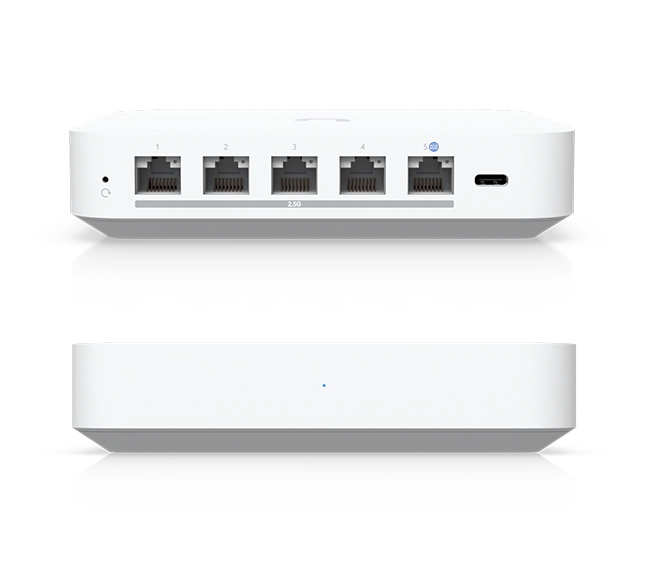

- 1 × 2.5 GbE RJ45 WAN port
- 4 × 2.5 GbE RJ45 LAN ports (one is remappable as WAN)
- MAC Address Table: 2,000 entries
- Built-in 2.5 GbE switch supports full line-rate (~2.35 Gbps tested)
🔐 Security & Routing Features
- Stateful, zone-based firewall with Layer 7 application awareness
- Intrusion Detection/Prevention (IDS/IPS) signatures: 55,000+ (CyberSecure)
- Content, domain, ad, and country filtering
- VoIP & mDNS QoS, advanced NAT
- Multi-WAN load balancing & cloud-enabled SD-WAN (WireGuard, OpenVPN, IPsec, L2TP, Teleport Zero‑Config VPN)
- Dynamic routing (OSPF), DHCP relay, IPv6 support
🚀 Performance Metrics
- IDS/IPS throughput: 2.3 Gbps (IDS/IPS)
- Real-world LAN switching: ~2.35 Gbps
- VPN performance: WireGuard client available; performance depends on firmware
- Some users report WAN upload performance issues (~750–800 Mbps); workarounds include firmware updates or disabling PPPoE/SQM
🔧 Management
- Managed via UniFi Network Controller or UDM/CloudKey—requires external controller
- LEDs: system and Ethernet status
- Reset button only
- Bluetooth: Setup and discovery via UniFi mobile app
✅ Summary Table
| Feature | Specification |
|---|---|
| CPU / RAM | Quad-core A53 @ 1.5 GHz, 2 GB DDR4 |
| Ports | 1×2.5GbE WAN, 4×2.5 GbE LAN (one remappable) |
| IDS/IPS Throughput | 2.3 Gbps |
| Switching Capacity | ~2.35 Gbps tested |
| VPN | WireGuard, OpenVPN, IPsec, L2TP, Teleport |
| Wireless Management | WiFi QoS with UniFi APs |
| Power | USB-C 5 V/3 A, 9.6 W max |
| Size / Weight | 142×128×30 mm, 520 g |
| Enclosure | Polycarbonate, IK04, ESD protected |
| Environment | –10–40 °C, 5–95% RH |
| Certifications | CE, FCC, IC, NDAA |
| Management Style | Controller-managed only |
| Notes | VPN speeds vary; some PPPoE upload bottleneck reported |
| Firmware Requirement | UniFi Network v8.1.113+ |
| Brand | Ubiquiti |
|---|
