Ubiquiti LTU Pro 24 dBi 5 GHz CPE
KSh 21,500 (KSh 24,940 Incl VAT)
- Integrated 24 dBi 5 GHz antenna; outdoor pole-mount design
- Gigabit RJ45 with passive 24 V PoE power
- 600+ Mbps real TCP/IP throughput (900+ Mbps with updated firmware)
- Supports 10–100 MHz channels, 1024‑QAM (upgradable to 4096‑QAM)
- Rugged –40 °C to +60 °C operation; ±24 kV ESD protection
- Managed via Bluetooth UISP App, Web UI, SNMP, SSH
- Heightened RF control: auto power/distance, airView spectrum analysis

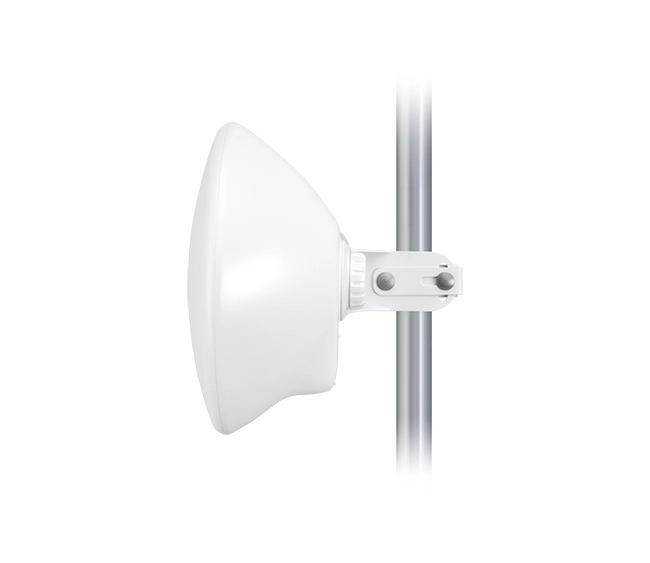

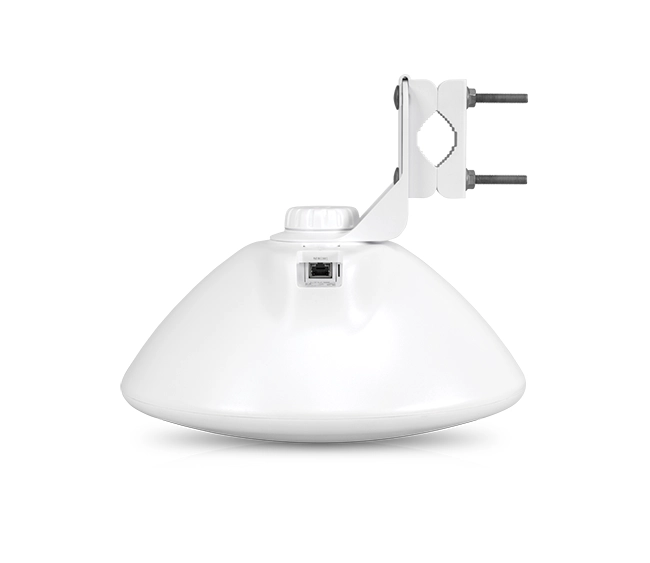

The Ubiquiti LTU Pro 24 dBi 5 GHz CPE is a high-performance 5 GHz CPE designed for long-range Point-to-MultiPoint (PtMP) deployments. It utilizes proprietary LTU technology, offering superior spectral efficiency and performance beyond standard 802.11ac solutions.
Ubiquiti LTU Pro 24 dBi 5 GHz CPE Hardware Specifications
- Antenna: Integrated 24 dBi directional dish antenna
- Antenna Beamwidth: 10° (horizontal and vertical)
- Dimensions: 316.5 × 316.5 × 174.3 mm
- Weight: 1.3 kg (without mount)
- Enclosure: UV-stabilized plastic, outdoor-rated
- Mounting: Pole-mount kit included
Networking & Power
- Ethernet Port: 1 × 10/100/1000 Mbps RJ45 port
- Power Method: Passive PoE (pairs 4, 5+; 7, 8 return)
- Power Supply: 24V, 0.5A Gigabit PoE adapter included
- Power Consumption: Maximum 9 W
- Surge Protection: ±24kV ESD/EMP protection
- Power Input Range: 22–27V DC
Wireless Performance – LTU Pro 24 dBi 5 GHz CPE
- Frequency Range: 4800 – 6200 MHz (frequency ranges vary by country)
- Channel Bandwidths: Configurable between 10 / 20 / 30 / 40 / 50 MHz
(Support for 100 MHz with future firmware) - Max Modulation: 1024-QAM (4096-QAM support planned via firmware)
- Max Throughput: Over 600 Mbps real TCP/IP throughput
(Up to 900+ Mbps with future firmware updates) - Max TX Power: 22 dBm per chain
Environmental & Mechanical
- Operating Temperature: –40°C to +60°C
- Operating Humidity: 10% – 95% non-condensing
- Wind Survivability: 200 km/h
- Wind Loading: 550 N
Software & Management
- Operating Modes: CPE (Point-to-MultiPoint), PTP (Point-to-Point via firmware update)
- Management Interfaces: Web UI, Bluetooth (via UISP mobile app), SNMP, SSH
- Security: WPA2-AES encryption
- Advanced Tools:
- Signal alignment tool
- Spectrum analysis (airView)
- Auto Tx Power and Distance Control
- Uplink/Downlink Ratio Configuration
- Remote firmware upgrades
- Built-in speed test utility
- Watchdog and cable diagnostics
Ubiquiti LTU Pro 24 dBi 5 GHz CPE is a rugged, 24 dBi antenna, 600+ Mbps throughput (900+ Mbps via firmware), wide channel, PoE, and advanced RF tools
| Brand | Ubiquiti |
|---|
