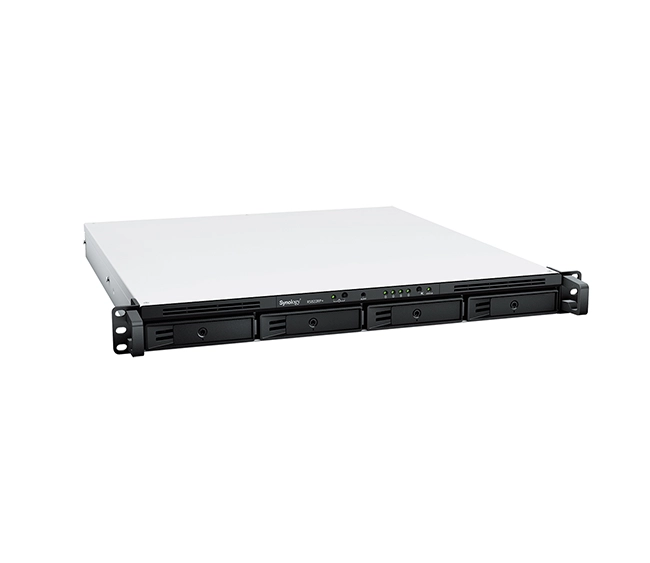

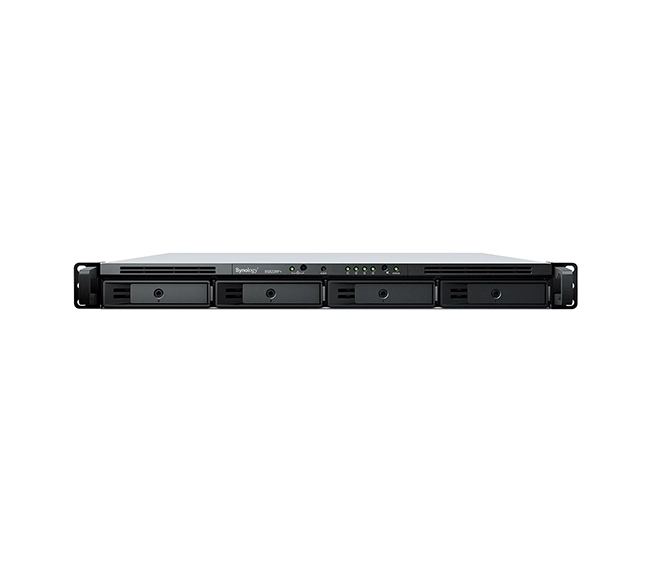

Synology RackStation RS822+ – 1U/4-Bay Rackmount NAS

The Synology RackStation RS822+ – 1U/4-Bay Rackmount NAS is a high-performance 1U rackmount NAS designed for SMBs that need reliable and scalable data management in a compact form factor. Powered by the AMD Ryzen V1500B quad-core processor and 2 GB DDR4 ECC memory (expandable to 32 GB), it delivers consistent performance for file sharing, backup, and virtualization workloads.

With four drive bays, dual Gigabit LAN (expandable to 10GbE), and support for expansion units, the RS822+ provides a cost-effective and secure solution for growing businesses.

---

Processor

• Model: AMD Ryzen Embedded V1500B
• Architecture: 64-bit, quad-core, 8 threads
• Frequency: 2.2 GHz base
• Encryption: AES-NI hardware acceleration

---

Memory

• Installed Memory: 2 GB DDR4 ECC SODIMM
• Maximum Memory: 32 GB (2 × 16 GB)

---

Storage

• Drive Bays: 4 × 3.5″/2.5″ SATA HDD/SSD (hot-swappable)
• Maximum Internal Capacity: ~72 TB (18 TB × 4 drives; varies by RAID type)
• Expansion: Supports 1 × Synology RX418 (adds 4 bays, up to 144 TB total raw capacity)
• RAID Support: SHR, Basic, JBOD, RAID 0, 1, 5, 6, 10
• File Systems:
  • Internal: Btrfs, EXT4
  • External: Btrfs, EXT4, EXT3, FAT, NTFS, HFS+, exFAT

---

Networking

• LAN Ports: 4 × Gigabit Ethernet RJ-45 (Link Aggregation & Failover supported)
• Optional Upgrade: 1 × PCIe 3.0 slot for 10GbE NIC

---

Expansion & Connectivity

• USB Ports: 2 × USB 3.2 Gen 1
• eSATA Ports: 1 × eSATA for RX418 expansion
• PCIe Slot: 1 × PCIe Gen 3.0 ×8 (x4 link)

---

Performance

• Sequential Read: ~2100 MB/s (with SSD cache / link aggregation)
• Sequential Write: ~1070 MB/s
• Encryption: Hardware AES-NI ensures secure and fast encrypted transfers

---

Software & Features

• Operating System: Synology DiskStation Manager (DSM)
• Data Protection: Btrfs snapshots, self-healing file system
• Backup Solutions: Active Backup for Business, Hyper Backup, Snapshot Replication
• Business Tools: Synology Drive, Collaboration Suite, Virtual Machine Manager
• Cloud Integration: Synology C2, Google Drive, Dropbox, Microsoft OneDrive, AWS S3
• Surveillance: Synology Surveillance Station with IP camera support

---

Power & Efficiency

• Power Supply: 100 W
• Power Consumption:
  • ~12 W (HDD hibernation)
  • ~35–40 W (in operation, depending on drives)

---

Physical Specifications

• Form Factor: 1U rackmount
• Dimensions (H × W × D): 44 × 480 × 492 mm
• Weight: ~6.4 kg (without drives)
• Cooling: Dual fans with smart control

---

Environmental Conditions

• Operating Temperature: 0°C – 40°C
• Humidity: 5% – 95% RH (non-condensing)

---

Warranty & Support

• Warranty: 3 Years (extendable to 5 years in select regions)

---

Typical Use Cases

• Centralized business storage with scalability
• Data backup & recovery for SMBs
• Virtualization storage with VMware/Hyper-V support
• Surveillance video management
• Hybrid cloud integration for business continuity

---

Key Features

• Compact 1U rackmount NAS with 4 drive bays
• AMD Ryzen V1500B quad-core CPU with AES-NI encryption
• 2 GB DDR4 ECC memory (expandable to 32 GB)
• 4 × 1GbE LAN with PCIe slot for 10GbE upgrades
• Expandable storage with RX418 expansion unit

---

Meta Description

Synology RackStation RS822+ – 1U/4-Bay Rackmount NAS with AMD Ryzen V1500B, 2 GB DDR4 ECC (expandable to 32 GB), 4 Gigabit LAN, PCIe 10GbE upgrade, and expansion support up to 144 TB. Perfect for SMBs.
