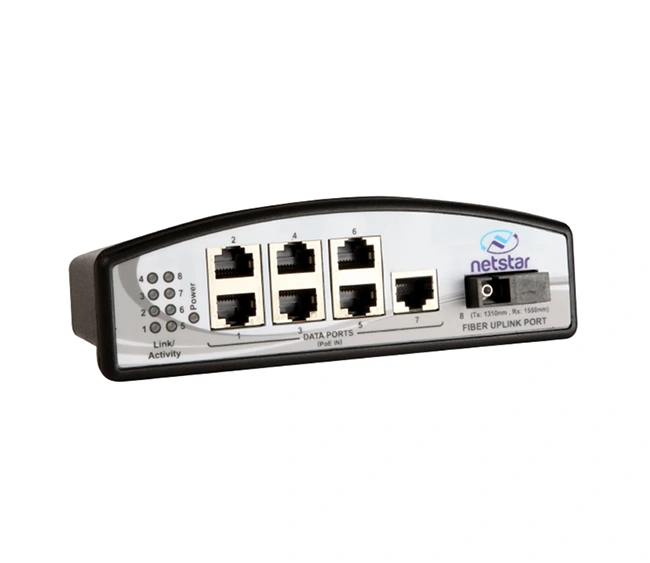

June 11, 2025Netstar NS‑RP071F‑OD Reverse PoE Switch with Fiber Uplink
KSh 45,000 (KSh 52,200 Incl VAT)
- 7 × 10/100 Mbps Reverse PoE Ethernet Ports
- 1 × 10/100 Mbps Single-Fiber SC Uplink Port /13T: 1310 nm TX, 1550 nm RX /15T: 1550 nm TX, 1310 nm RX
- Outdoor-Ready Weatherproof Enclosure
- Powered via RPoE (24V DC) – no external AC needed
- Port Isolation for Enhanced Security
- Surge, Over-Voltage & Over-Current Protection
- Cascadable (Up to 4 Units)
- Ideal for FTTH/ISP Outdoor Last-Mile Deployments
SKU: NS-8G-RP-1-1-1-1-1-1
Categories: Netstar, Networking Infrastructure, Switches
Tags: networking POE switches
Here are the detailed specifications for the Netstar NS‑RP071F‑OD outdoor reverse‑PoE switch with 7× Ethernet and 1× fiber uplink port:
🔌 Ports & Power
- 7 × 10/100 Mbps RJ‑45 Reverse‑PoE (RPoE) ports – receive power & data via pins 4/5 (+) and 7/8 (–) (netstar.in)
- 1 × 10/100 Mbps fiber uplink (SC connector) – single-fiber port, available in two models:
- 13T: Tx 1310 nm → Rx 1550 nm
- 15T: Tx 1550 nm → Rx 1310 nm
- Power Input: Remote power from PoE injector (24 V DC, 0.5–1 A)
⚡ Management & Protections
- Port-based isolation – downlink ports isolated from each other; uplink port connects to all
- Surge, over-voltage & over-current protection on all ports
- Cascadable design – can chain up to 4 switches (1 main + 3 satellites)
- Auto‑negotiation (10/100 Mbps, full/half duplex)
🛠️ Mechanical & Environment
- Casing: Rugged outdoor-grade weatherproof housing
- Dimensions: 185 × 149 × 55 mm
- Weight: ≈ 0.4 kg (400 g)
- Operating Temp: 0 °C to 50 °C
- Storage Temp: –30 °C to 60 °C
- Humidity: 20–95% non-condensing
🌐 Use Cases & Highlights
- Ideal for WISP/ISP last-mile deployment where fiber feeds an outdoor switch powering Ethernet CPE devices
- Single-fiber uplink shares connectivity among multiple clients—no need for individual fiber media converters
- Remote-powered via indoor PoE injector—eliminates need for rooftop AC power or UPS
✅ Quick Summary
| Feature | Specification |
|---|---|
| Downlink | 7 × 10/100 Mbps RPoE ports |
| Uplink | 1 × 10/100 Mbps SC fiber (choose 13T/15T) |
| Power Input | Remote PoE (24 V, 0.5–1 A) |
| Power Budget | Determined by upstream injector |
| Protections | Surge, OVP, OCP; port isolation, cascading |
| Housing | Outdoor, weatherproof |
| Size & Weight | 185×149×55 mm; ~400 g |
| Temp / Humidity | 0–50 °C / 20–95% RH |
| Ideal For | Outdoor FTTH, CPE power, fiber uplink sharing |
| Brand | Netstar |
|---|
