MikroTik L22UGS‑5HaxD2HaxD‑15S – mANTBox ax 15s
KSh 42,500 (KSh 49,300 Incl VAT)
- Dual-band 802.11ax (Wi-Fi 6) with 2×2 MIMO
- Integrated 15 dBi (5 GHz) and 12 dBi (2.4 GHz) sector antennas
- 1x Gigabit PoE-in port and 1x 2.5G-capable SFP cage
- Dual-core ARM processor and 256 MB RAM
- USB 2.0 expansion port
- Rugged outdoor housing with wide temperature tolerance
- WPA3 support and modern wireless efficiency features
- Fully passive cooling for silent operation
- Designed for long-range point-to-multipoint deployments
The MikroTik L22UGS‑5HaxD2HaxD‑15S, also known as mANTBox ax 15s, is a high-performance outdoor wireless router featuring dual-band Wi‑Fi 6, a built-in sector antenna, and rugged IP-rated housing. It’s ideal for point-to-multipoint base stations, wireless ISPs, and demanding outdoor deployments.
General & Hardware
- Product Code: L22UGS-5HaxD2HaxD-15S
- Architecture: ARM 64-bit
- CPU: Dual-core Qualcomm IPQ-5010 @ 800 MHz
- RAM: 256 MB DDR3L
- Storage: 128 MB NAND
- Operating System: RouterOS v7 with License Level 4
- MTBF: Approx. 200,000 hours at 25°C
- Operating Temperature: –40°C to +70°C
- Cooling: Passive (fanless)
- Enclosure: Outdoor-grade, weatherproof design
Wireless
- Wireless Standards: 802.11a/b/g/n/ac/ax (Wi-Fi 6)
- 2.4 GHz Band: Dual-chain, up to 574 Mbps, 12 dBi sector antenna
- 5 GHz Band: Dual-chain, up to 2400 Mbps, 15 dBi sector antenna
- MIMO: 2×2 on both bands
- Wi-Fi Security: WPA3, WPA2, WPA, MFP (Management Frame Protection)
- Features: Target Wake Time, MU-MIMO, Beamforming
Interfaces
- Ethernet: 1x 10/100/1000 Mbps Gigabit Ethernet port with PoE-in
- SFP: 1x 1.25G SFP cage (supports up to 2.5 Gbps)
- USB: 1x USB Type-A 2.0 (up to 1.5 A max current)
Power
- Power Options: DC jack (12–28 V) and Passive PoE-in (18–28 V)
- Max Power Consumption: Up to 21 W
- Typical Power Usage: 11 W
Monitoring & Extra Features
- Sensors: PCB temperature and voltage monitoring
- Beeper: Integrated beeper for device alerts
Mounting & Accessories

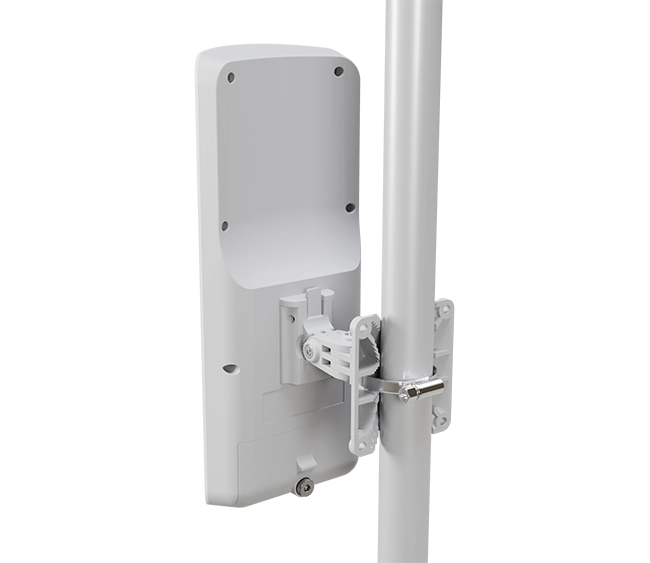

- Mounting: Sector pole or wall-mount ready (quickMOUNT Pro included)
- Included Accessories: Gigabit PoE injector, 24 V 1.2 A power adapter, mounting hardware
Meta Description
MikroTik L22UGS‑5HaxD2HaxD‑15S mANTBox ax 15s is a rugged outdoor Wi‑Fi 6 router with built-in sector antennas, dual-band 2×2 MIMO, 1G Ethernet, 2.5G SFP, and RouterOS v7—perfect for long-range wireless base station deployments.
