MikroTik L23UGSR‑5HaxD2HaxD‑NM (NetMetal ax) – Outdoor Wi‑Fi 6
KSh 42,500 (KSh 49,300 Incl VAT)
- Dual-band Wi-Fi 6 with 2×2 MIMO, delivering strong outdoor speeds
- Ethernet + 2.5 Gbps SFP + USB + miniPCIe for flexible wired/fiber setups
- 4 external antenna ports for long-range or directional links
- Dual power inputs and passive PoE with low power use
- Rugged IP 66 housing and wide temperature range for harsh environments
- Sensors and beeper for health monitoring and alerts
- Expandable via LTE/LoRa modules using miniPCIe + NanoSIM
- RouterOS v7 (L4) for complete routing and network control

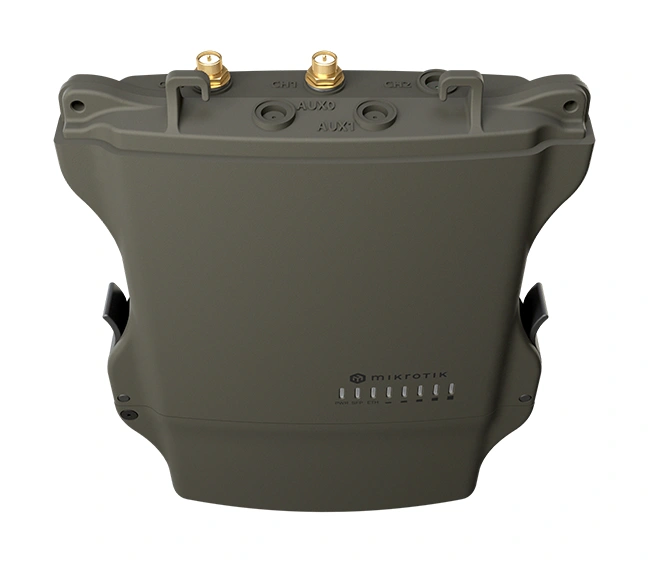

The MikroTik L23UGSR‑5HaxD2HaxD‑NM (NetMetal ax) is an industrial-grade outdoor Wi‑Fi 6 routerboard designed for custom CPEs, access points, and long-range wireless deployments. With dual-band Wi‑Fi 6, flexible wired interfaces, modular antenna connectors, and a durable IP‑66 enclosure, it’s a powerful solution for demanding outdoor networking.
General & Hardware
- Model: L23UGSR‑5HaxD2HaxD‑NM
- CPU: Dual-core Qualcomm IPQ‑5010 @ 800 MHz (ARM)
- RAM: 256 MB DDR3L
- Storage: 128 MB NAND
- OS: RouterOS v7 (License Level 4)
- MTBF: ~200 000 hours @25 °C
- Operating Range: –40 °C to +70 °C (weatherproof IP 66)
Wireless
- 2.4 GHz (802.11b/g/n/ax): Dual-chain, up to 574 Mbps
- 5 GHz (802.11a/n/ac/ax): Dual-chain, up to 1200–2400 Mbps
- Antenna Connectors: 4× MMCX (RP‑SMA on NM model) for external antennas, with potential link distances up to 30 km depending on antenna
Interfaces & Expansion
- Ethernet: 1× Gigabit RJ45 with passive PoE‑in (18–28 V)
- Fiber: 1× 2.5 Gbps SFP port (fiber backhaul)
- USB: 1× USB‑A 2.0 (max 1.5 A)
- miniPCIe: Slot available for modules (LTE, LoRa, etc.) + NanoSIM slot
Power & Thermal
- Power Inputs: 1× DC‑jack (12–28 V) and 1× Passive PoE‑in (18–28 V)
- Power Consumption: ~12 W idle, up to 25 W with attachments
- Cooling: Fully passive (fanless) design
Sensors & Extras
- Onboard Monitoring: Voltage and PCB temperature sensors
- Alert Beeper: For warnings or visual notifications
Build & Mounting
- Enclosure: IP 66-rated, single-hand openable outdoor casing
- Mount Options: Pole/tower clamp and DIN-rail mounting included
Meta Description
MikroTik L23UGSR‑5HaxD2HaxD‑NM (NetMetal ax) is a rugged IP 66 outdoor Wi‑Fi 6 routerboard featuring dual-core CPU, dual-band 802.11ax, Gigabit Ethernet, 2.5 Gbps SFP, USB, miniPCIe + NanoSIM slot, dual power inputs, and external antenna support—perfect for custom CPE/AP and long-range wireless networks.
| Brand | MikroTik |
|---|
