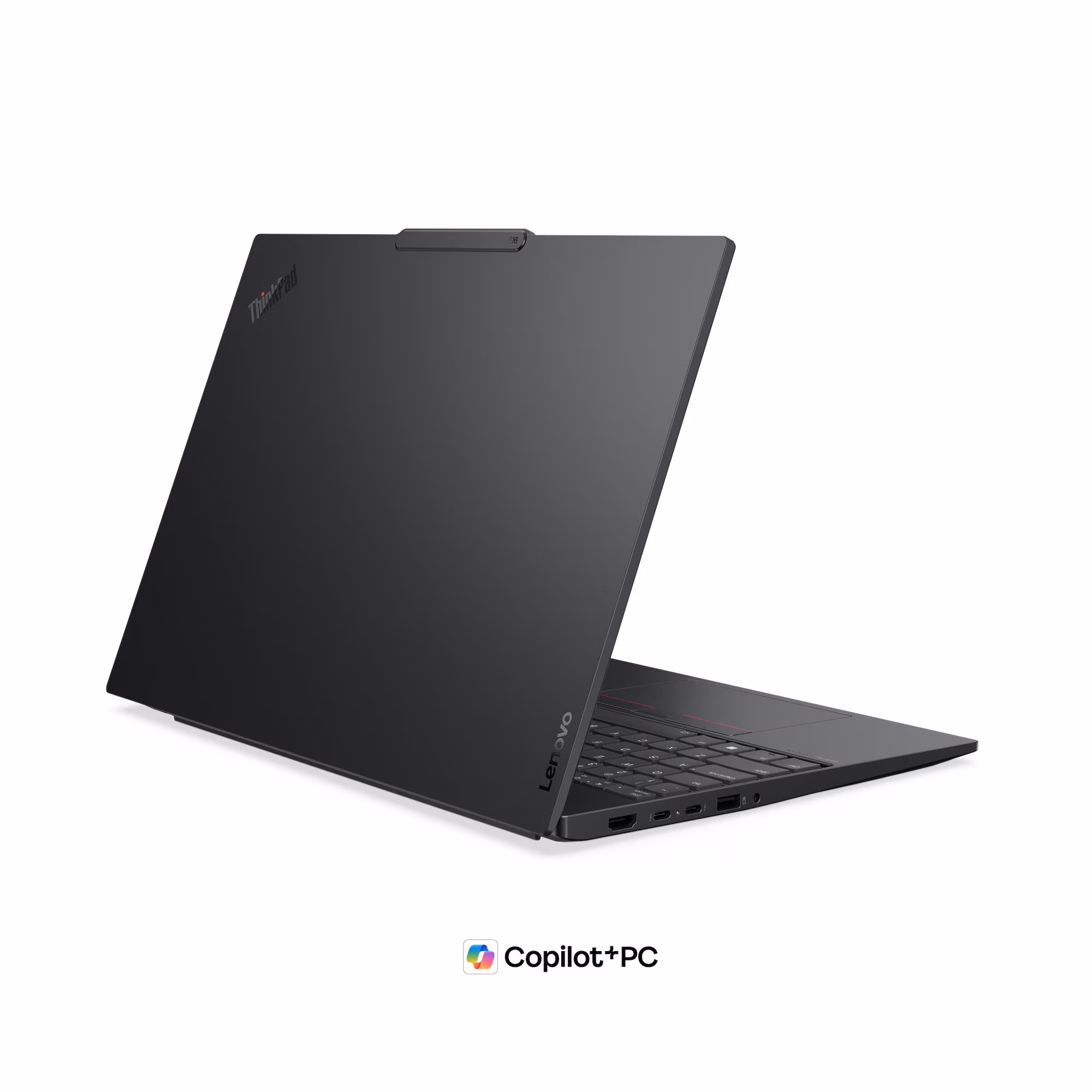

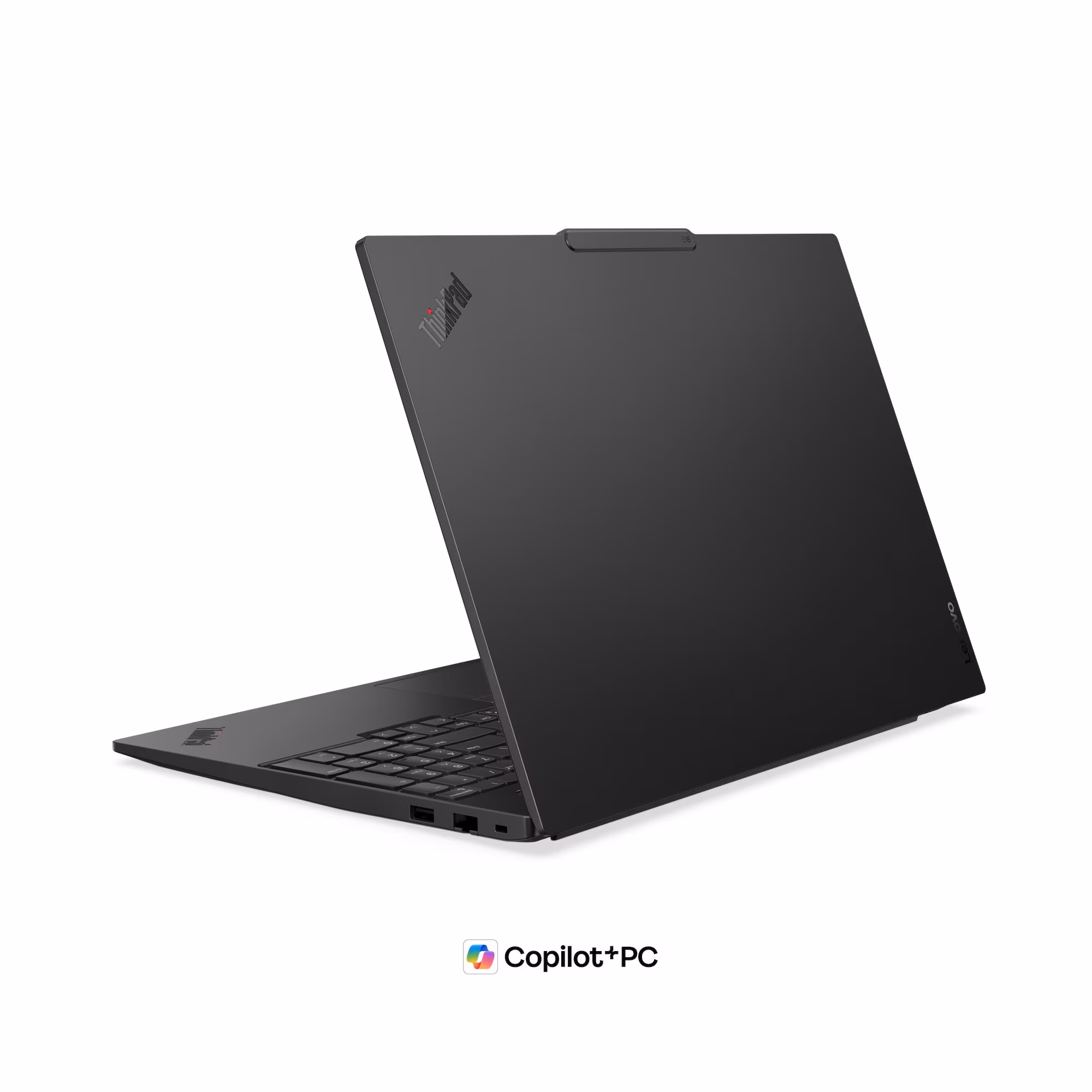

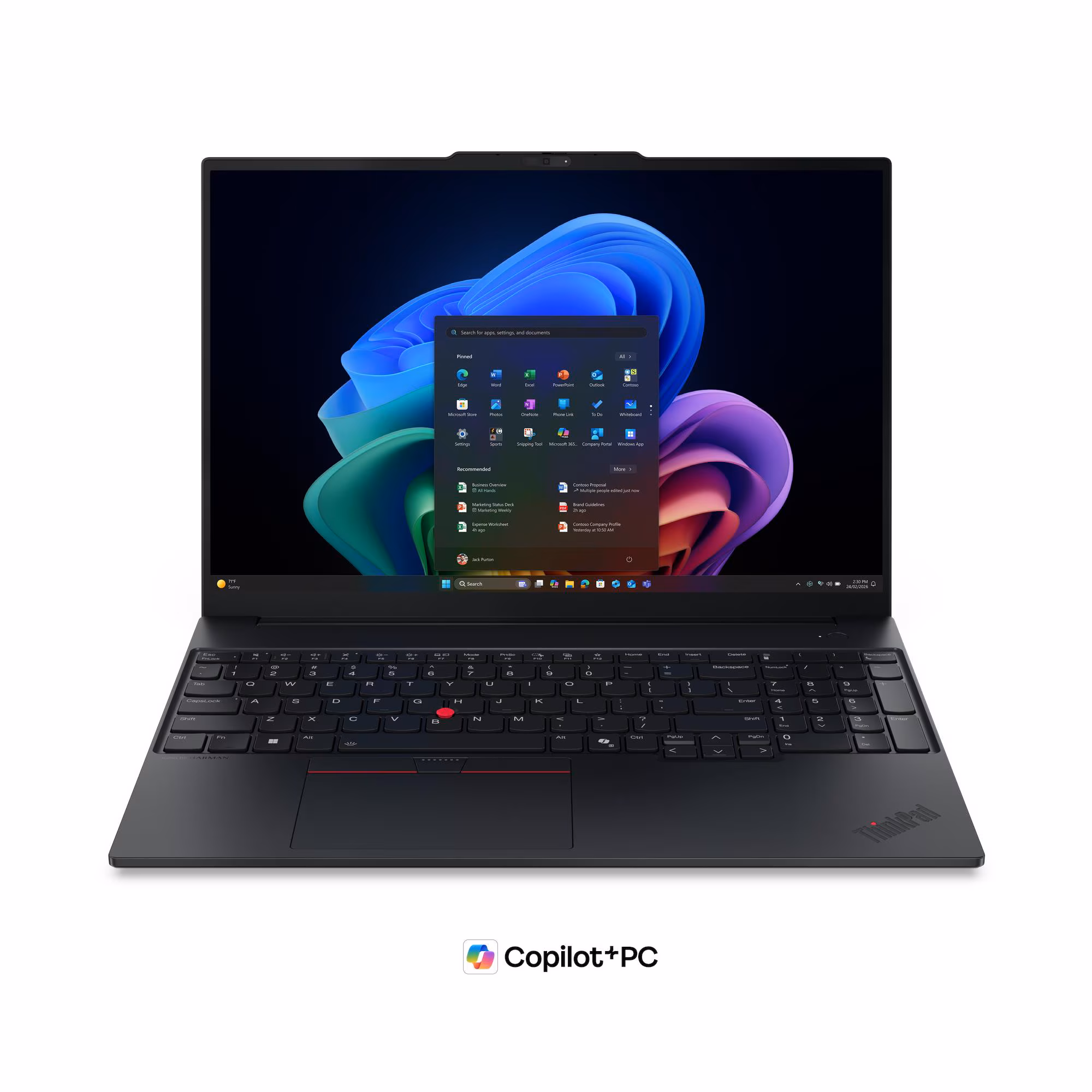

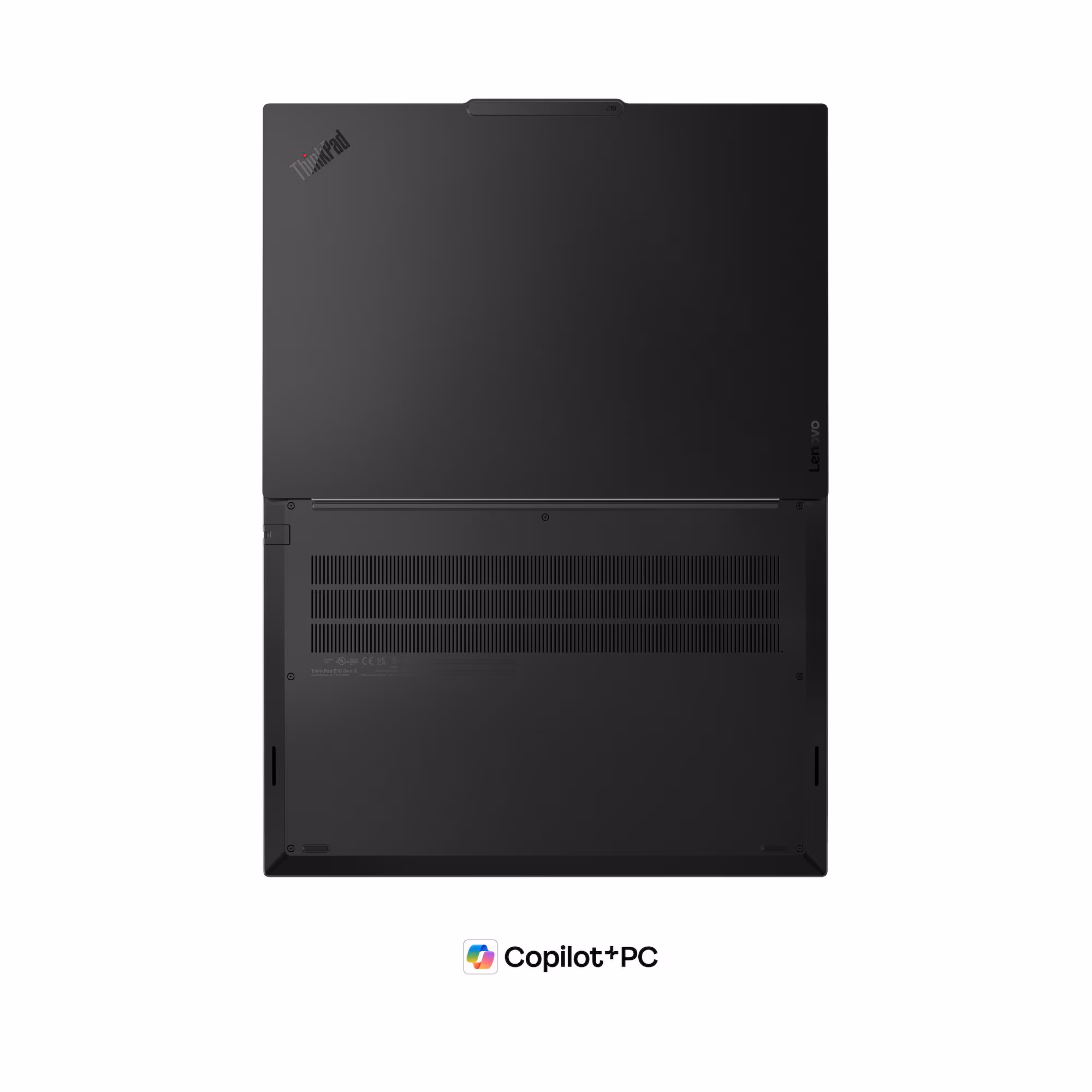

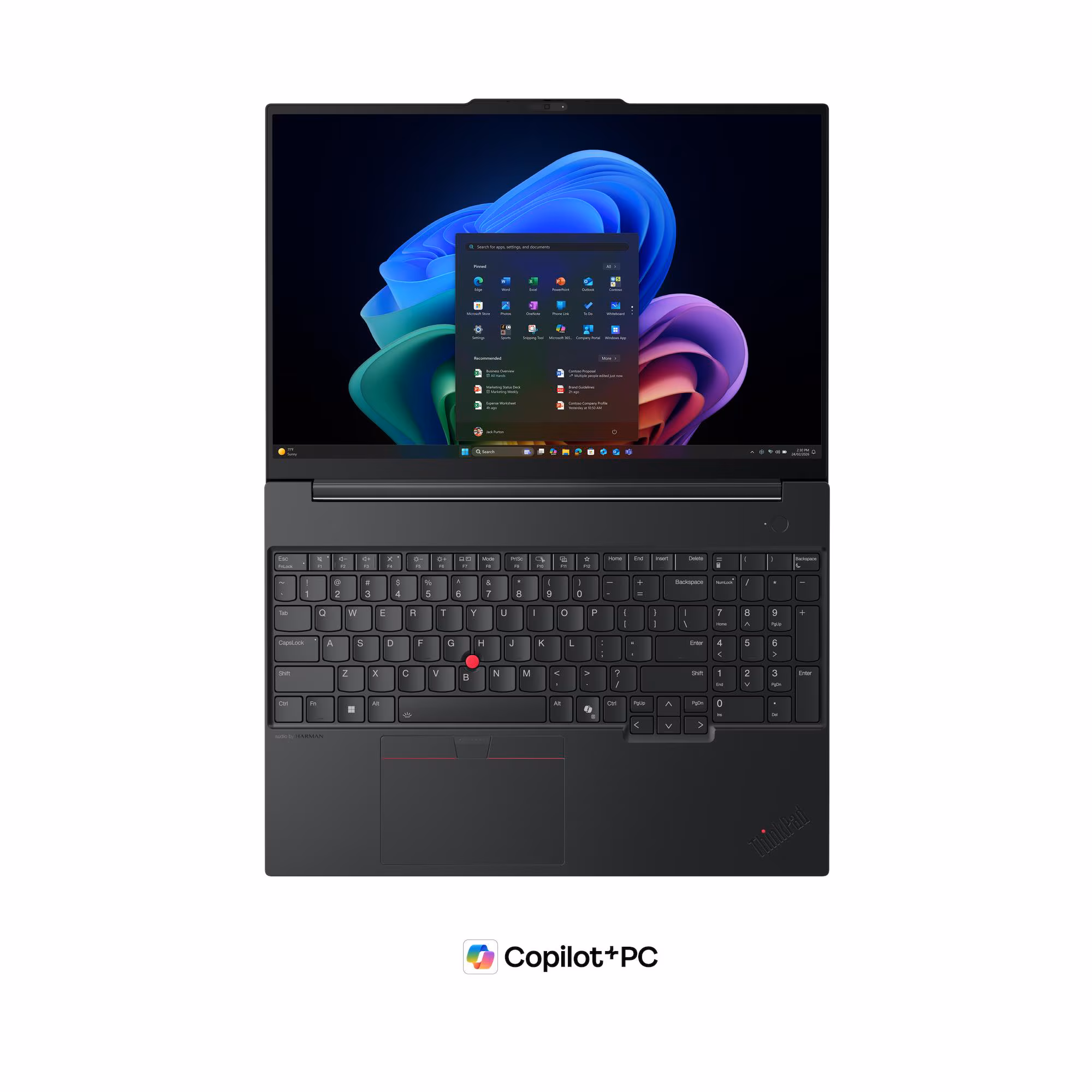

Lenovo ThinkPad E16 Gen 3 Intel Core Ultra 7 256V 22AY001GUE

Datasheet

Short Description

The Lenovo ThinkPad E16 Gen 3 Laptop (22AY001GUE) is an AI-powered Copilot+ PC designed for dynamic professionals who demand performance and reliability in a large-screen format. Featuring a generous 16-inch WUXGA anti-glare display, the flagship Intel Core Ultra 7 256V processor with integrated Intel AI Boost (up to 47 TOPS) , 16GB of ultra-fast LPDDR5x-8533 memory, and the legendary ThinkPad durability with MIL-STD-810H certification, this powerful 16-inch notebook delivers exceptional productivity, enterprise-grade security, and immersive multimedia experiences for modern business environments .

---

Key Sections

Spacious 16-Inch WUXGA Display with Anti-Glare Technology

The ThinkPad E16 Gen 3 features a generous 16-inch WUXGA (1920 x 1200) IPS anti-glare display with a modern 16:10 aspect ratio and 300 nits brightness . The expansive screen provides ample workspace for multitasking, spreadsheets, and document editing, while the anti-glare coating reduces reflections for comfortable viewing in various lighting conditions .

Consequently, reviewing complex data, coding applications, and editing documents proceeds with crisp visual clarity and reduced eye strain during extended work sessions. The TÜV Low Blue Light certification helps prevent eye fatigue, making it ideal for long workdays .

Flagship Intel Core Ultra Processing with AI Acceleration

Under the hood, the laptop is powered by the Intel Core Ultra 7 256V flagship processor from the Series 2 “Lunar Lake” family . It features 8 cores (4 Performance cores and 4 Low Power Efficient cores) and 8 threads, with P-cores boosting up to 4.8 GHz and a 12MB Intel Smart Cache .

The processor integrates Intel AI Boost with up to 47 TOPS of NPU performance, delivering accelerated AI-enhanced workflows and intelligent performance optimization . As a Copilot+ PC, the ThinkPad E16 Gen 3 integrates advanced AI capabilities to improve task management through real-time suggestions and automation of routine processes .

The integrated Intel Arc Graphics 140V delivers exceptional visual performance for content creation, multimedia, and demanding business applications .

Fast LPDDR5x Memory & PCIe Gen4 Storage

The system is equipped with 16GB of soldered LPDDR5x-8533 Memory on Package (MoP) memory, providing exceptional bandwidth for smooth multitasking and application responsiveness . Please note that the memory is soldered to the processor package and is not upgradable .

The 512GB PCIe 4.0×4 NVMe SSD with Opal 2.0 encryption delivers rapid boot times, quick application loading, and fast file access . The storage supports up to a 1TB M.2 2242 SSD upgrade .

Advanced Thunderbolt 4 Connectivity & Comprehensive Port Selection

The ThinkPad E16 Gen 3 offers exceptional connectivity options for business professionals :

• 2x Thunderbolt 4 / USB4 40Gbps (USB PD 45-65W, DisplayPort 2.1)

• 1x USB-A (USB 5Gbps / USB 3.2 Gen 1)

• 1x USB-A (USB 10Gbps / USB 3.2 Gen 2) with Always On

• 1x HDMI 2.1 (Supports up to 4K/60Hz)

• 1x Headphone / microphone combo jack (3.5mm)

• 1x Ethernet (RJ-45) Gigabit

• 1x Kensington Nano Security Slot

The laptop features Intel Wi-Fi 6E (AX211 2×2) and Bluetooth 5.3 for fast, reliable wireless connectivity .

Premium ThinkPad Durability & Business Features

Designed for active business mobility, the laptop features the legendary ThinkPad build quality with MIL-STD-810H military-grade durability . The chassis features an aluminium top and bottom cover with 50% recycled content, offering a premium feel and durability while supporting sustainability .

The UK English backlit keyboard includes a full-sized numeric keypad for efficient data entry and comfortable typing . The 180-degree hinge design allows for flexible viewing angles and collaborative work .

Comprehensive Security Features

To safeguard critical business data, the ThinkPad E16 Gen 3 includes comprehensive ThinkShield security controls . It is equipped with an FHD 1080p + IR Hybrid camera featuring a physical privacy shutter and Windows Hello facial recognition .

The integrated match-on-chip fingerprint reader (Y-FPR) is built into the power button for secure, convenient access . Discrete TPM 2.0 encrypts critical data for enterprise-grade security .

Immersive Audio & Long-Lasting Battery

The ThinkPad E16 Gen 3 features stereo speakers (2W x2) optimized with Dolby Atmos and Harman Kardon audio, delivering rich, clear sound for virtual meetings and multimedia content .

The 3-cell 48Wh battery with Rapid Charge technology delivers extended mobility and up to 80% charge in just 60 minutes with the 65W USB-C power adapter . Customer-replaceable units (CRUs) including the battery and speaker ensure minimal downtime and long-term durability .

---

Core Features

• The 16-inch WUXGA IPS anti-glare display provides ample workspace and crisp visuals for enhanced productivity.

• The flagship Intel Core Ultra 7 256V processor with Intel AI Boost (47 TOPS) accelerates AI-powered business computing .

• 16GB LPDDR5x-8533 MoP memory guarantees exceptional application response times and fluid multitasking .

• High-speed 512GB PCIe 4.0 NVMe SSD with Opal 2.0 encryption enables rapid boot times and quick file access.

• The FHD 1080p + IR Hybrid webcam with physical privacy shutter, fingerprint reader, and Windows Hello delivers comprehensive biometric authentication and visual security.

• Thunderbolt 4 connectivity enables 40Gbps data transfers and multi-display capabilities.

• Wi-Fi 6E and Bluetooth 5.3 provide fast, reliable wireless connectivity .

---

Performance & Utility Features

• The Intel Core Ultra 7 256V utilizes advanced Lunar Lake architecture and integrated AI Boost (47 TOPS) for optimal power efficiency and computing speed .

• Intel Arc Graphics 140V delivers exceptional visual performance for content creation and multimedia .

• Dolby Atmos and Harman Kardon stereo speakers ensure clear, immersive audio during virtual meetings and entertainment .

• The 180-degree hinge design and MIL-STD-810H durability ensure reliability in demanding work environments .

• The 48Wh battery with Rapid Charge technology delivers extended mobility and fast recharging .

---

Design, Build & Sustainability

• The ThinkPad E16 Gen 3 chassis meets MIL-STD-810H military-grade durability standards .

• The UK backlit keyboard with numeric keypad ensures comfortable, efficient data entry in low-light environments .

• The physical webcam privacy shutter grants immediate visual security protection.

• The aluminium top and bottom covers with 50% recycled content offer a premium feel and durability .

• Constructed with 90% post-consumer content (PCC) recycled plastic in the speaker enclosure and battery .

• ENERGY STAR 9.0 certified, EPEAT Gold registered, and TCO 10.0 certified for environmental sustainability .

• The included Topload Case provides convenient protection and portability.

---

Technical Specifications Summary

• Model / Part Number: Lenovo ThinkPad E16 Gen 3 (22AY001GUE)

• Processor: Intel Core Ultra 7 256V (8 Cores: 4P + 4LPE, Up to 4.8 GHz Max Boost, 12MB Cache)

• AI PC Category: Copilot+ PC

• Graphics: Integrated Intel Arc Graphics 140V

• NPU: Intel AI Boost, up to 47 TOPS

• Chipset: Intel SoC Platform

• Memory: 16 GB Soldered LPDDR5x-8533 MoP Memory (Not Upgradable)

• Storage: 512 GB SSD M.2 2242 PCIe 4.0×4 NVMe Opal 2.0

• Display: 16-inch WUXGA (1920 x 1200) IPS Anti-Glare, 300 nits, 16:10 Aspect Ratio, 60Hz, 45% NTSC

• Operating System: No OS (FreeDOS)

• Optical Drive: None

• Camera: FHD 1080p + IR Hybrid with Physical Privacy Shutter

• Wireless Connectivity: Intel Wi-Fi 6E (AX211 2×2) and Bluetooth 5.3

• Ethernet: Gigabit Ethernet (RJ-45)

• Security Features: Match-on-Chip Touch Fingerprint Reader (Y-FPR), IR Facial Recognition, Web Camera Privacy Shutter, Discrete TPM 2.0, Kensington Nano Security Slot

• Keyboard: UK English Backlit Keyboard with Numeric Keypad

• Battery Type: 3-Cell 48Wh Battery (CRU – Customer Replaceable Unit) with Rapid Charge

• Power Supply: 65W USB-C Power Adapter (3PIN-UK)

• Dimensions (W x D x H): 356 x 249 x 17.05 mm

• Weight: Starting at 1.61 kg

• Color: Eclipse Black (Aluminium Top & Bottom)

• Warranty: 1 Year Carry-in + 2 Year Carry-in-HB
