Lenovo IdeaCentre AIO 24IRH9 Intel Core i5 13420H F0HN00FHUE

Datasheet

Short Description

The Lenovo IdeaCentre AIO 24IRH9 All-in-One Desktop (F0HN00FHUE) combines powerful performance, stunning visuals, and versatile connectivity in a sleek, space-saving design . Featuring a 23.8-inch Full HD touch display, the 13th Gen Intel Core i5-13420H processor, 8GB of high-speed DDR5 5200MHz memory, a 512GB PCIe Gen4 NVMe SSD, and immersive HARMAN audio, this all-in-one is perfect for home offices, entertainment, and everyday productivity.

Key Sections

Stunning 23.8-Inch FHD Touch Display with Edge-to-Edge Design

The IdeaCentre AIO 24IRH9 features a 23.8-inch Full HD (1920 x 1080) IPS touchscreen with anti-glare technology . The 99% sRGB color gamut ensures vibrant, accurate colors for work and entertainment . The 100Hz refresh rate delivers smooth visuals, making it ideal for everyday computing and multimedia consumption . The three-side borderless design in Luna Grey offers a premium, modern aesthetic, while the touch functionality adds intuitive interaction for creative tasks and presentations.

High-Performance Intel Core i5 Processing

Under the hood, the all-in-one is powered by the 13th Gen Intel Core i5-13420H processor, featuring 8 cores (4 Performance cores and 4 Efficient cores) and 12 threads with a max turbo frequency of 4.60 GHz and a 12MB Intel Smart Cache . Built on the Intel 7 process with a base power of 45W (up to 115W max turbo power), this processor delivers exceptional multitasking capabilities for demanding applications. Thread Director technology ensures intelligent allocation of workloads across performance and efficient cores, optimizing performance and power efficiency.

Fast Memory & PCIe Gen4 Storage

The IdeaCentre AIO 24IRH9 is equipped with 8GB of high-speed DDR5 5200MHz memory, providing excellent bandwidth for smooth multitasking . The system features two DDR5 SO-DIMM slots with dual-channel support, allowing expansion up to 24GB . The 512GB PCIe Gen4 NVMe SSD delivers rapid boot times, quick application loading, and fast file access.

Immersive Audio & Webcam Experience

The IdeaCentre AIO 24IRH9 features 3Wx2 Harman Kardon stereo speakers, delivering immersive audio for movies, music, and video calls . A 5.0MP camera with electronic privacy shutter and dual microphones ensures crisp, clear video conferencing for work or connecting with family and friends.

Comprehensive Connectivity & Port Selection

The AIO offers extensive connectivity for versatile workspaces:

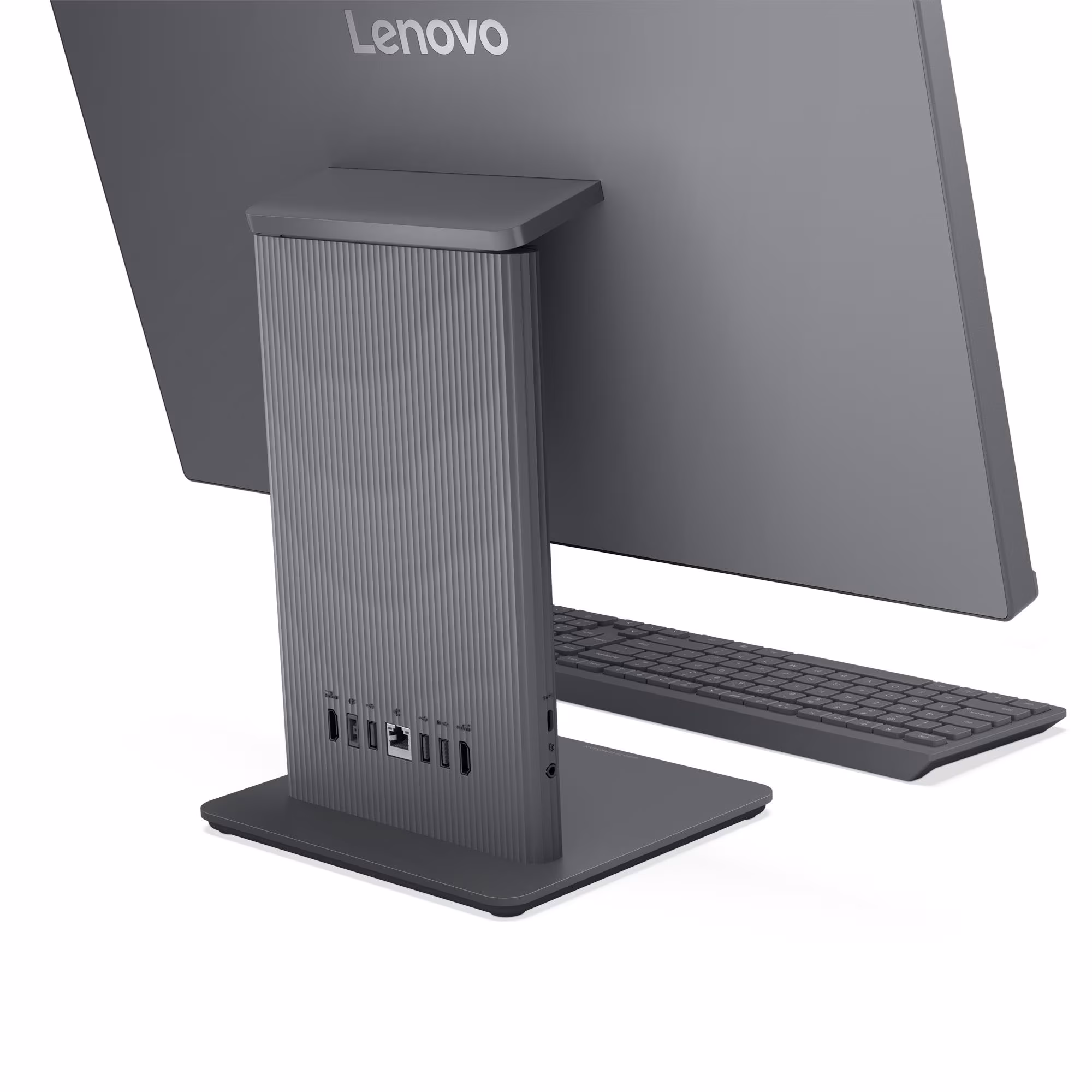

Rear Ports:

• 1x USB-A (USB 10Gbps / USB 3.2 Gen 2)

• 2x USB-A (Hi-Speed USB / USB 2.0)

• 1x HDMI-in 1.4

• 1x HDMI-out 2.1 TMDS

• 1x Ethernet (RJ-45)

Left Ports:

• 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), data transfer only

• 1x Headphone / microphone combo jack (3.5mm)

The HDMI-in port allows the AIO to serve as a standalone display for other devices, while HDMI-out enables connection to a secondary monitor or projector .

Space-Saving All-in-One Design

With a compact footprint of 540 x 192 x 431 mm and weighing just 6.0 kg, the IdeaCentre AIO 24IRH9 saves valuable desk space compared to traditional towers . The included wireless keyboard and mouse ensure a clutter-free workspace, while the 90W 89% power adapter provides efficient energy delivery. The 1-year carry-in warranty provides reliable coverage for your investment.

Core Features

• The 23.8-inch FHD IPS touch display delivers vibrant visuals and intuitive interaction for enhanced productivity and entertainment.

• The 13th Gen Intel Core i5-13420H processor (8 cores, up to 4.60 GHz) accelerates multitasking and performance.

• 8GB DDR5 5200MHz memory with expansion capability up to 24GB ensures smooth application performance.

• 512GB PCIe Gen4 NVMe SSD storage enables rapid boot times and quick file access.

• 3Wx2 HARMAN stereo speakers deliver immersive audio for movies, music, and video calls.

• HDMI-in and HDMI-out ports provide versatile display sharing and multi-monitor setup capabilities.

• Integrated 5MP webcam with privacy shutter for secure video conferencing.

Performance & Utility Features

• The Intel Core i5-13420H processor features 4 Performance cores and 4 Efficient cores with Intel Thread Director for intelligent performance optimization .

• Integrated Intel UHD Graphics (48 execution units) provides crisp visuals and supports up to 4 displays .

• Wi-Fi 6 and Bluetooth 5.2 deliver fast, reliable wireless connectivity .

• Windows 11 Home provides a user-friendly experience with enhanced security features and productivity tools .

• The AIO doubles as a monitor for laptops, gaming consoles, and other devices via HDMI-in .

Design, Build & Sustainability

• The Luna Grey finish with a 3-side borderless design offers a premium modern aesthetic for any workspace .

• The 23.8-inch FHD touch display features anti-glare technology and hardware low blue light for comfortable viewing .

• HARMAN stereo speakers with Dolby Audio deliver high-quality sound for immersive entertainment and video calls.

• Energy-efficient design certified for sustainability.

Technical Specifications Summary

• Model / Part Number: Lenovo IdeaCentre AIO 24IRH9 (F0HN00FHUE)

• Processor: Intel Core i5-13420H (8 Cores: 4P + 4E, Up to 4.60 GHz Max Turbo, 12MB Intel Smart Cache)

• Graphics: Integrated Intel UHD Graphics for 13th Gen Intel Processors (48 Execution Units)

• Chipset: Intel SoC Platform

• Memory: 8 GB DDR5 5200MHz RAM (Upgradable to 24GB, 2x SO-DIMM Slots)

• Storage: 512 GB SSD M.2 2280 PCIe 4.0×4 NVMe

• Display: 23.8-inch FHD (1920 x 1080) IPS Touch, Anti-Glare, 250 nits, 99% sRGB, 100Hz Refresh Rate, 3-Side Borderless

• Operating System: Windows 11 Home

• Optical Drive: None

• Camera: 5.0MP Camera with Electronic Privacy Shutter and Dual Microphones

• Wireless Connectivity: Wi-Fi 6 (802.11ax 2×2) and Bluetooth 5.2

• Ethernet: Integrated 100/1000M

• Audio: 3Wx2 HARMAN Stereo Speakers, High Definition Audio

• Power Supply: 90W 89% Efficiency Adapter

• Dimensions (WxDxH): 540 x 192 x 431 mm

• Weight: 6.0 kg

• Color: Luna Grey

• Accessories: Wireless EOS Keyboard (Luna Grey), Wireless EOS Mouse (Luna Grey)

• Security: Firmware TPM 2.0 Integrated in SoC

• Ports:

  • Rear: 1x USB-A (10Gbps / USB 3.2 Gen 2), 2x USB-A (Hi-Speed USB / USB 2.0), 1x HDMI-in 1.4, 1x HDMI-out 2.1 TMDS, 1x Ethernet (RJ-45), 1x Power Connector

  • Left: 1x USB-C (10Gbps / USB 3.2 Gen 2, Data Transfer Only), 1x Headphone/Microphone Combo Jack (3.5mm)

• Warranty: 1 Year Carry-in
