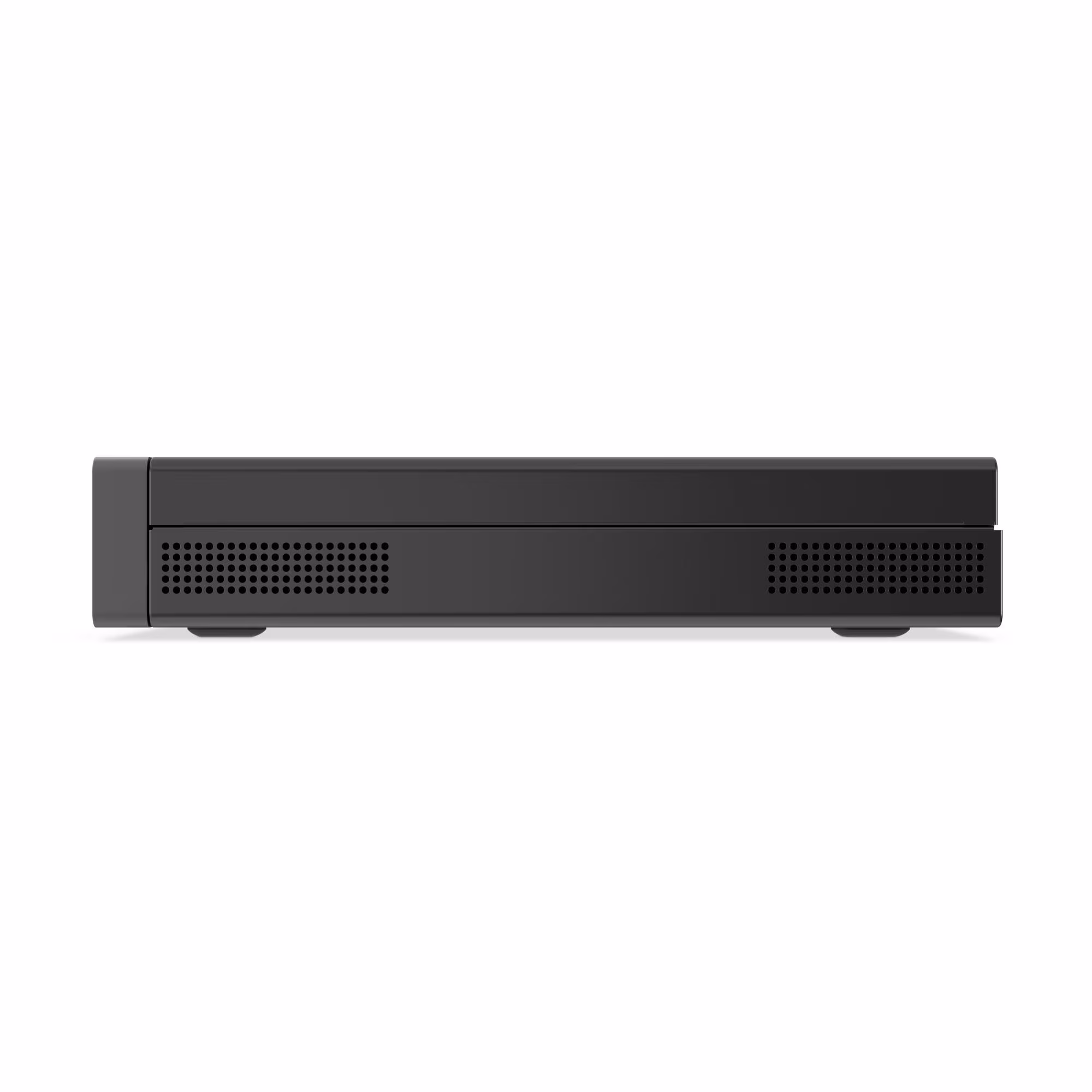

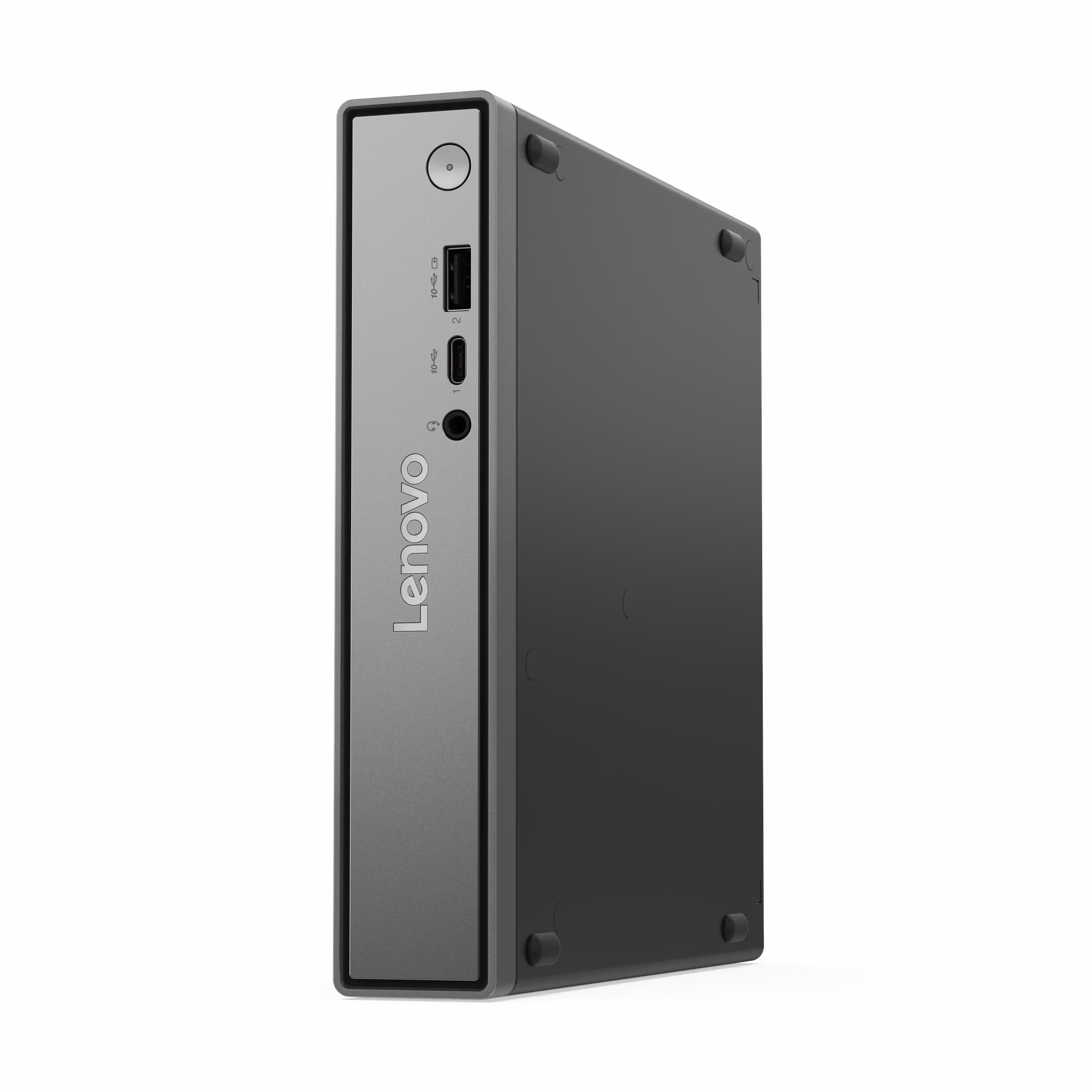

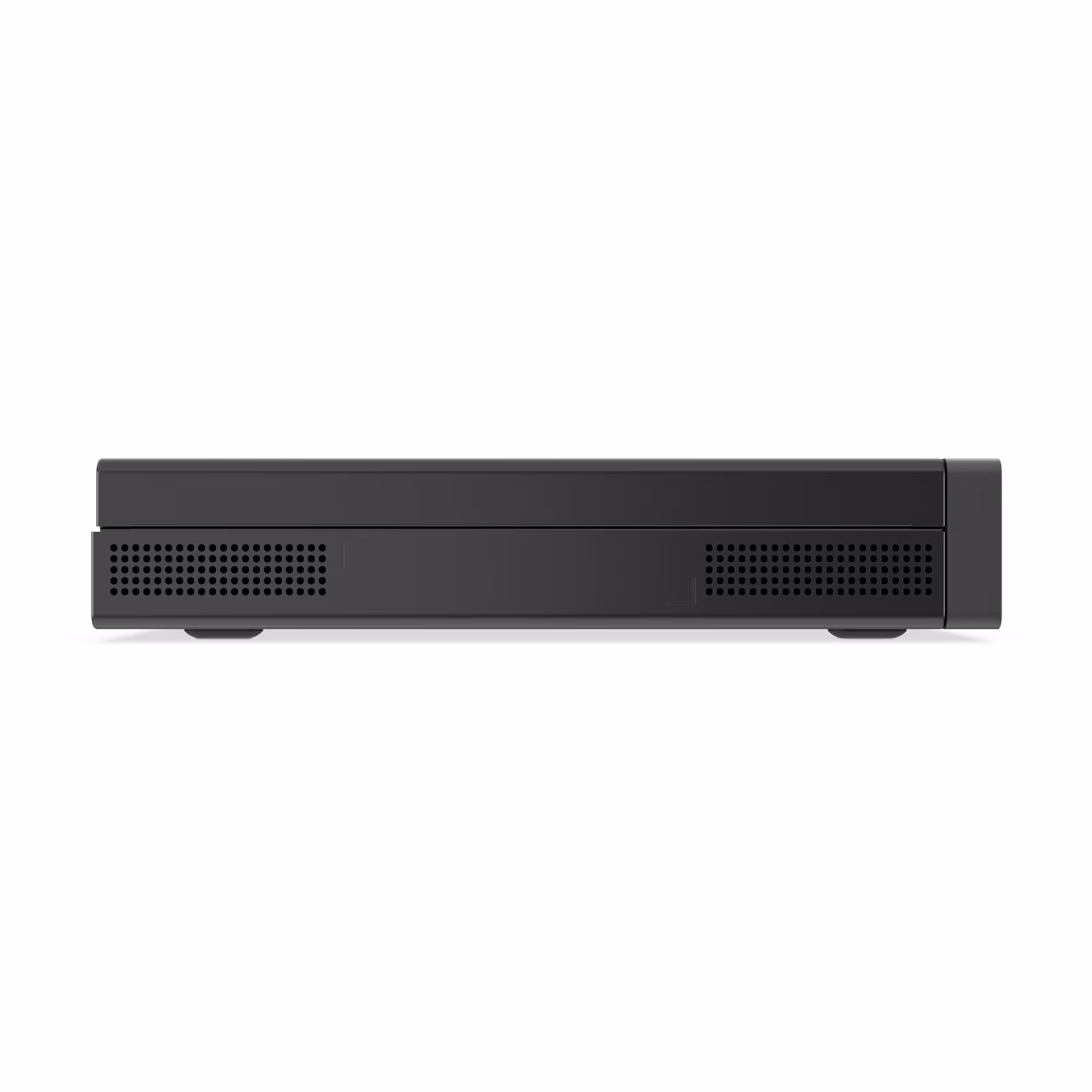

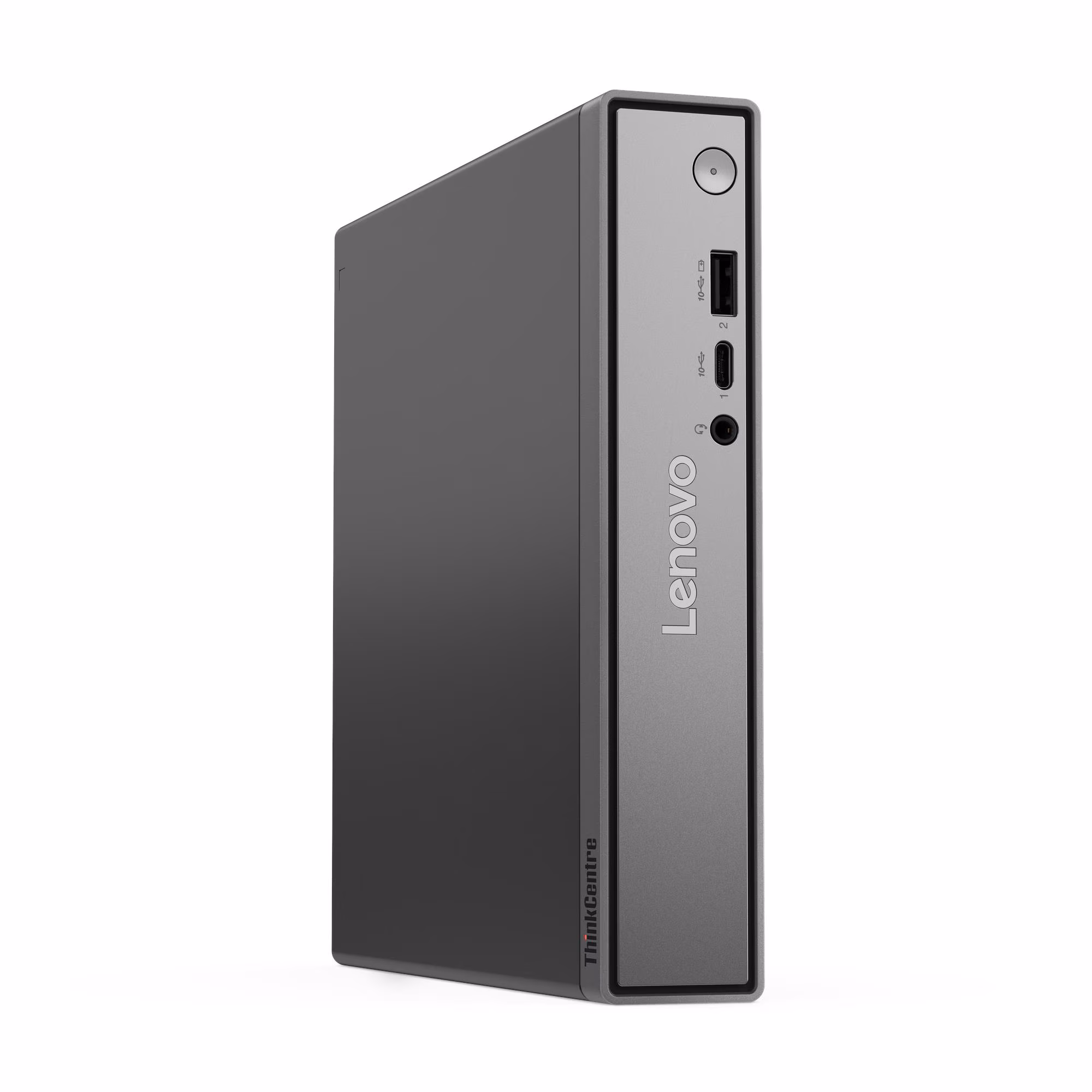

Lenovo ThinkCentre neo 50q Gen 5 Intel Core 5 210H Tiny 13B9008VUK

Datasheet

Short Description

The Lenovo ThinkCentre neo 50q Gen 5 Tiny Desktop (13B9008VUK) is an ultra-compact 1L powerhouse designed for space-constrained professional environments where performance cannot be compromised. Powered by the Intel Core 5 210H processor, featuring 8GB of high-speed DDR5 memory (upgradable to 64GB), a 512GB PCIe Gen4 NVMe SSD, and comprehensive connectivity including Wi-Fi 7 and dual display outputs, this tiny desktop delivers exceptional productivity for SMBs, educational institutions, and home offices.

Key Sections

Ultra-Compact 1L Tiny Form Factor

The ThinkCentre neo 50q Gen 5 features an ultra-compact 1L Tiny chassis measuring just 179 x 182.9 x 34.5 mm and weighing only 1.13 kg . The space-saving design fits virtually anywhere — on a desk, mounted behind a monitor using the included VESA mount, or placed in tight workspaces . Despite its miniature footprint, the system delivers full desktop-class performance and enterprise-grade features .

High-Performance Intel Core 5 Processing

At the heart of the neo 50q Gen 5 is the Intel Core 5 210H processor from the Raptor Lake-H Refresh family. It features 8 cores (4 Performance cores and 4 Efficient cores) and 12 threads, with P-cores boosting up to 4.8 GHz and a 12MB Intel Smart Cache . This processor delivers solid performance for office applications, multitasking, and demanding business workloads .

The integrated Intel UHD Graphics Xe G4 (48 EUs) provides crisp visuals for presentations, graphic editing, and layered interfaces . Thread Director technology helps the operating system decide which threads to use on performance or efficient cores for the best performance .

Fast DDR5 Memory & PCIe Gen4 Storage

The neo 50q Gen 5 is equipped with 8GB of high-speed DDR5 5600MHz memory, providing excellent bandwidth for smooth multitasking and application responsiveness . The system features two DDR5 SO-DIMM slots with dual-channel support, allowing expansion up to 64GB . The 512GB PCIe 4.0×4 NVMe SSD with Opal 2.0 encryption delivers rapid boot times, quick application loading, and fast file access . The system supports two M.2 SSD slots for storage expansion .

Comprehensive Connectivity & Port Selection

The neo 50q Gen 5 offers extensive connectivity options for versatile workspaces :

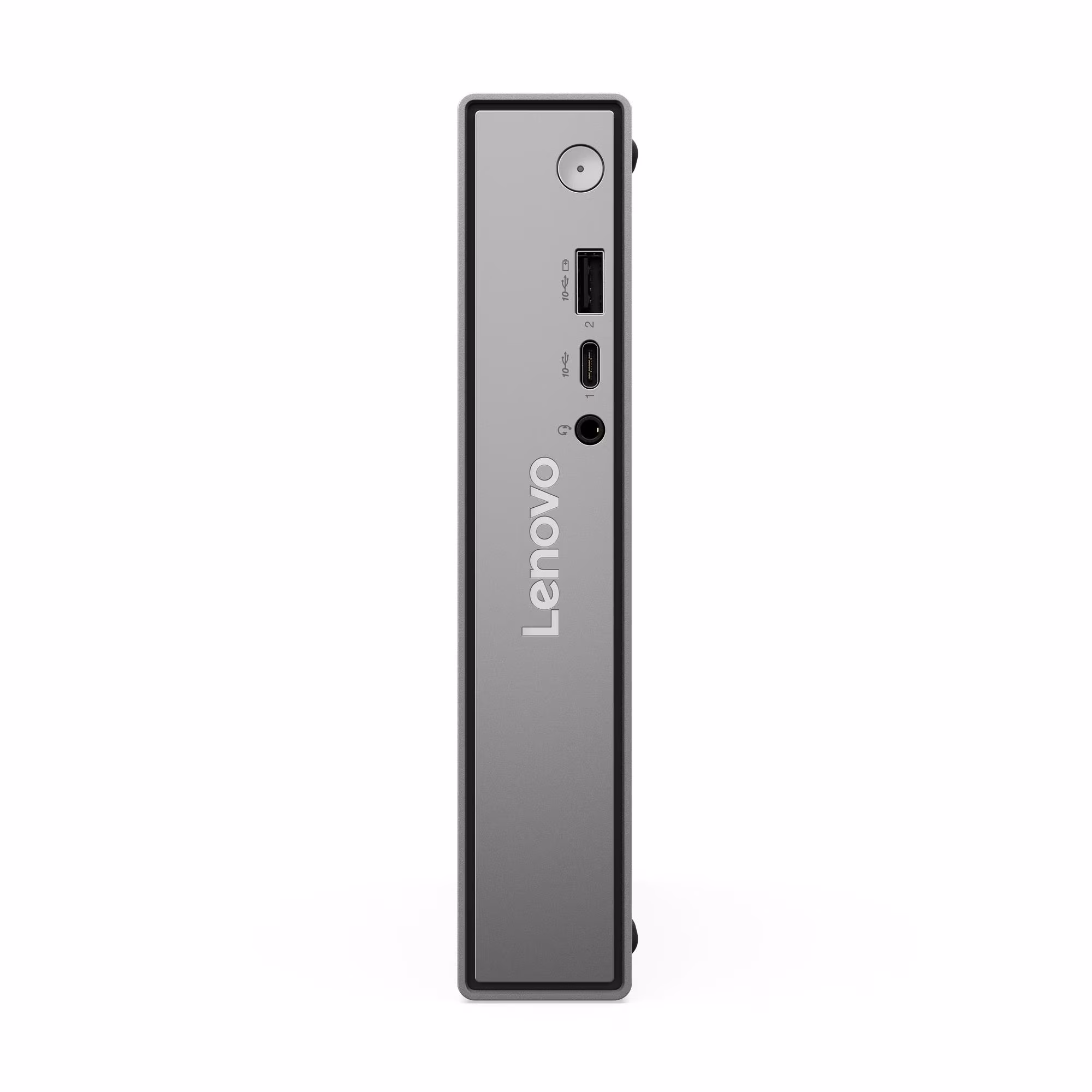

Front Ports:

• 1x USB-C (USB 10Gbps / USB 3.2 Gen 2) with data transfer and 15W charging

• 1x USB-A (USB 10Gbps / USB 3.2 Gen 2)

• 1x Headphone / microphone combo jack (3.5mm)

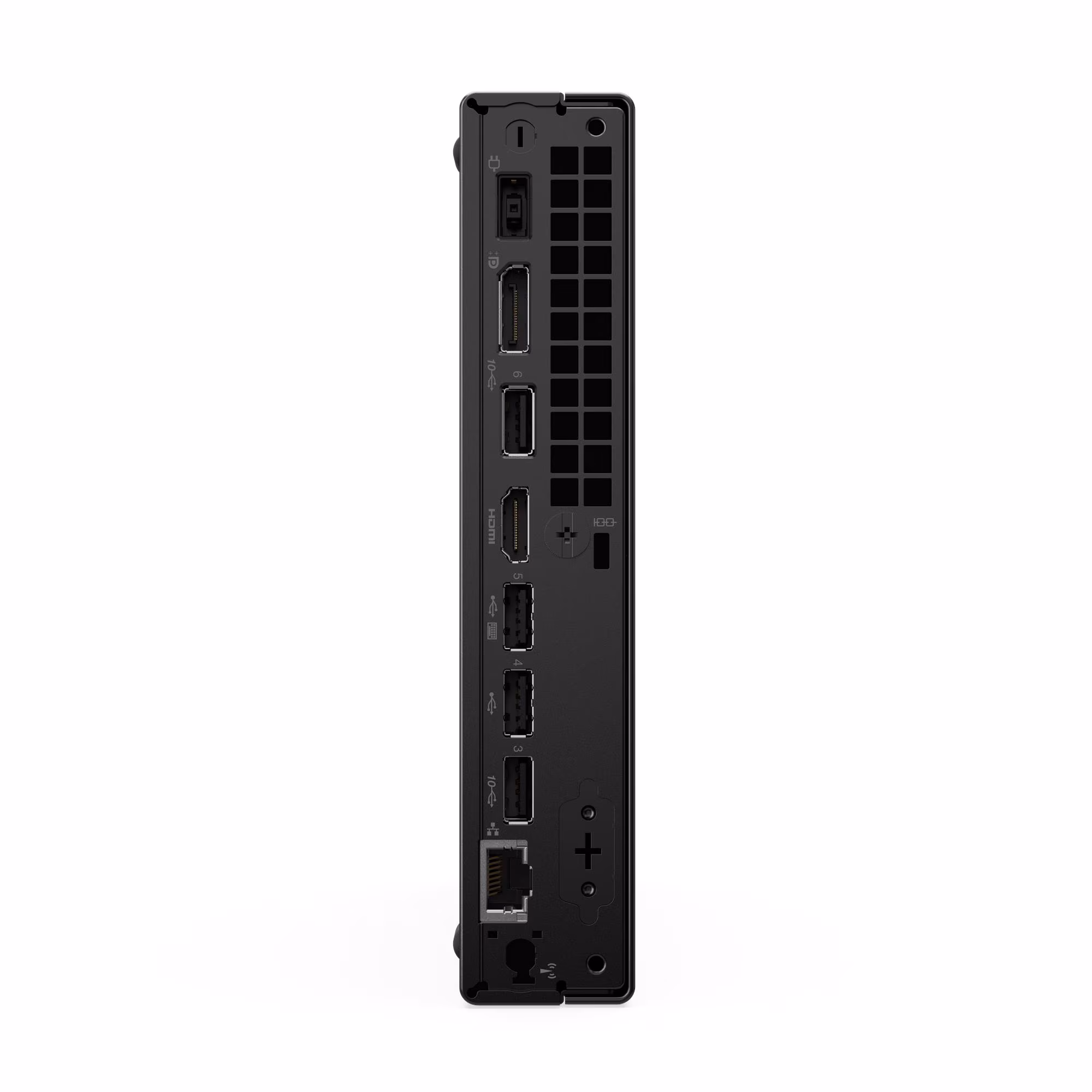

Rear Ports:

• 2x USB-A (USB 10Gbps / USB 3.2 Gen 2)

• 2x USB-A (Hi-Speed USB / USB 2.0), one supports Smart Power On

• 1x HDMI 2.1 TMDS

• 1x DisplayPort 1.4b

• 1x Ethernet (RJ-45) Gigabit

The system supports up to three displays simultaneously, enhancing productivity for multitasking workflows . The Realtek Wi-Fi 7 RTL8922AE and Bluetooth 5.4 provide next-generation wireless connectivity for fast, reliable networking .

Enterprise-Grade Security & ThinkShield Protection

Work with peace of mind using comprehensive ThinkShield security features . The system includes discrete TPM 2.0 for data encryption . The Kensington lock slot and padlock loop provide physical security protection . Additional security features include chassis intrusion detection, Secure Wipe, and Smart USB Protection .

Complete Out-of-the-Box Solution

The neo 50q Gen 5 includes the USB Calliope Keyboard (UK-ENG layout) and USB Calliope Mouse, providing a complete out-of-the-box experience . The system ships without an operating system (FreeDOS), offering flexibility for enterprise custom imaging and deployment. The included VESA mount allows flexible mounting behind monitors. The 1-year carry-in and 3-year carry-in upgrade provide reliable coverage for business-critical deployments.

Core Features

• The ultra-compact 1L Tiny chassis saves valuable desk space while delivering full desktop performance.

• The Intel Core 5 210H processor with 8 cores and 12 threads accelerates daily business computing and multitasking.

• 8GB DDR5 5600MHz memory with expansion up to 64GB guarantees quick application response times.

• High-speed 512GB PCIe 4.0 NVMe SSD with Opal 2.0 encryption enables rapid boot times and fast file access.

• Realtek Wi-Fi 7 and Bluetooth 5.4 deliver next-generation wireless connectivity.

• Comprehensive port selection including USB-C (15W charging), HDMI 2.1, and DisplayPort 1.4b.

• Supports up to three displays for enhanced multitasking productivity.

• ThinkShield security suite with TPM 2.0 and Kensington lock slot.

Performance & Utility Features

• The Intel Core 5 210H utilizes advanced hybrid architecture with 4 P-cores and 4 E-cores for optimal power efficiency and computing speed.

• Integrated Intel UHD Graphics Xe G4 provides crisp visuals for office productivity and multimedia content.

• The 1L Tiny form factor with VESA mount enables flexible deployment options, including behind-monitor mounting.

• The Intelligent Cooling Engine (ICE) ensures quiet, efficient performance even under load.

• The 90W power adapter provides efficient energy delivery.

• Supports RAID 0,1 for backup and recovery (with dual SSD configuration).

• TÜV Rheinland Ultra Low Noise certification ensures minimal disturbance in professional environments.

• ENERGY STAR 9.0, EPEAT Gold, and TCO 10.0 certified for environmental sustainability .

• MIL-STD-810H military-grade reliability testing .

Technical Specifications Summary

• Model / Part Number: Lenovo ThinkCentre neo 50q Gen 5 (13B9008VUK)

• Form Factor: Tiny (1L)

• Processor: Intel Core 5 210H (8 Cores: 4P + 4E, Up to 4.8 GHz Max Boost, 12MB Cache)

• Graphics: Integrated Intel UHD Graphics Xe G4 (48 EUs)

• Chipset: Intel SoC Platform

• Memory: 8 GB DDR5 5600MHz RAM (Upgradable to 64GB, 2x SO-DIMM Slots)

• Storage: 512 GB SSD M.2 2280 PCIe 4.0×4 NVMe Opal 2.0

• Storage Support: 2x M.2 SSD slots (PCIe Gen4)

• Operating System: No OS (FreeDOS)

• Optical Drive: None

• Audio: Realtek ALC256, High Definition Audio, Internal Speaker

• Wireless Connectivity: Realtek Wi-Fi 7 RTL8922AE (802.11be 2×2) and Bluetooth 5.4

• Ethernet: Gigabit Ethernet (RJ-45)

• Power Supply: 90W Adapter

• Dimensions (WxDxH): 179 x 182.9 x 34.5 mm

• Weight: 1.13 kg

• Color: Black

• Accessories: USB Calliope Keyboard (UK-ENG), USB Calliope Mouse, VESA Mount

• Security: Discrete TPM 2.0, Kensington Lock Slot, Chassis Intrusion Detection, Smart USB Protection

• Certifications: ENERGY STAR 9.0, EPEAT Gold, TCO 10.0, TÜV Low Noise, RoHS, MIL-STD-810H

• Warranty: 1 Year Carry-in + 3 Year Carry-in
