Ubiquiti UISP Dish 30 dBi PtP antenna
KSh 60,500 (KSh 70,180 Incl VAT)
- 30 dBi high-gain dish covering 5.15–6.875 GHz
- Narrow beamwidth (~5–6°) with strong cross-polar isolation
- Durable, IPX6-rated design for all-weather outdoor use
- Precision pole-mount bracket with elevation tuning and snap-in radio support
- Supports ultra-long PtP links (>30 km) with compliant radios

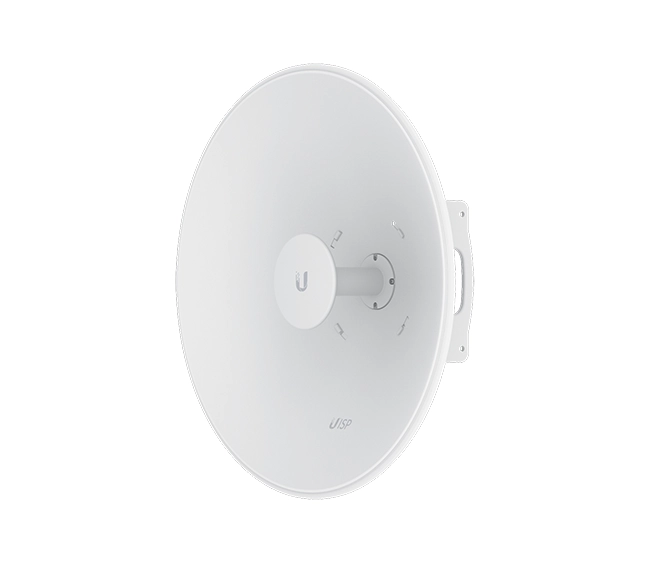

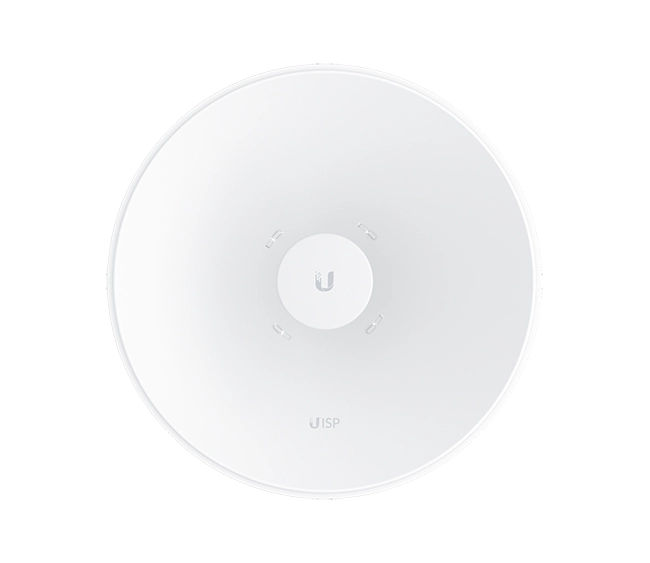

The Ubiquiti UISP Dish 30 dBi is a high-performance 5 GHz directional antenna designed for long-range point-to-point wireless links. With a narrow beamwidth, rugged IPX6-rated build, and seamless compatibility with airFiber 5XHD and Rocket radios, this antenna ensures precise signal targeting, high throughput, and noise rejection—making it ideal for professional ISP and enterprise backhaul applications.
Detailed Specifications for Ubiquiti UISP Dish Antenna (AM‑Dish)
🛠 Mechanical & Environmental
- Dish Diameter: 650 mm; Depth: 200 mm
- Weight: 4.54 kg (dish only), plus 3.1 kg mounting bracket
- Material: Powder-coated galvanized steel dish, UV-stabilized polycarbonate & aluminum alloy parts
- Wind Rating: Survives up to 200 km/h; wind load ~860 N at 200 km/h
- Mounting: Precision pole-mount bracket with ±15° elevation adjustment; fits 40–90 mm pole diameter
- Ingress Protection: IPX6 rated for outdoor use
📡 UISP Dish RF & Antenna Characteristics
- Frequency Range: 5.15–6.875 GHz (supports airFiber and airMAX radios)
- Gain: 30 dBi across full band
- Beamwidth (3 dB):
- Azimuth: 5–6°; Elevation: 5–6°
- (6 dB beamwidth: 6.5–8° both planes)
- Polarization: Dual-linear; cross-polar isolation approx. 20 dB
- VSWR: Up to 2:1 maximum
🔧 Performance & Integration
- Point-to-Point Range: Supports over 30 km (line-of-sight with compatible radios)
- Radio Compatibility: Snap-in bracket accommodates airFiber 5XHD and airMAX Rocket Prism/AC radios securely
- Alignment Tools: Includes alignment mount and bracket; side latches ensure fast, tool-free installation
🌍 Environmental Specs & Certifications
- Operating Temperature: –40 °C to +70 °C
- Humidity: 5–95% non-condensing
- Certifications: CE, FCC, IC, NDAA compliant; meets IEC EMC and environmental standards (MIL-STD, ETSI as applicable)
- ESD/EMP Protection: Withstands ±24 kV contact/air discharge
✅ Meta Description
The Ubiquiti UISP Dish is a rugged 30 dBi 5–6.9 GHz dish antenna with narrow beamwidth, precision mount, and radio compatibility—optimised for long-range PtP wireless backhaul over 30 km.
| Brand | Ubiquiti |
|---|
