Ubiquiti airMAX Lite AP GPS (LAP‑GPS)

Ubiquiti airMAX Lite AP GPS (LAP-GPS) delivers 450+ Mbps real TCP/IP throughput and supports 50+ simultaneous client devices, making it ideal for rural or suburban broadband distribution. Engineered for reliability, the unit is housed in a rugged, weather-resistant enclosure rated for extreme conditions, including temperatures from –40 °C to +70 °C and wind speeds up to 200 km/h.

The airMAX Lite AP GPS (LAP‑GPS) is powered via passive PoE and includes a built-in 2.4 GHz management radio for easy local configuration and diagnostics. With low power consumption (7 W) and seamless airMAX TDMA protocol integration, the LAP-GPS delivers cost-effective, synchronized coverage for expanding network infrastructures.

Detailed Specifications for Ubiquiti airMAX Lite AP GPS (LAP‑GPS)

• Model: LAP‑GPS, GPS-enabled sector AP for airMAX networks

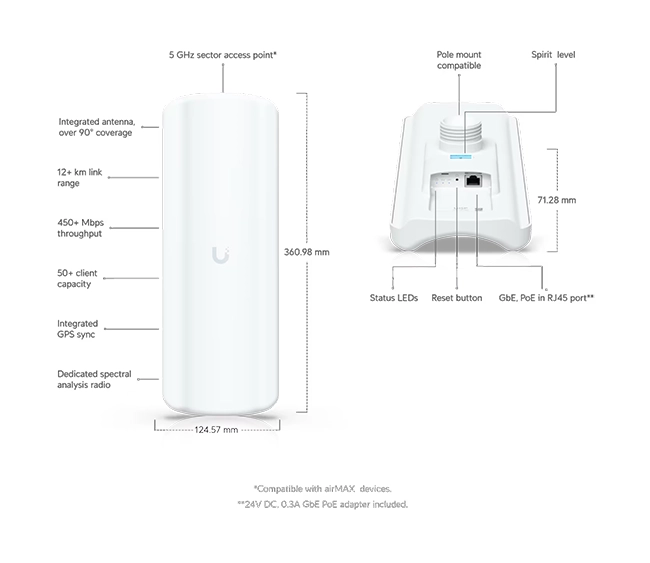

• Dimensions & Weight: 361 × 124.6 × 71.3 mm; 752 g
• Enclosure & Durability: Outdoor-rated; supports wind speeds up to 200 km/h and wind loading of 77 N at 200 km/h; operates from –40 °C to +70 °C; ESD/EMP protection ±24 kV

🔌 Networking & Power

• Ethernet: 1 × Gigabit RJ45 port
• PoE: Passive PoE-in 2-pair (pin 4/5+, 7/8–); included 24 V, 0.3 A PoE injector
• Voltage Range: 20–27 V DC
• Max Power Consumption: ~7.1 W

📶 RF & Throughput

• Frequency: 5150–5875 MHz (region-dependent)
• Antenna Gain: 17 dBi integrated sector (≈90° beamwidth)
• Max TX Power: 25 dBm
• Throughput: Up to 450+ Mbps real TCP/IP
• Client Capacity: Supports 50+ simultaneous clients

📡 airMAX Lite AP GPS (LAP‑GPS) Special Features

• GPS Synchronization: Enables scalable AP deployment with TDMA sync across sectors
• Management Radio: 2.4 GHz Wi‑Fi for local setup and monitoring
• Spectral Analysis Radio: Dedicated hardware for interference diagnostics
• Certifications: CE, FCC, IC, NDAA compliant

✅ Conclusion

The Ubiquiti airMAX Lite AP GPS (LAP-GPS) is a rugged 5 GHz sector AP with integrated 17 dBi antenna, GPS synchronization, 450+ Mbps throughput, passive PoE, and built-in management tools—designed for scalable ISP networks.

Datasheet
