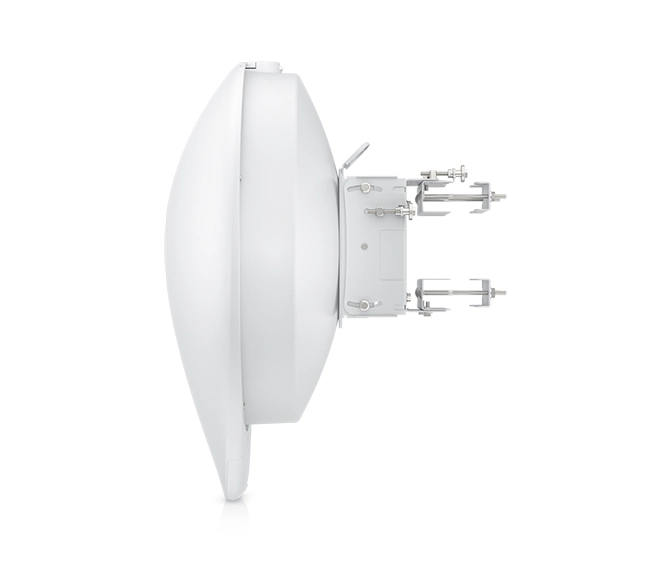

Ubiquiti airFiber 60 XG – (AF60-XG) P-to-P Bridge

The Ubiquiti airFiber 60 XG (AF60-XG) is a premium 60 GHz point-to-point radio designed to deliver multi-gigabit wireless connectivity with ultra-low latency over medium-range links.

With a maximum throughput of 6 Gbps, integrated beamforming antennas, and support for 10G Ethernet and SFP+, it is ideal for high-capacity backhaul, ISP infrastructure, and enterprise-grade building-to-building links. Featuring GPS synchronization, 5 GHz backup, and seamless UISP integration, the AF60-XG brings fiber-like performance to the air.

---

Key Specifications

General

• Model: AF60-XG
• Manufacturer: Ubiquiti Networks
• Type: 60 GHz Point-to-Point Radio
• Use Case: High-capacity wireless backhaul and bridging

---

Hardware Specifications

Processor & Memory

• CPU: Quad-Core ARM Cortex-A7
• Memory: 512 MB DDR3
• Storage: 256 MB NAND

Enclosure & Mounting

• Enclosure Material: Aluminum and UV-stabilized plastic

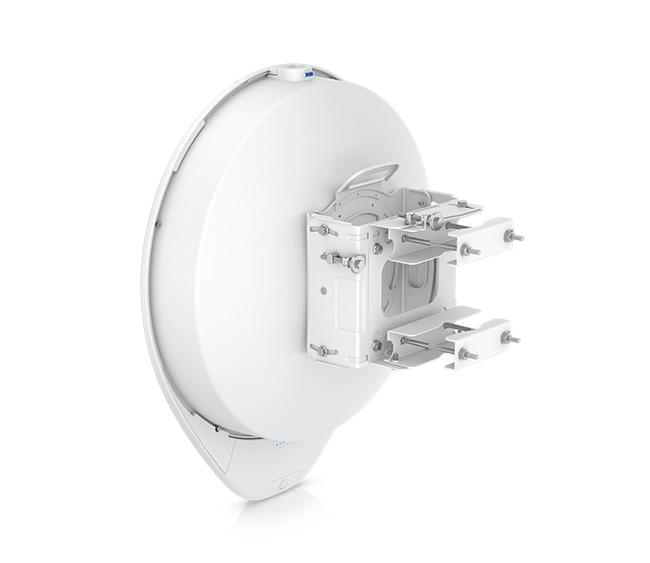

• Mounting: Integrated precision alignment bracket
• Dimensions: 426 × 426 × 303 mm
• Weight: 5.8 kg (with mount)

---

Radio & Antenna

• Frequency Band: 57 – 71 GHz
• Channel Bandwidth: 2160 MHz
• Max Throughput: 6 Gbps (aggregate)
• Range: Up to 4 km
• Modulation Types: 16QAM, QPSK, BPSK
• Beamforming: Auto beam steering and alignment
• Antenna Gain: 38 dBi (60 GHz)

---

Backup 5 GHz Radio

• Frequency Band: 5.1 – 5.9 GHz
• Function: Redundant backup/failover link
• Throughput: Up to 867 Mbps
• Gain: 26 dBi directional

---

Interfaces

• 1 × 10G Ethernet Port (RJ45)
• 1 × 10G SFP+ Port
• Power Method: 48V Passive PoE
• PoE Adapter: 60W Gigabit PoE injector (included)
• Power Consumption: Max 25W

---

Performance & Features

• Latency: Sub-1 ms
• GPS Synchronization: Yes (co-location friendly)
• Operating Temperature: -40°C to 60°C
• Weatherproofing: IP67 rating
• Adaptive Modulation: Dynamic link optimization
• Wind Resistance: Up to 200 km/h

---

Management & Software

• Platform: UISP
• Access Methods: Web UI, UISP app, SSH
• Monitoring: Link quality, spectrum, throughput, and error tracking

---

Compliance & Certifications

• Certifications: CE, FCC, IC
• Surge Protection: ±24kV Air/Contact

---

Package Contents

• 1 × airFiber 60 XG Radio
• 1 × Precision Mount Kit
• 1 × 60W Gigabit PoE Adapter with Power Cord
• 1 × Quick Start Guide

---

Use Cases

• Fiber-grade metro backhaul
• Enterprise building-to-building networks
• Redundant high-speed links for ISPs
• Temporary or remote gigabit uplinks

---
