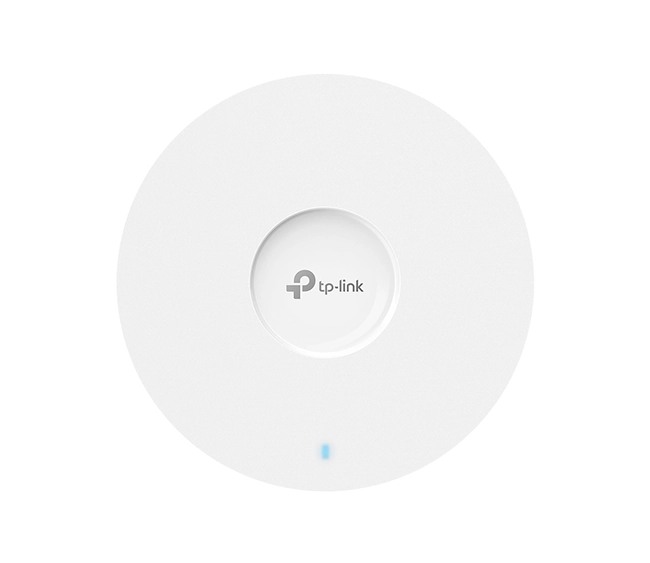

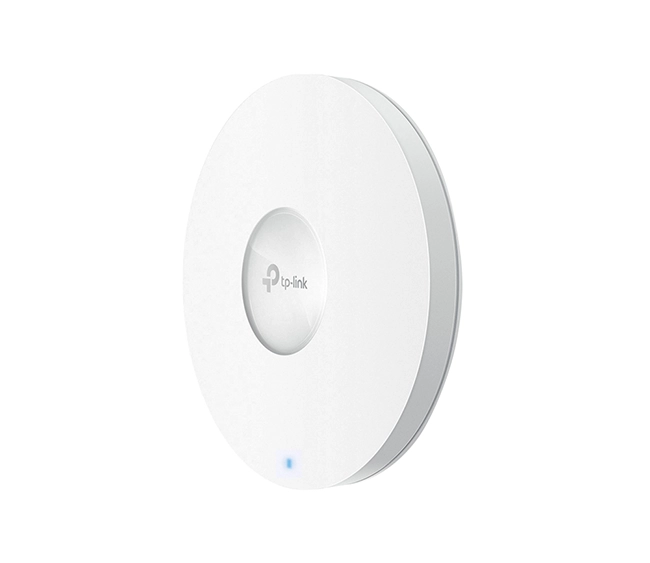

TP-Link AX1800 Ceiling Mount WiFi 6 Access Point – EAP610

The TP-Link AX1800 Ceiling Mount WiFi 6 Access Point – EAP610 is a high-performance WiFi 6 (802.11ax) ceiling-mount access point designed for high-density business environments such as hotels, schools, offices, and retail spaces. It delivers up to 1.8 Gbps combined wireless speeds, supports seamless roaming, and integrates with the Omada SDN platform for unified cloud management.

With advanced OFDMA and MU-MIMO technologies, it ensures faster speeds, increased capacity, and reduced latency for multiple connected devices.

Detailed Specifications

Wi-Fi Standards:

• IEEE 802.11ax/ac/n/g/b/a
• Dual-band AX1800 WiFi 6

Speed Performance:

• 2.4 GHz: Up to 574 Mbps
• 5 GHz: Up to 1201 Mbps
• Combined: Up to 1775 Mbps

Frequency Bands:

• Simultaneous 2.4 GHz and 5 GHz

Antenna Design:

• 4 internal omnidirectional antennas for optimized 360° ceiling coverage

Operation Modes:

• Access Point Mode

Ports:

• 1× Gigabit Ethernet Port (supports 802.3af PoE)

Coverage & Capacity:

• WiFi 6 technologies: OFDMA + MU-MIMO for better multi-user performance
• Beamforming for targeted, stronger connections
• Band steering for optimal device distribution
• Load balancing for stability in multi-AP setups

Security:

• WPA/WPA2/WPA3-Enterprise encryption
• Captive portal with customizable authentication for guests
• MAC address filtering
• SSID to VLAN mapping for network segmentation

Management Features:

• Omada SDN centralized cloud/local controller support
• Omada App for remote configuration and monitoring
• Supports up to 8 SSIDs per band
• Access scheduling and traffic shaping

Power Supply:

• 802.3af PoE support for flexible installation
• Optional DC adapter (sold separately)

Mounting Options:

• Ceiling or wall mount

Dimensions:

• 160 × 160 × 33.6 mm (6.3 × 6.3 × 1.3 in)

Key Features

• AX1800 dual-band WiFi 6 with OFDMA and MU-MIMO
• High-density performance for multiple devices
• Omada SDN and app-based management
• Gigabit PoE for easy deployment
• Enhanced security with WPA3 and captive portal

Meta Description

TP-Link AX1800 Ceiling Mount WiFi 6 Access Point – EAP610 with OFDMA, MU-MIMO, Gigabit PoE, Omada SDN cloud management, and WPA3 security — ideal for high-density enterprise Wi-Fi.
