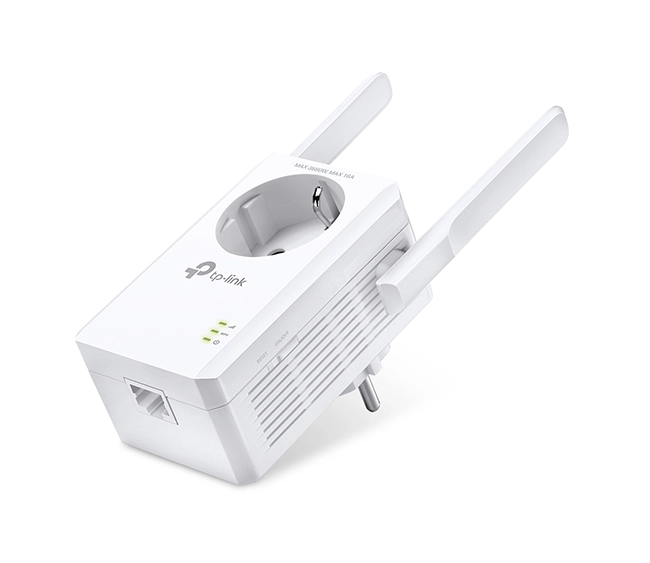

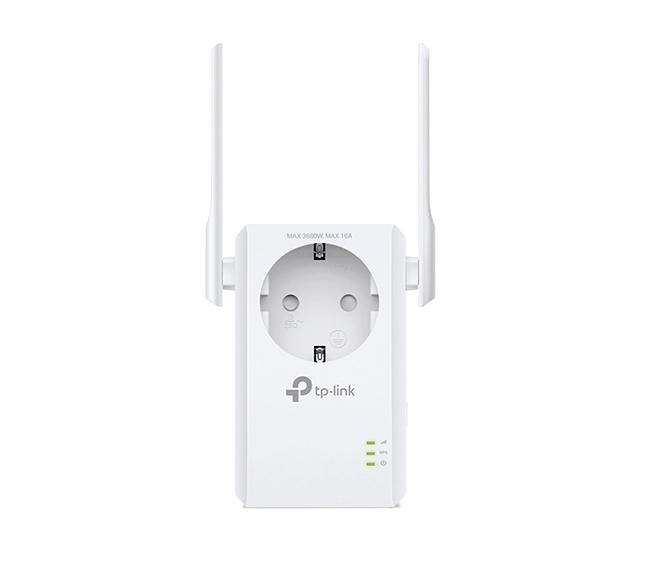

TP-Link 300Mbps Wi-Fi Range Extender with AC Passthrough -TL-WA860RE

The TP-Link 300Mbps Wi-Fi Range Extender with AC Passthrough -TL-WA860RE designed to expand your wireless network coverage while keeping your power outlet available through its integrated AC passthrough socket.

This compact wall-mounted extender ensures stable wireless performance for browsing, streaming, and gaming, while its Intelligent Signal Indicator helps find the ideal placement for maximum coverage.

Detailed Specifications

Wireless Standards:

• IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Frequency Band:

• 2.4GHz

Signal Rate:

• 300Mbps at 2.4GHz

Antenna:

• 2 × external antennas (direction adjustable)

Transmit Power:

• < 20dBm (EIRP)

Ports:

• 1 × 10/100Mbps Ethernet port (RJ45)

Button Controls:

• RE (Range Extender) Button
• Reset Button

Functions:

• Range Extender Mode
• Access Point Mode (via Ethernet port)

Encryption:

• 64/128/152-bit WEP
• WPA-PSK/WPA2-PSK

Signal Strength Indicator:

• Intelligent LED indicators for optimal placement

Dimensions:

• 4.3 × 2.6 × 3.0 in (110 × 66 × 77 mm)

Power Supply:

• Integrated AC plug with passthrough socket
• Voltage: 100–240V AC, 50/60Hz

Operating Environment:

• Temperature: 0°C–40°C
• Humidity: 10%–90% non-condensing

Compatibility:

• Works with any standard Wi-Fi router or wireless access point

Key Features

• Boosts 2.4GHz Wi-Fi coverage up to 300Mbps
• Integrated AC passthrough socket keeps power outlet usable
• Two adjustable external antennas for improved range
• One Ethernet port for wired device connections
• Intelligent signal LED for easy optimal positioning
• Secure wireless encryption with WEP/WPA/WPA2
