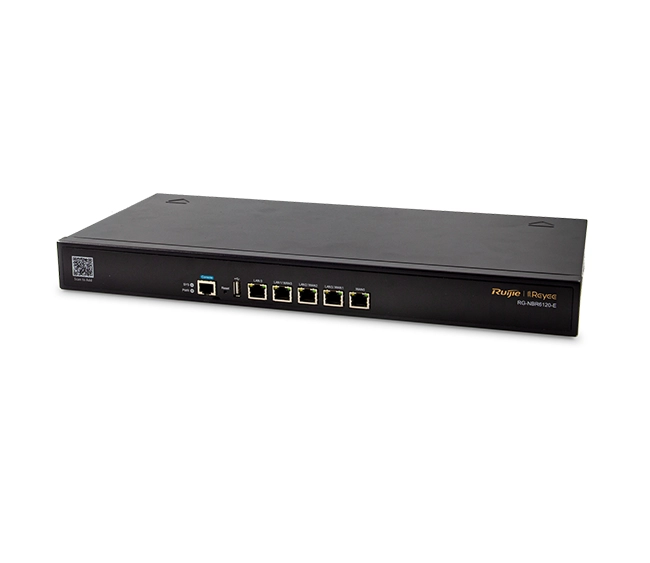

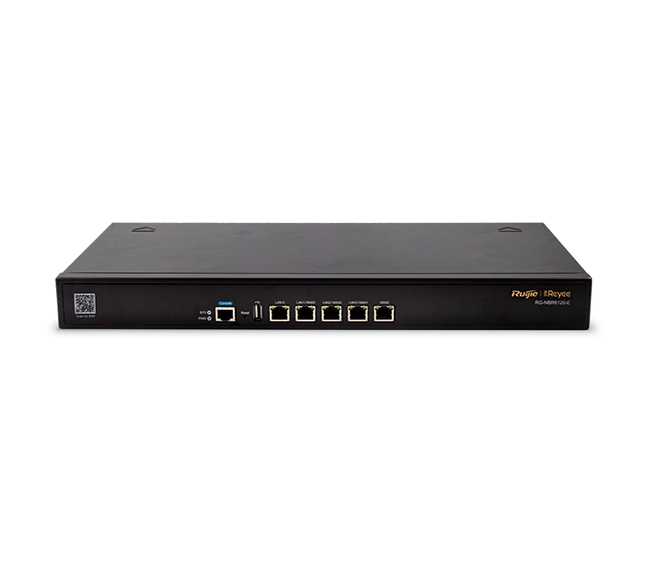

Ruijie RG-NBR6120-E Reyee High-performance Cloud Managed Router

Here are the detailed specifications for the Ruijie RG‑NBR6120‑E cloud-managed security router:

🛠️ Hardware & Performance

• CPU: Dual-core 880 MHz
• RAM: 512 MB
• Flash Storage: 4 GB eMMC
• Throughput: Up to 600 Mbps (NAT + DPI/flow audit)
• Concurrent Clients: Recommended up to 200 devices

🔌 Interfaces & Ports

• Ethernet (Gigabit):
  • 1 × fixed WAN port
  • 1 × fixed LAN port
  • 3 × LAN/WAN switchable ports (up to 4 WAN links)
• Total Ports: 5 × GE
• Additional Ports:
  • 1 × USB (for storage or logs)
  • 1 × Console port

🌐 Networking & VPN

• Multi‑WAN Support: Up to 4, with load balancing and failover
• VPN Support: IPsec/L2TP/PPTP/OpenVPN
  • Up to 1,000 IPsec tunnels
• Security Features:
  • L7 DPI, firewall, ACLs, anti-DoS, port-scan protection
  • Captive portal (vouchers, SMS, QR codes), screen mirroring

☁️ Cloud Management & Integrations

• Managed via Ruijie Cloud & Reyee App – including zero-touch provisioning, firmware updates, remote monitoring
• All-in-One Gateway: Firewall + behavior audit + IPS + AC
• Open API: Supports flexible third-party integrations

🧰 Physical & Environmental

• Form Factor: 1U rack-mount or desktop, fanless
• Dimensions: 440 × 200 × 43.6 mm; Weight: ~2.38 kg
• Power: 100–240 V AC with <25 W consumption
• Operating Conditions: –5–45 °C; humidity 10–90% (non-condensing)
• Certifications: CE, RoHS; 3-year warranty

✅ Summary Table

This model is well-suited for hospitality, retail, and enterprise edge environments where secure, cloud-managed routing with multi-WAN, DPI, VPN, and captive portal is required.
