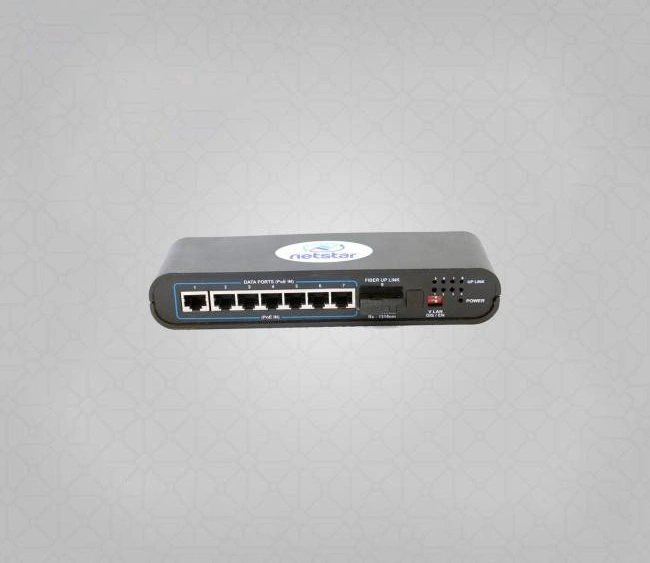

Netstar NS‑ER7‑E1‑V12‑OD2 Unmanaged Remote Powered Switch
KSh 45,000 (KSh 52,200 Incl VAT)
- 7 × 10/100 Mbps Remote-Powered Ports (RPoE in)
- 1 × 10/100 Mbps Uplink Port
- 12V DC Output to power ONU/ONT
- Remotely powered via 24V DC (no local power needed)
- Port Isolation (downlink ports can’t talk to each other)
- Surge, Over-Voltage & Over-Current Protection
- Auto-Negotiation & Full Duplex Support
- Cascadable Design (chain multiple units)
- Outdoor-Ready & Compact (158×60×50 mm)
Here are the detailed specs for the Netstar NS‑ER7‑E1‑V12‑OD2 Unmanaged Remote Powered Switch:
🚪 Ports & Power
- 7 × 10/100 Mbps Remote‑Powered (RPoE) downstream ports (data + power in)
- 1 × 10/100 Mbps uplink port (data only)
- 12 V DC output jack for powering an ONU/ONT downstream
🛠️ Key Technical Specs
- Standards: IEEE 802.3, 802.3u, 802.3x, 802.3az (Energy Efficient Ethernet)
- MAC table: 1K entries; packet buffer: ~448 Kb
- Max packet size: 1,536 bytes
- Throughput:
- 100 Mbps ports → 148,800 pps
- 10 Mbps ports → 14,880 pps
⚡ Power Management & Protection
- Powered remotely via 24 V DC PoE injector (0.75–1 A) — no rooftop UPS needed
- 2500 V surge protection on all ports
- Over-voltage protection (handles up to ~50 V DC, shuts down and auto-recovers removal)
- Per-port over-current protection via resettable fuses
🌡️ Physical & Environmental Specs
| Attribute | Specification |
|---|---|
| Power consumption | ~2 W (switch) + ~5 W (injector) |
| Operating temperature | 0 °C to 50 °C |
| Storage temperature | 0 °C to 75 °C |
| Humidity | 20 % – 95 % non‑condensing |
| Dimensions (W×D×H) | 158 × 60 × 50 mm |
| Weight | ~178 g |
🔧 Networking Features
- Auto-negotiation (10/100 Mbps, half/full duplex) on all ports
- Non-blocking wire-speed switching
- Port-based isolation (hardware VLAN) — downstream ports are isolated from each other; uplink can talk to all
- Cascadable setup – supports daisy-chaining up to 3 additional switches
✅ Ideal Use Cases
- Perfect for ISP WISP deployments, enabling a single ONT/ONU to service multiple units
- Outdoor-ready design (optionally pole-mounted via weatherproof casing)
- Simplifies last‑mile power logistics: only one client PoE feed is needed to power the switch and ONU downstream
🔍 Summary – Quick Specs
- Model: NS‑ER7‑E1‑V12‑OD2
- LAN Ports: 7 × RPoE + 1 × uplink
- PoE IN: Remote-powered via 24 V DC
- PoE OUT: N/A (only 12 V DC jack for ONT)
- Protection: Surge, over-voltage, over-current
- Physical: 158 × 60 × 50 mm; 178 g; 0–50 °C operation
- Switching: Wire-speed; 1K MAC; 448 Kb buffer
- Extras: Port isolation, cascading, auto-negotiation
