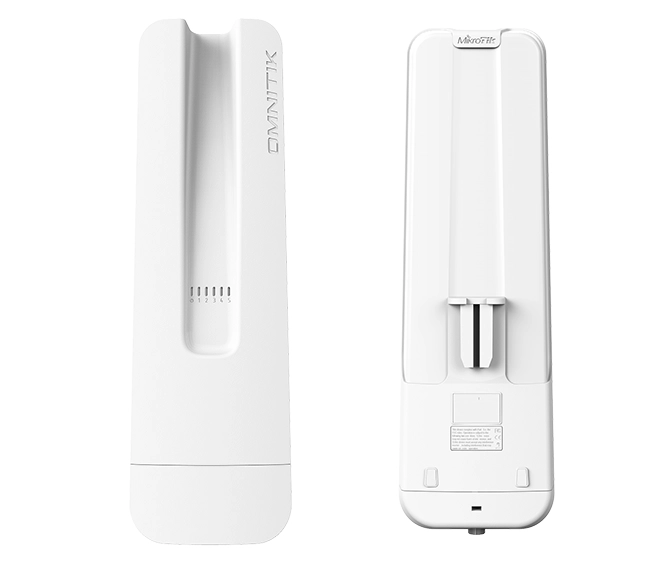

MikroTik RBOmniTikG‑5HacD – OmniTik 5 ac AP

The MikroTik RBOmniTikG‑5HacD – OmniTik 5 ac AP is a professional-grade outdoor wireless access point and CPE designed with dual-band capabilities and an integrated omni-directional antenna. Ideal for providing uniform coverage in public areas, venues, or client installations, it combines robust RouterOS features with weatherproof hardware.

General & Hardware

• Model: RBOmniTikG‑5HacD (OmniTik 5 ac)
• Architecture: ARM-based, single-core CPU at 720 MHz
• RAM: 128 MB
• Storage: 16 MB flash
• RouterOS License Level: 4
• Enclosure: Sealed outdoor-grade plastic housing
• Mounting: Pole or wall-ready with included clamp
• Operating Temperature Range: –40 °C to +70 °C
• Cooling: Passive (fanless)

Wireless Specifications

• Dual-Band Operation: 2.4 GHz and 5 GHz
• Wireless Standards: 802.11b/g/n (2.4 GHz), 802.11a/n/ac (5 GHz)
• Antenna: Integrated omni-directional antenna for wide-angle coverage
• Wireless Chains: 2×2 MIMO
• Max Throughput:
  • ~300 Mbps on 2.4 GHz
  • ~867 Mbps on 5 GHz

Networking & Interfaces

• Ethernet:
  • 1 × 1 Gbps RJ‑45 port (PoE-in or PoE-out capable)
  • 1 × 10/100 Mbps Ethernet port (PoE-out)
• PoE Options: Supports 802.3af/at input and can power a second device over the secondary port
• Grounding: Integrated grounding lug for protection

Power

• Power Source: IEEE 802.3af/at PoE-in
• Power Output: Can supply PoE to another device through Ethernet 2
• Typical Power Consumption: ~6–8 W

Monitoring & Features

• LED Indicators: Show device status, Wi-Fi activity, and power
• Sensors: Internal temperature sensor for monitoring
• RouterOS Features: Full access to routing, firewall, hotspot, user-manager, QoS, VPN, and VLAN tools
• Wireless Modes: Can operate as AP, CPE, WDS, or bridge

Use-Case Scenarios

• Outdoor dual-band Wi-Fi access for cafes, resorts, or parks
• Point-to-multipoint base station for client connectivity
• Omni-directional coverage for surveillance systems, IoT devices
• Mesh expansion nodes in outdoor environments

Meta Description

MikroTik RBOmniTikG‑5HacD (OmniTik 5 ac) is a rugged outdoor dual-band access point with integrated omni antenna, dual Ethernet with PoE passthrough, RouterOS, and fanless design—perfect for wide-area outdoor wireless coverage.
