MikroTik RB922UAGS‑5HPacD‑NM (NetMetal 5)
KSh 42,500 (KSh 49,300 Incl VAT)
- Rugged IP54-rated weatherproof casing
- 720 MHz CPU, 128 MB RAM, RouterOS L4
- Dual-chain 5 GHz Wi‑Fi 5 with 867 Mbps speed
- Gigabit Ethernet + 1.25 Gbps SFP + USB + miniPCIe
- External antenna support with RP‑SMA connectors
- Passive PoE-in and low power usage (~19 W)
- Industrial operating range (–40 °C to +70 °C)
- Onboard sensors and alert beeper

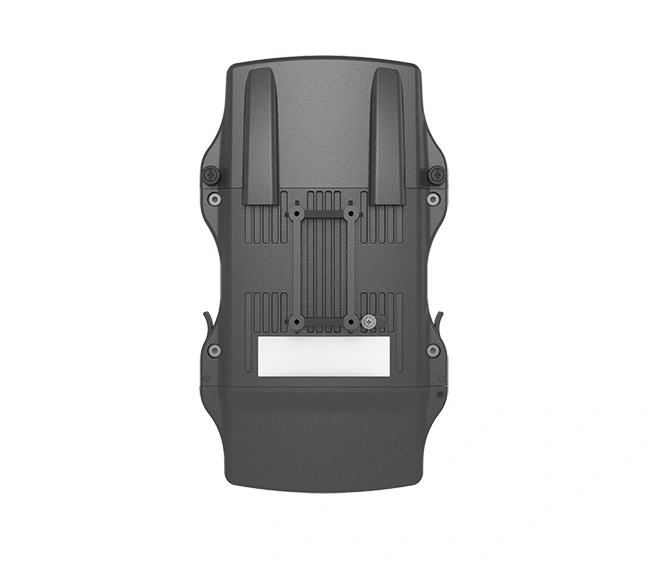

The MikroTik RB922UAGS‑5HPacD‑NM (NetMetal 5) – Rugged Outdoor 5 GHz Wireless RouterBoard, is a durable outdoor-grade CPE/routerboard with a powerful 5 GHz 802.11ac radio, modular expansion, and industrial-grade design—suited for backbone, point-to-point, or access deployments.
Hardware & Performance
- CPU: Single-core QCA9557 @ 720 MHz
- RAM: 128 MB
- Storage: 128 MB NAND
- Operating System: RouterOS v7 (License Level 4)
- MTBF: ~200 000 hours @25 °C
- Enclosure Rating: IP54, aluminum housing with passive cooling
- Operating Temperature: –40 °C to +70 °C
- Dimensions: 143 × 247 × 48 mm
Wireless Specifications
- Frequency Band: 5 GHz (802.11a/n/ac)
- Chains: 2×2 MIMO using QCA9882
- Max Data Rate: 867 Mbps
- Channels Supported: 20/40/80 MHz
- Antenna Ports: 2× RP‑SMA for external antenna use
Interfaces
- Ethernet: 1× Gigabit RJ45 with passive PoE-in (8–30 V)
- SFP: 1× 1.25 Gbps cage with DDMI support
- USB: 1× USB‑A 2.0 (max 1 A output)
- miniPCIe: 1× slot with SIM support (3G/4G module compatible)
Power
- PoE-in: Passive (8–30 V DC)
- Max Power Consumption: ≈19 W
Monitoring & Extras
- Sensors: PCB temperature and voltage monitoring
- Beeper: Integrated for alerts
- LED Indicators: Signal strength and status LEDs
Use-Case Applications
- Outdoor CPE or client device
- Backbone for PTP or PMP networks
- Field-deployable router with cellular backup
- Industrial wireless node for remote locations
Meta Description
MikroTik RB922UAGS‑5HPacD‑NM (NetMetal 5) is a rugged outdoor 5 GHz CPE with 720 MHz CPU, 867 Mbps Wi‑Fi 5, Gigabit Ethernet, SFP, USB, miniPCIe, RP‑SMA external antennas, passive PoE, and IP54 housing.
