Logitech Rally Bar
KSh 452,000 (KSh 524,320 Incl VAT)
- Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
- Pan: Motorized ±25°
- Tilt: Motorized ±15°
- Zoom: 15X HD zoom (5X optical and 3X digital)
- Diagonal Field of View: 90°
- Horizontal Field of View: 82.1°
- Vertical Field of View: 52.2°
- Total Room Coverage (field of view + pan and tilt): 132.1° Horizontal x 82.2° Vertical
Certifications & Compatibility
General Specifications
- Built-in Components: 6 beamforming microphones, PTZ camera, 2 speakers, AI Viewfinder, cable management and retention system, table stand, Logitech CollabOS platform
- Enclosure: All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference
- Device Management: Logitech Sync
- Displays Supported: 2
- Display Resolution: Up to 1080p
- Network Protocol Support: IPv4, IPv6
- Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file
Camera
- Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
- Pan: Motorized ±25°
- Tilt: Motorized ±15°
- Zoom: 15X HD zoom (5X optical and 3X digital)
- Diagonal Field of View: 90°
- Horizontal Field of View: 82.1°
- Vertical Field of View: 52.2°
- Total Room Coverage (field of view + pan and tilt): 132.1° Horizontal x 82.2° Vertical
Speakers
- Drivers: 2x 70 mm
- Sensitivity: 92dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter
- Rated Power: 8W
- THD: 1kHz < 2% at 1W
- Speaker Sampling Rate: 48 kHz
- Impedance: 4 Ohms
Microphones
- Frequency Response: 90Hz – 16kHz
- Sensitivity: >-36dBFS +/-1 dB @ 1Pa
- Microphone data rate output: 48KHz
- Pickup Range: Up to 7 m
- Beamforming Elements: 6 omnidirectional digital MEMS microphones forming 5 adaptive acoustic broadside beams
- Audio processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
- Noise suppression: AI based de-noising algorithm
- Add-on Mics: Supports up to 4 additional Rally Mic Pods and 2 Rally Mic Pod Hubs for larger conference rooms
RightSense™ Technologies
- RightLight: Renders natural skin tones for each participant
- RightSight: Primary camera frames the active speaker while the AI Viewfinder captures everyone in the room
- RightSound: Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo
- Grid View: Detects and frames all meeting participants in order to create equitable hybrid meeting experiences. To learn more, visit logitech.com/prosupport/gridview
Interfaces
- HDMI Out: 2 (up to 1080p)
- HDMI In: 1
- USB: 3x Type A, 1x Type C
- Network: 10/100/1G Ethernet
- WiFi: 802.11a/b/g/n/ac
- External Mic Input: Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable)
- Remote Control: Bluetooth® Low Energy
Power & Cables
- Power supply: Auto-sensing
- Operating Voltage/Power: 100-240V, 19V, 4.74A
- Power Supply Dimensions: 127 mm x 51 mm x 30 mm
- DC Cable: 1.5 m
- AC Cable: 1 m
- HDMI 1.4 Cable: 2 m
- USB A to USB C 3.0 Cable: 2.2 m
Environmental
- Operating Temperature: 0 to 40°C
- Storage Temperature: -40 to 70 °C
- Humidity: 10 to 95%
- BTU/hr: 57 idle, 64 in meeting
Security
- Full Disk Encryption: AES-128
- Data Encryption: Symmetric Keys, PKI
- Device Identity: Protected by device attestation
- Device Access: Authenticated using API
- Key Protection: Arm TrustZone, RPMP
Accessories
- Mounts: Wall Mount for Video Bars, TV Mount for Video Bars
- Audio: Rally Mic Pod, Rally Mic Pod Hub, Rally Mic Pod Mount, Rally Mic Pod Extension Cable
- Connectivity: Logitech Strong USB (10m, 25m, 45m)
- Touch Controller: Logitech Tap and Tap IP 3
Warranty Information
Standard: 2-year limited hardware warranty included.
Extended: Additional one-year and three-year extended warranties available at the time of hardware purchase. Contact your reseller for availability.
Extended: Additional one-year and three-year extended warranties available at the time of hardware purchase. Contact your reseller for availability.
| Color | Graphite |
|---|---|
| Brand | Logitech |
Only logged in customers who have purchased this product may leave a review.
Related products
-
Logitech Rally Ultra-HD Conference Cam
KSh 335,000 (KSh 388,600 Incl VAT)Ultra-HD imaging system supports
- 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
- 1080p, 720p at 30fps and 60 fps
Smooth motorized pan, tilt and zoom
Pan: ±90°
Tilt: +50° / -90°
15X HD zoom
Field of View
- Diagonal: 90°
- Horizontal: 82.1°
- Vertical: 52.2°
Autofocus
3 camera presets
Kensington security slot
Video mute/unmute LED indicator
Standard tripod thread
-
Logitech BRIO 300 Full HD webcam
KSh 29,000 (KSh 33,640 Incl VAT)Multiple resolutions
- 1080p/30fps (1920×1080 pixels)
- 720p/30fps (1280×720 pixels)
Camera megapixel: 2MPDiagonal field of view (dFoV): 70°Hardware zoom: 1x Digital zoomFocus type: fixed focusLens type: Custom Logi 4 element lens with anti-reflective coatingIntegrated privacy shutterUSB-C plug-and-play connectivitySupported in Logi TuneBuilt-in Microphone type
- Mono microphone
- Mic range: Up to 1.22 m
-
Logitech Rally Speaker
KSh 30,400 (KSh 35,264 Incl VAT)High-performance 76 mm driver with rare-earth magnetPatent-pending suspension system eliminates vibration-induced camera shake and audio interferenceMini XLR cable connects to Rally Display Hub for both signal and powerSpeaker volume 95 dB SPL @1 W, 100 dB SPL @7.5 W, both +/-2 dB at ½ meterDistortion: 200 Hz–300 Hz <2.5%, 300 Hz–10 kHz < 1%@7.5 WSpeaker Sampling Rate: 48KHz -

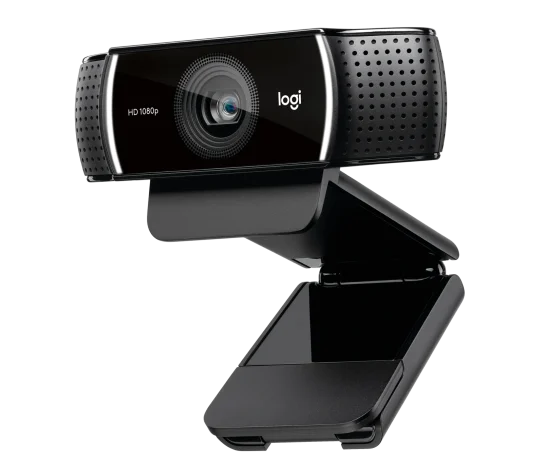

Logitech C922 Pro Stream
