Logitech GROUP Video Conferencing System

Camera

• Height: 130 mm
• Width: 170 mm
• Depth: 138 mm
• Weight: 585 g

SPEAKERPHONE

• Height: 240 mm
• Width: 65 mm
• Depth: 240 mm
• Weight: : 1223 g

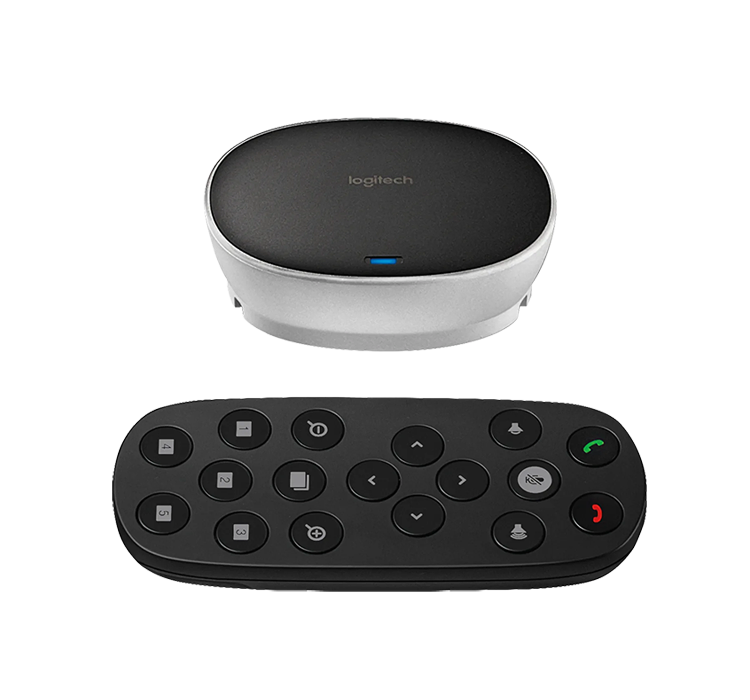

Hub

• Height: 94 mm
• Width: 200 mm
• Depth: 74 mm
• Weight: 83 g

Remote

• Height: 50 mm
• Width: 120 mm
• Depth: 12 mm
• Weight: 51 g

Wall/Table Mount

• Height: 210 mm
• Width: 120 mm
• Depth: 99 mm
• Weight: 255 g

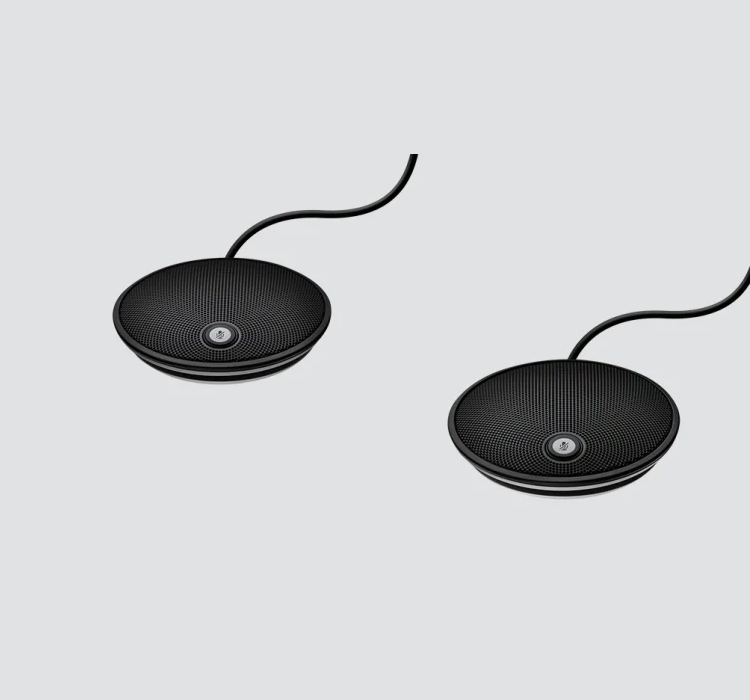

Expansion Mics (Optional)

• Height: 83 mm
• Width: 83 mm
• Depth: 21 mm
• Weight: 230 g

Camera

• Smooth motorized pan, tilt and zoom controlled from remote or console
• Pan +/- 90°
• Tilt +35° / -45
• 10x lossless HD zoom
• Field of View
  • Diagonal: 90°
  • Horizontal: 82.1°
  • Vertical: 52.2°
• Full HD 1080p 30fps
• H.264 UVC 1.5 with Scalable Video Coding (SVC)
• Autofocus
• 5 camera presets
• Far-end control (PTZ) of ConferenceCam product (with supported services)
• Kensington security slot
• Video mute/unmute LED indicator
• Standard tripod thread

Remote Control

• Camera, speakerphone, and call control
• 5 camera presets
• Docks on speakerphone
• IR 8.5 m range
• CR2032 battery (included)

SPEAKERPHONE

• Full-duplex performance
• Acoustic echo cancellation
• Noise reduction technology
• Ultra-wideband audio
• Pairs with mobile devices via Bluetooth and NFC
• LCD for caller ID, call duration and other functional response
• LEDs for speakerphone streaming, mute, hold, and Bluetooth
• Tactile buttons for call answer/end, volume and mute, Bluetooth, and camera controls
• 5 camera presets for pan, tilt, and zoom settings
• Kensington security slot

Microphones

• Pickup Range: 6 m
• Pickup range with expansion mics: 8.5 m
• Four omnidirectional, beamforming microphones
• Frequency Response: 100Hz – 11KHz
• Sensitivity: -28 dB +/-3dB
• Distortion: <5% from 200Hz

HUB / CABLES / POWER

• Central Hub connects and powers all components
• Under-table mounting adhesive included
• One cable to camera: 5 m
• One cable to speakerphone: 5 m
• Extended cables available: 10 and 15 m
• One USB cable for connection to PC/Mac: 2 m
• AC Power adapter with regional plugs
• Power cable: 3 m

MOUNT

• Dual-purpose bracket works for both wall mounting and tabletop elevation

COMPATIBILITY AND CERTIFICATIONS

• Plug-and-play USB connectivity
• Certified for Skype for Business and ready for Teams
• Fuze® Certified
• Microsoft Cortana
• Cisco Jabber®
• Compatible with BlueJeans, BroadSoft, GoToMeeting, Vidyo, and other video conferencing, recording, and broadcasting applications that support USB cameras

• Camera
• Speakerphone
• Remote control
• Two 5m cables for connection between speakerphone and hub and camera and hub
• One 2m meter cable between hub and PC
• Velcro for cable management
• Velcro for hub to table securing
• Powered hub
• Power adapter with regional plugs and 3m
• Mount
• Documentation
• Warranty card

• 960-001057
