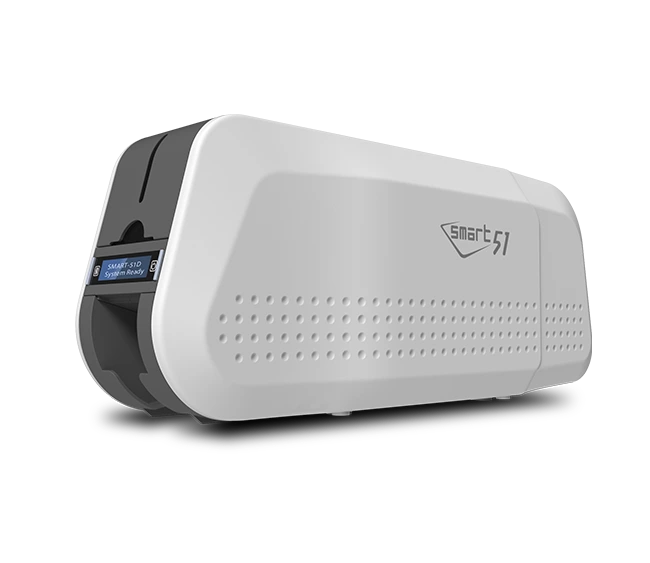

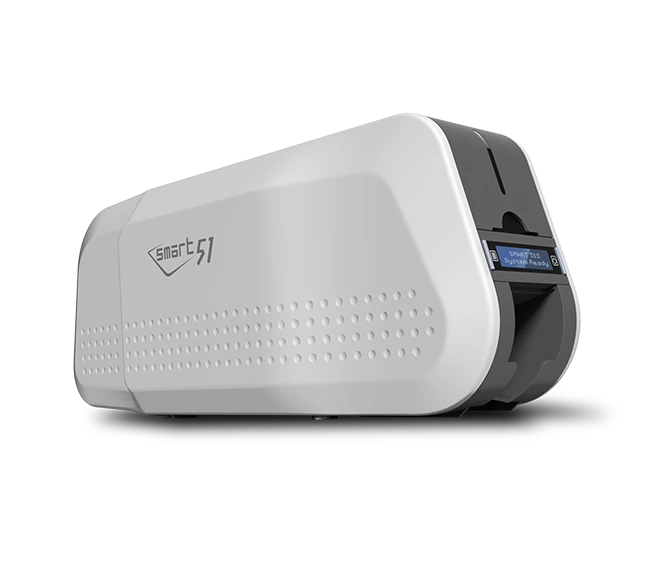

IDP Smart 51 D Dual Sided ID Card Printer

Printing

• Print Mode: Single- or Dual-Sided
• Print Type: Direct Dye-Sublimation
• Print Area: Edge to Edge
• Resolutions: 300dpi (Color & Mono), 600 & 1200dpi (Mono only)

Card

• Card Feeding: Automatic
• Card Size: ISO CR80 or ISO CR79 (Option-Factory installed)
•  Card Thickness: 0.38mm (15mil) ~ 1.0mm (40mil)
•  Card Type: PVC, PET, Composite PVC

Print Speed

• Monochrome: 5 sec./card (720 cards/hour)
• YMCKO: Max. 17 sec./card (212 cards/hour)
• YMCKOK: Max. 22 sec./card (164 cards/hour)

Capacity

• Input Hopper: Card100 Cards / 200 Cards with cover open
• Output Hopper: Card Front: 40 Cards / Rear: 100 Cards (Optional Rear-side Stacker)

Laminating (Option for Dual-Sided Printer)

• Mode: Single & Dual
• Film (Clear & Holographic): 0.6mil, 1.0mil
• Speed (Simultaneous): 22 sec./card (YMCK, Single Lamination)
• Speed (Simultaneous): 32 sec./card (YMCKK, Single Lamination)
• Speed (One by One): 43 sec./card (YMCK, Single Lamination)
• Speed (One by One): 53 sec./card (YMCKK, Single Lamination)

System

• Memory: 64MB RAM
• Interface: 2 Line LCD / 2 LED Buttons
• Supported Platforms: Microsoft Windows 7/ 8 /10, Mac OS, Linux
• Communication: USB, Ethernet, WiFi (Option)
• Power Supply: Free Voltage (AC 100/ 220V, 50~60Hz)
• Power Consumption: 96W
• Temperature: 15~35?
• Humidity: 35~70%
