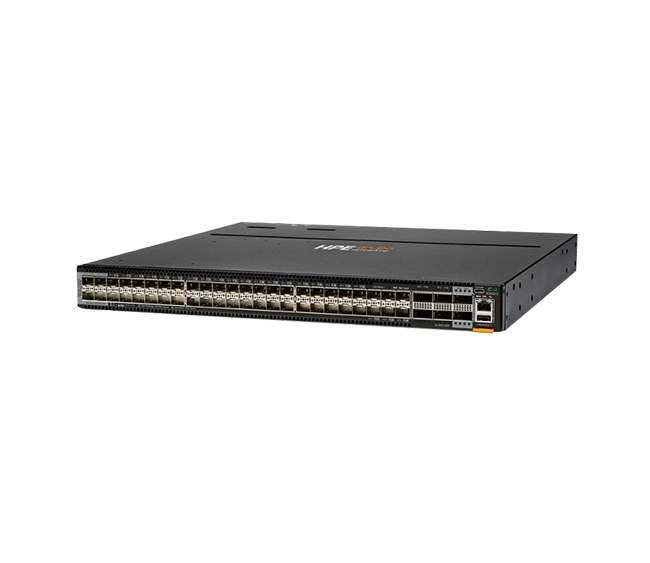

HPE Aruba Networking CX 8360‑48Y6C v2 48p + 6p 2 Sec Switch
KSh 200,000 (KSh 232,000 Incl VAT)
- 48 multi-rate 1/10/25 GbE access ports plus 6 40/100 GbE uplinks
- ~2.4 Tbps switching backbone capacity
- VSX support for scalable and redundant deployment
- MACsec support for secure links on selected ports
- Complete Layer 3 routing with OSPF, BGP, VRF, VXLAN/EVPN
- Fixed form-factor with enterprise-grade reliability
The HPE Aruba Networking CX 8360‑48Y6C v2 48p + 6p 2 Sec Switch is a high-throughput, fixed-configuration aggregation or core switch offering 48 ports capable of 1/10/25 GbE and 6 high-speed uplinks of 40/100 GbE. With advanced features like MACsec support, VSX redundancy, and full Layer 2/3 routing, it’s built for modern campus cores and data centers seeking high performance and security.
Detailed Specifications
Port & Interface Breakdown
- 48 × 1/10/25 GbE ports (via SFP / SFP+ / SFP28)
- 6 × 40/100 GbE uplink ports (QSFP+ / QSFP28)
- Some ports (4 of the 48 access ports) support MACsec encryption
- Some uplinks (2 of the 6) also support MACsec
- Uplinks may support breakout modes for flexible connectivity
Performance & Capacity
- Switching capacity: ~2.4 Tbps
- Forwarding performance: ~1,145 Mpps
- Low-latency forwarding matched to the line rates
- Packet buffering: shared architecture across ports for congestion handling
Redundancy & High Availability
- VSX (Virtual Switching Extension) support for active-active chassis configurations
- Dual (or redundant) power supplies (in applicable bundles)
- Multiple hot-swappable cooling fans, front-to-back or back-to-front airflow designs
- Hitless upgrades and failover in VSX mode
Layer 2 / Layer 3 & Routing Capabilities
- Layer 2: VLANs, STP/RSTP/MSTP, LACP, IGMP Snooping
- Layer 3: Static Routing, OSPF, BGP, VRF, policy-based routing
- Overlay support: VXLAN / EVPN for modern campus / DC fabrics
- IPv6 routing and dual-stack support
- Security: ACLs L2–L4, MACsec, control-plane protection
Physical & Environmental
- Fixed 1U chassis
- Redundant fan modules for dependable cooling
- Rack-mountable (19″ standard)
- Environmental tolerances suitable for enterprise / data center deployments
Key Features
- 48 multi-rate 1/10/25 GbE access ports plus 6 40/100 GbE uplinks
- ~2.4 Tbps switching backbone capacity
- VSX support for scalable and redundant deployment
- MACsec support for secure links on selected ports
- Complete Layer 3 routing with OSPF, BGP, VRF, VXLAN/EVPN
- Fixed form-factor with enterprise-grade reliability
Meta Description
The HPE Aruba Networking CX 8360‑48Y6C v2 48p + 6p 2 Sec Switch is a fixed 1U switch offering 48 ports of 1/10/25 GbE and 6 ports of 40/100 GbE, with ~2.4 Tbps throughput, VSX redundancy, MACsec support, and full Layer 2/3 capabilities — designed for aggregation and campus core deployments.
| Brand | Aruba |
|---|
