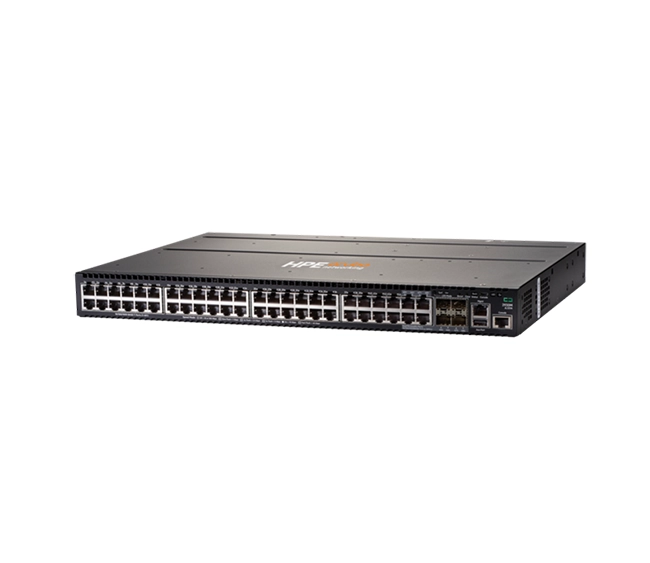

HPE Aruba Networking 2930M 48G 1‑slot Switch
KSh 200,000 (KSh 232,000 Incl VAT)
The HPE Aruba Networking 2930M Switch Series is designed for customers creating smart digital workplaces that are optimized for mobile users with an integrated wired and wireless approach.
- 48 Gigabit Ethernet access ports
- Modular uplink slot supporting 10G or 40G connectivity
- High-capacity 176 Gbps switching fabric
- Supports full Layer 2 and Layer 3 routing with IPv6
- Stackable up to 10 units with VSF
- Dual power supply support for redundancy
- Enterprise-class security and automation
The HPE Aruba Networking 2930M 48G 1-slot Switch delivers enterprise-grade performance and scalability with 48 Gigabit Ethernet ports and one modular uplink slot. Built for high-performance campus access and aggregation, it supports full Layer 2 and Layer 3 functionality, Virtual Switching Framework (VSF) stacking, robust security, and simplified management through Aruba Central and AirWave.
Detailed Specifications
General Overview
- Model: HPE Aruba Networking 2930M 48G 1-slot Switch (JL321A)
- Series: Aruba 2930M
- Switch type: Modular Gigabit Ethernet access switch
- Ideal for: Enterprise campus access, edge connectivity, and aggregation
Ports & Connectivity
- 48 × RJ-45 autosensing 10/100/1000 Mbps Gigabit Ethernet ports
- 1 × modular expansion slot supporting optional uplink modules (10G or 40G)
- Console and management ports (USB and serial)
- Supports stacking up to 10 switches with VSF (Virtual Switching Framework)
Performance
- Switching capacity: 176 Gbps
- Forwarding rate: up to 112 Mpps (million packets per second)
- MAC address table: 32,000 entries
- Jumbo frame support: up to 9,220 bytes
- Latency: approximately 3 µs for Gigabit speeds
- Fabric: Non-blocking, wire-speed architecture
Power & Redundancy
- Modular power design supporting one or two power supplies for redundancy
- PoE+ capability on compatible models (up to 1,440 W with dual PSU)
- Energy-efficient design with smart fan control and power scheduling
Layer 2 / Layer 3 Functionality
- Layer 2: VLANs (up to 4,094), Spanning Tree Protocol (STP/RSTP/MSTP), Link Aggregation (LACP), IGMP Snooping
- Layer 3: Static routing, RIP, OSPF, Access OSPF, and policy-based routing
- IPv6: Full dual-stack support
- QoS: Layer 2–4 prioritization, traffic shaping, congestion management
Security & Management
- Access security: 802.1X, MAC authentication, DHCP Snooping, Dynamic ARP Inspection
- ACLs: L2–L4 filters, IP Source Guard, Port Security
- Management options: Aruba Central, Web GUI, CLI, SNMP, REST API
- Automation: Zero Touch Provisioning (ZTP), scripting support
- Monitoring: sFlow, RMON, and event logging
Physical & Environmental
- Form factor: 1U rack-mountable metal chassis
- Dimensions: 44.25 × 32.43 × 4.39 cm
- Weight: approx. 4.6 kg
- Cooling: Front-to-back airflow with variable-speed fans
- Operating temperature: 0 °C to 45 °C
Key Features
- 48 Gigabit Ethernet access ports
- Modular uplink slot supporting 10G or 40G connectivity
- High-capacity 176 Gbps switching fabric
- Supports full Layer 2 and Layer 3 routing with IPv6
- Stackable up to 10 units with VSF
- Dual power supply support for redundancy
- Enterprise-class security and automation
Meta Description
The HPE Aruba Networking 2930M 48G 1‑slot Switch delivers 48 Gigabit ports, a modular uplink slot, 176 Gbps switching, and Layer 2/Layer 3 routing with stacking and advanced security—ideal for enterprise campus edge and access networks.
| Brand | Aruba |
|---|
