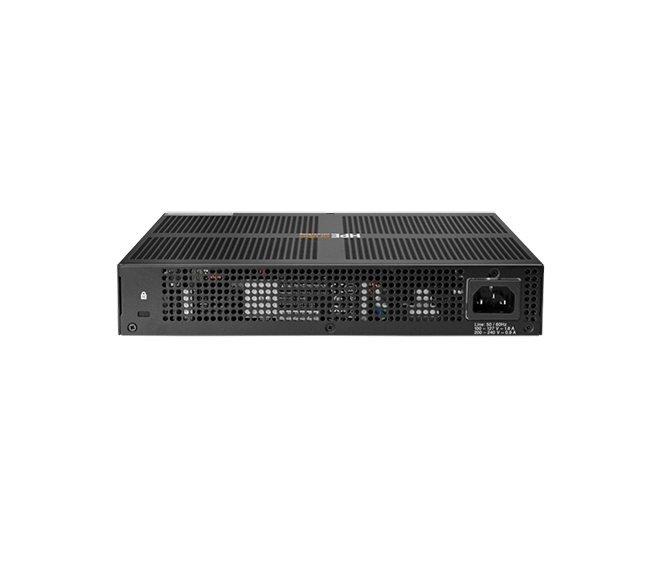

HPE Aruba Networking 2930F 12G PoE+ 2G/2SFP+ Switch
KSh 200,000 (KSh 232,000 Incl VAT)
The HPE Aruba Networking 2930F Switch Series is designed for customers creating smart digital workplaces that are optimized for mobile users with an integrated wired and wireless approach
- 12 Gigabit PoE+ ports and 2 SFP+ uplink ports
- Fanless design for silent, low-maintenance deployment
- ~68 Gbps switching capacity and ~41.7 Mpps throughput
- ~139 W PoE+ budget for powering access devices
- Full Layer 3 routing (static, RIP, OSPF) and stacking (VSF)
- Security and QoS features built in
- Ideal for small offices, access edge, or branch network use
The HPE Aruba Networking 2930F 12G PoE+ 2G/2SFP+ Switch (model JL693A) is a compact, fanless Layer 3 access switch with 12 Gigabit PoE+ ports and dual 1 G / 10 G SFP+ uplinks. It’s ideal for small deployments, branch offices, and edge environments requiring robust performance, intelligent segmentation, and quiet operation.
Detailed Specifications
Ports & Interfaces
- 12 × RJ-45 10/100/1000 Mbps ports with PoE+ (IEEE 802.3at)
- 2 × SFP+ uplinks supporting 1G or 10G fiber
- Console / management port for local access
- Fanless design (no moving parts)
Switching & Performance
- Switching capacity: 68 Gbps
- Forwarding rate: ~41.7 million packets per second (Mpps)
- Latency: ~3.8 µs on 1G ports, ~1.6 µs on 10G links
- Buffering: Shared packet buffering across ports
- Junction to uplink: Non-blocking architecture
Power & PoE
- PoE+ power budget: ~139 W total
- Up to 30 W per port (negotiated)
- Power management: prioritization, scheduling
Layer 2 / Layer 3 & Features
- Layer 2: VLAN, MSTP / RSTP, LACP, IGMP Snooping
- Layer 3: Static routing, RIP, Access OSPF
- IPv6 support and dual-stack operation
- ACLs, QoS, security controls (802.1X, DHCP snooping, etc.)
- VSF (Virtual Switching Framework) stacking up to 8 switches
- Zero-Touch Provisioning (ZTP) support
Physical & Environmental
- Fanless, compact 1U rack-mount design
- Silent operation—no noise from cooling fans
- Internal AC power supply
- Typical commercial operating temperature
Key Features
- 12 Gigabit PoE+ ports and 2 SFP+ uplink ports
- Fanless design for silent, low-maintenance deployment
- ~68 Gbps switching capacity and ~41.7 Mpps throughput
- ~139 W PoE+ budget for powering access devices
- Full Layer 3 routing (static, RIP, OSPF) and stacking (VSF)
- Security and QoS features built in
- Ideal for small offices, access edge, or branch network use
Meta Description
The HPE Aruba Networking 2930F 12G PoE+ 2G/2SFP+ Switch is a compact fanless Layer 3 switch with 12 PoE+ ports, 2 × 10G uplinks, ~68 Gbps switching, ~139 W PoE budget, full routing, stacking, and silent operation—perfect for branch and edge deployments.
| Brand | Aruba |
|---|
