Datalogic QuickScan QBT2430‑BK‑BTK1 Barcode Scanner
KSh 38,500 (KSh 44,660 Incl VAT)
- 2D Area Imager – Reads all standard 1D/2D barcodes including QR, PDF417, Data Matrix
- Bluetooth Wireless – Up to 25 meters range, supports HID and SPP profiles
- Green Spot Technology – Visual good-read feedback directly on the code
- Comfortable Aiming System – Soft red illumination with dual blue LED targeting
- Batch Mode Capability – Stores 500+ barcodes when out of range
- Rechargeable Battery – User-replaceable lithium-ion, USB or cradle charging
- Durable Build – IP52-rated and 1.5 m drop-resistant design
- Universal Compatibility – Works with Windows, Android, iOS via USB or Bluetooth

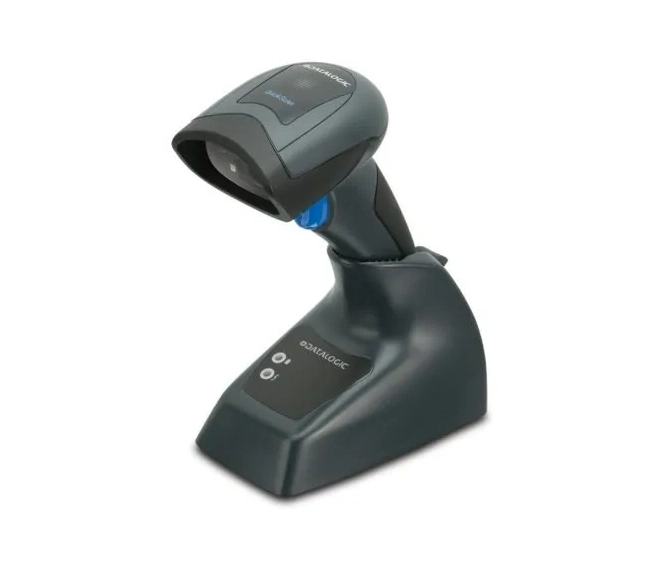

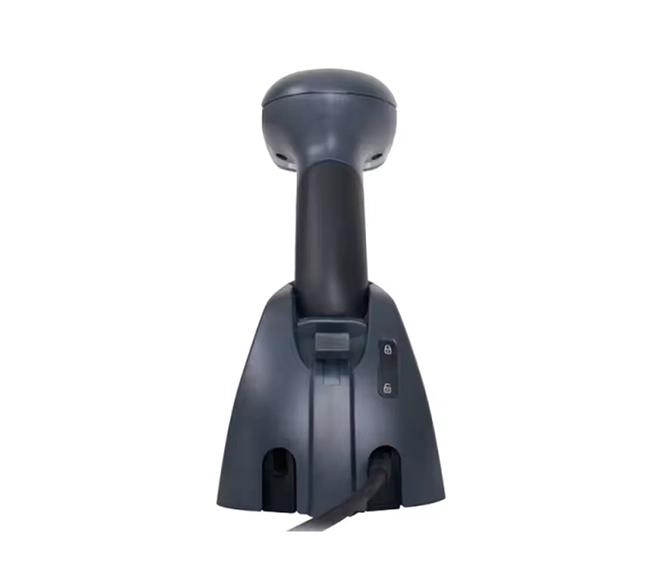

The Datalogic QuickScan QBT2430‑BK‑BTK1 is a rugged cordless 2D imager offering versatile barcode scanning in retail, hospitality, and logistics. Featuring Bluetooth connectivity, a user-friendly aiming system, Green Spot confirmation, and a durable build rated for 1.5 m drops and IP52 protection, it ensures reliable performance. With hot-swappable battery, offline batch mode for 500+ scans, and compatibility with iOS/Android and USB hosts, it’s a flexible and compact scanning solution.
Here are the very detailed specifications for the Datalogic QuickScan QBT2430-BK-BTK1 cordless 2D imager:
🛠️ Device Overview
- Model: QuickScan QBT2400 series (QBT2430-BK-BTK1 variant)
- Type: Cordless 2D area-imager scanner with base station and USB cable
- Ideal For: Retail point-of-sale, field mobility, hospitality, logistics
📷 Imaging & Performance
- Imager Type: 2D VGA scan engine
- Scan Speed: Up to 400 scans/sec
- Supported Codes: All common 1D (e.g., Code 39, GS1 DataBar) and 2D (e.g., QR, Data Matrix, PDF417), postal, stacked, composites, Digimarc
- Aiming System: Soft red illumination plus dual blue aiming triangles to reduce eye strain
- Good-Read Indicator: “Green Spot” projected on the barcode
📡 Wireless & Communication
- Bluetooth Version: 3.0 Class 2
- Profiles Supported: HID & SPP
- Wireless Range: Up to 25 meters (open air)
- Batch Mode: Stores 500+ 1D barcodes offline if out of range
🔋 Power & Battery
- Battery: User-replaceable Li-ion pack
- Charging Options:
- In-cradle (charging + data communication)
- Direct micro-USB charging from scanner
- Hot-swappable: Swap battery without powering down the device
🔌 Interfaces
- Base Station Ports: USB and optional RS-232
- USB: Scanner operates as HID keyboard emulator
- RS-232: Available via cradle in QBT2430-BK-BTK2 variant
📏 Physical & Durability
- Dimensions: ~170 × 65 × 70 mm
- Weight: ~119 g (stand alone)
- Build Quality: Durable handheld with high-drop resistance
- Drop Test: Survives 1.5 m drops onto concrete
- Ingress Rating: IP52 – dust-protected and splash-resistant
🌡️ Environmental Conditions
- Operating Temp: 0 °C to 50 °C
- Storage Temp: −40 °C to +70 °C
- Humidity: Up to 95% non-condensing
🧩 Usability & Maintenance
- Indicator Feedback: Green Spot + LED battery/status indicator
- Charging/Swap System: Tool-free, user-friendly latch mechanism
- Maintenance Tools: Aladdin app + utilities for configuration and firmware updates
- Battery & Contacts: Modular for easy replacement
✅ Summary
The Datalogic QuickScan QBT2430‑BK‑BTK1 is a rugged, high-speed cordless 2D barcode reader optimized for POS and mobile operations. With a long wireless range, ergonomic aiming aids, durable construction, and flexible charging modes, it ensures reliable, high-performance scanning even in demanding environments.
| Brand | Datalogic |
|---|
