RG-NBS3200-24GT4XS-P, 24-Port Gigabit Cloud Managed PoE Switch

The Ruijie RG-NBS3200-24GT4XS-P is a 24-port Gigabit Layer 2+ cloud-managed PoE switch designed for high-performance enterprise networks. It offers robust power delivery, advanced Layer 2 features, and seamless cloud management. Below are its detailed specifications:

🔌 Hardware Specifications

• Ports: 24 × 10/100/1000Base-T RJ45 PoE/PoE+ ports
• Uplink: 4 × 10G SFP+ slots
• PoE Power Budget: 370W total; up to 30W per port (IEEE 802.3af/at compliant)
• Switching Capacity: 128 Gbps
• Forwarding Rate: 95.24 Mpps
• MAC Address Table: 16,000 entries
• Packet Buffer: 12 Mbit
• VLAN Support: Up to 4094 VLANs
• Jumbo Frame Size: 9216 bytes
• Dimensions: 440 mm (W) × 357.6 mm (D) × 43.6 mm (H)
• Weight: 4.75 kg (with packaging)
• Power Supply: Fixed, 100–240V AC, 6A
• Power Consumption: ≤ 432W

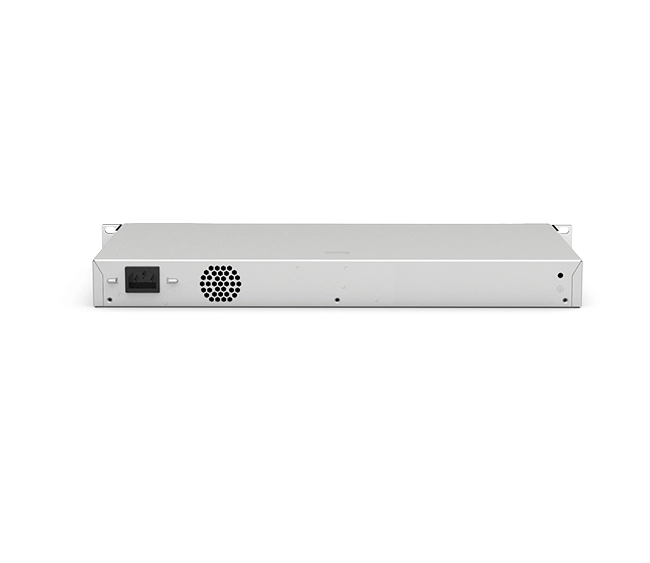

• Cooling: Single fan with adaptive speed; airflow from left to right
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 90% RH
• Storage Humidity: 5% to 95% RH
• Surge Protection: 6 kV on ports
• Certifications: CE, RoHS

🧠 Layer 2 & Management Features

• Spanning Tree Protocols: STP (IEEE 802.1d), RSTP (IEEE 802.1w)
• Link Aggregation: Supports up to 16 aggregation groups with 8 members per group
• VLAN Types: Port-based, MAC-based, IP-based, Voice VLAN
• Access Control Lists (ACLs): Supports IP standard ACL, MAC extended ACL, IP extended ACL, and port ACL for Layer 2 ports
• Quality of Service (QoS): Port-based speed limit (ingress/egress)
• Security Features: Port protection, hardware CPU protection, DHCP snooping, IP source guard, anti-ARP spoofing
• Management: Web-based GUI, Ruijie Cloud, Ruijie Cloud app
• Other Features: LLDP/LLDP-MED, IGMP Snooping v1/v2/v3, Jumbo Frame support, loop prevention and notification, PoE usage alarm

📦 Package Contents

• RG-NBS3200-24GT4XS-P Switch
• AC Power Cord
• Rack Mounting Brackets
• Foot Pads
• Quick Start Guide
• Warranty Card
• Screws

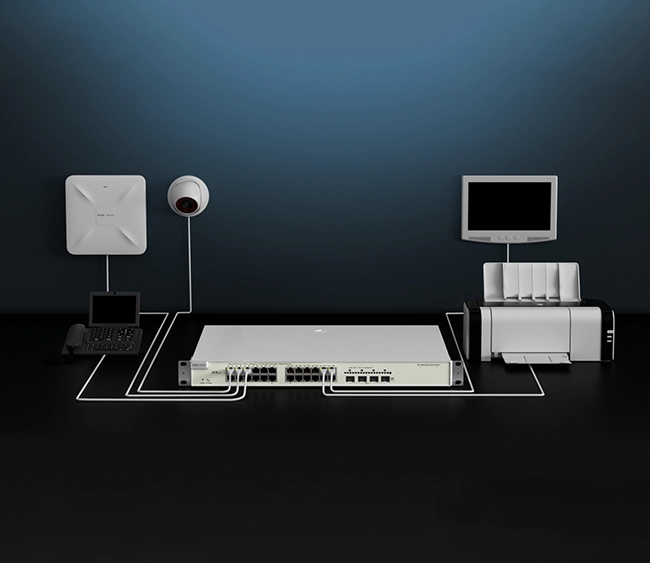

💼 Use Cases

This switch is ideal for:

• Enterprise networks requiring robust PoE support
• IP surveillance systems with high power demands
• Campus and educational institution networks
• Hospitality and retail environments
• Industrial and factory settings
