May 21, 2025RG-NBS3100-8GT2SFP-P, 10-Port Gigabit Layer 2 Cloud Managed PoE Switch
KSh 26,000 (KSh 30,160 Incl VAT)
- 10 Gigabit ports: 8 PoE+ + 2 SFP uplinks
- 125W total PoE power budget (IEEE 802.3af/at)
- Cloud-managed with lifetime free Ruijie Cloud access
- Zero-touch provisioning for fast deployment
- Auto IP camera recognition & optimization
- Loop prevention for network reliability
- Extended PoE range up to 250m
- VLAN, QoS, STP, and IGMP support
- 6kV surge protection on all ports
- Compact design, ideal for SMBs and CCTV setups

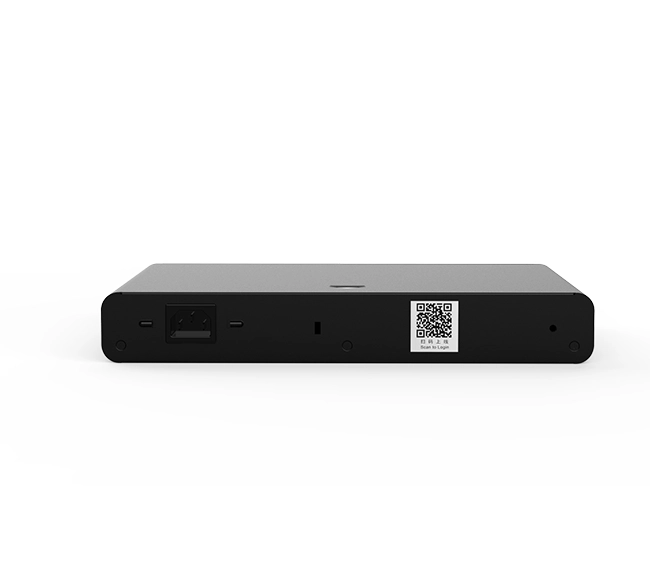

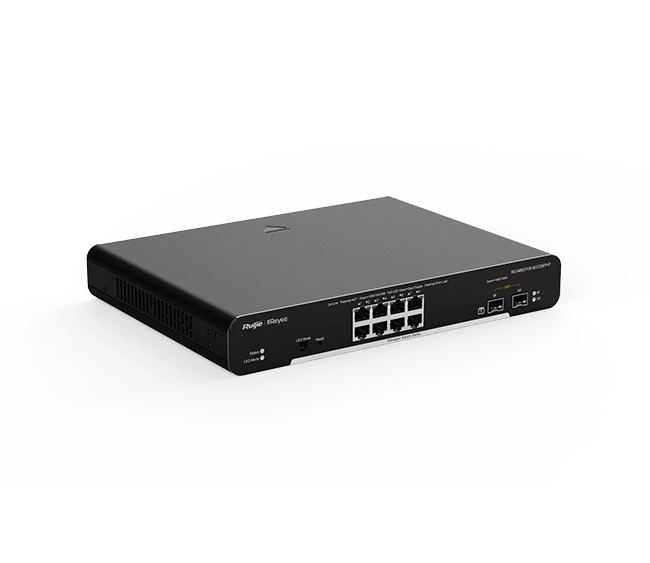

Ruijie RG-NBS3100-8GT2SFP-P, 10-Port Gigabit Layer 2 Cloud Managed PoE Switch
Overview
The Ruijie RG-NBS3100-8GT2SFP-P is a compact, high-performance Layer 2 managed PoE+ switch designed for small to medium-sized businesses, educational institutions, and surveillance systems. It features 8 Gigabit Ethernet PoE+ ports and 2 SFP uplink ports, providing a total PoE power budget of 125W. With cloud-based management capabilities, this switch simplifies network configuration, monitoring, and maintenance, making it ideal for powering IP cameras, wireless access points, VoIP phones, and other PoE-enabled devices.
Key Features
- 10 Gigabit Ports: 8 × 10/100/1000Base-T PoE+ ports and 2 × 1000Base-X SFP uplink ports.
- PoE Standards: Supports IEEE 802.3af/at with a total PoE power budget of 125W, delivering up to 30W per port.
- Switching Capacity: 20 Gbps.
- Forwarding Rate: 14.88 Mpps.
- MAC Address Table: Supports up to 8,000 entries.
- VLAN Support: Up to 4094 VLANs, including port-based, MAC-based, and IP-based VLANs.
- Surge Protection: 6 kV on all ports.
- Dimensions: 330 mm × 220 mm × 43.6 mm.
- Weight: Approximately 2 kg (with packaging).
- Operating Temperature: 0°C to 50°C.
- Operating Humidity: 10% to 90% RH.
- MTBF:
- Warranty: 2 years.
Cloud Management & Smart Features
- Ruijie Cloud Management: Lifetime free access for remote monitoring, configuration, and firmware updates via web and mobile apps.
- Zero-Touch Provisioning (SON): Simplifies deployment and reduces setup time.
- IP Camera Recognition: Automatically detects and optimizes settings for connected IP cameras, enhancing CCTV network performance.
- Loop Prevention: Automatically detects and prevents network loops to ensure service continuity.
- PoE Port Management: Supports individual port power control, reboot, and real-time alarms.
- Extended PoE Transmission: Supports distances up to 250 meters, ideal for large-scale deployments.
- VLAN Configuration: Allows for VLAN setup via the Ruijie Cloud App, facilitating network segmentation.
- Cable Testing: Enables detection of cable faults and miswiring.
Security & Performance Features
- Link Aggregation: Supports up to 8 groups with 8 members per group.
- IGMP Snooping: Supports v1/v2/v3 for efficient multicast traffic management
- Spanning Tree Protocols: Supports STP and RSTP for network redundancy.
- Access Control Lists (ACLs): Supports IP standard, MAC extended, and IP extended ACLs.
- Quality of Service (QoS): Supports port-based speed limiting and priority queuing.
- Energy Efficient Ethernet (EEE): Reduces power consumption during low data activity periods.
Package Contents
- Ruijie RG-NBS3100-8GT2SFP-P Switch
- Power Cord
- Mounting Brackets and Screws
- Quick Start Guide
- Warranty Card
Why Choose Ruijie RG-NBS3100-8GT2SFP-P?
- Compact and Efficient: Ideal for environments with limited space without compromising performance.
- Robust PoE Capabilities: Provides sufficient power for multiple PoE devices simultaneously.
- Cloud-Based Management: Simplifies network administration with remote access and control.
- Enhanced Security Features: Includes multiple security policies to protect your network.
- Scalability: Supports a large number of VLANs and MAC addresses, accommodating network growth.
- Durability: Designed with surge protection and a high MTBF for reliable long-term operation.
| Brand | Ruijie |
|---|
