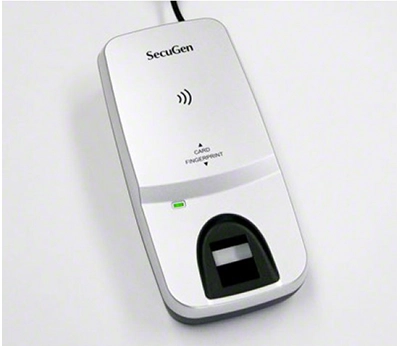

SecuGen Hamster Pro Duo CL

KSh 22,500 (KSh 26,100 Incl VAT)

Dual Authentication – Combines fingerprint biometrics with contactless smart card reading
FBI Certified U20 Sensor – 500 dpi optical sensor with Auto-On™ and SmartCapture™
Secure Smart Card Reader – Supports ISO 14443 A/B, MIFARE, DESFire, NFC (13.56 MHz)
FIPS 201 & FBI FAP 20 Compliant – Meets global biometric and identity standards
High-Speed USB Interface – Plug-and-play connectivity, no external power required
Cross-Platform Support – Works with Windows, Linux, Android, and Java SDK
Durable & Compact Design – Rugged, ergonomic body with scratch- and impact-resistant sensor
Encrypted Fingerprint Templates – Built-in spoof detection and secure template handling

SKU: XU20CL Categories: Biometric Readers, Security solutions Tag: Biometric readers

Description
Additional information

The SecuGen Hamster Pro Duo CL combines a FIPSCertified 500 dpi optical fingerprint scanner with a contactless smart card reader in one rugged device. It features dual-mode authentication with SmartCapture™ and Auto-On™ technologies, template encryption, and compliance with FIPS 201/PIV and Mobile ID FAP 20 standards. USB-powered and compatible across Windows, Linux, and Android, it’s ideal for secure access control, ID systems, and government programs.

Here are the very detailed specifications for the SecuGen Hamster Pro Duo CL

🔍 Device Overview

Model: Hamster Pro Duo CL (XU20CL™)
Type: Dual-mode fingerprint scanner + contactless smart card reader
Use Cases: Ideal for physical access control, secure ID verification, and national ID programs requiring dual-factor authentication

⚙️ Fingerprint Scanner (U20 Sensor)

Sensor: Optical U20 rugged sensor, maintenance-free
Resolution: 500 dpi
Image Size: 300 × 400 pixels
Platen Size: 18.2 × 22.9 mm
Effective Sensing Area: 15.24 × 20.32 mm
Image Format: 8-bit grayscale (256 levels)
Capture Speed: 0.2–0.5 seconds (SmartCapture™ technology)
Auto-On™: Automatic finger detection
Security & Standards:
- Certified FIPS 201 / PIV, FBI Mobile ID FAP 20
- Compliant with INCITS 378, ISO/IEC 19794-2 & ‑4, NIST MINEX
- Includes fake-finger rejection, latent-print removal, template encryption

📶 Smart Card Reader

Model: ACR1251U-A1 contactless smart card reader
Standards Supported: ISO 14443 A/B, MIFARE, DESFire, FeliCa, NFC (ISO 18092)
Operating Frequency: 13.56 MHz
Read/Write Speed: Up to 424 kbps
Range: Up to 50 mm (varies by tag)
Compliance: PC/SC, CCID; built-in SAM slot; bi-color LED & buzzer

🔌 Hamster Pro Duo CL Connectivity & Power

USB Interfaces:
- Fingerprint reader: USB 2.0 High-Speed
- Card reader: USB 2.0 Full-Speed
Power Requirement: 5 V DC via USB, max 450 mA (USB bus-powered)

📐 Physical & Environmental

Dimensions: 160 × 77.5 × 37.7 mm
Weight: 250 g
Operating Temperature: 0°C to +50°C
Operating Humidity: Up to 90% RH (non-condensing)
Durability: Rugged sensor resistant to scratches, impact, vibration, and ESD

🛠️ Certifications & Compliance

Device Certifications: FCC, CE, KCC, RoHS
Security & Biometric Compliance: FIPS 201 / PIV, FBI Mobile ID FAP 20, INCITS 378, ISO/IEC 19794, NIST MINEX
Smart Card Standards: ISO 14443 A/B, ISO 18092, PC/SC, CCID, ISO 7816

💻 Software Support

Supported OS: Windows 7/8/10 (both 32/64-bit); Windows Server 2008 R2 & 2012; Linux; Android 3.1+; Java
SDK Support: SecuGen SDK features Auto-On™, SmartCapture™, Device Recognition™, multi-device handling
Template Security: Encrypted templates via proprietary SecuGen formats

📦 In the Box & Warranty

Included: Dual-mode Hamster Pro Duo CL scanner
Warranty: 1-year limited manufacturer warranty

📄 Meta Description

SecuGen Hamster Pro Duo CL – Dual-mode fingerprint scanner (500 dpi) and smart card reader with FIPS 201/PIV, FAP 20, SmartCapture™, Auto-On™, USB-powered, secure template encryption.

Datasheet
