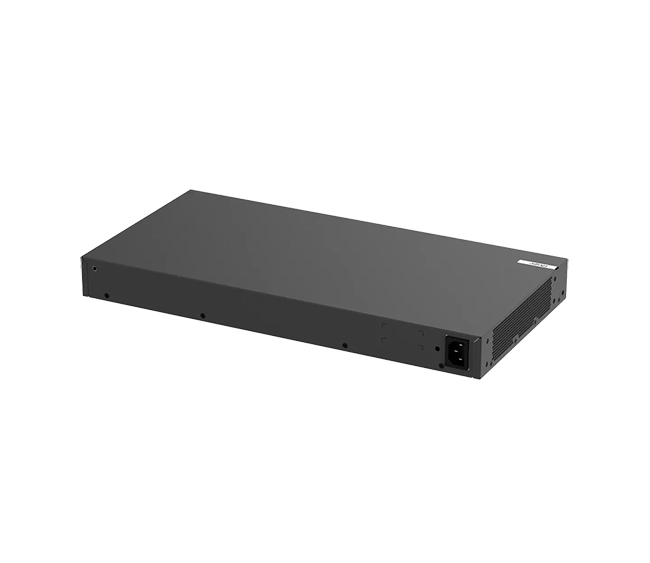

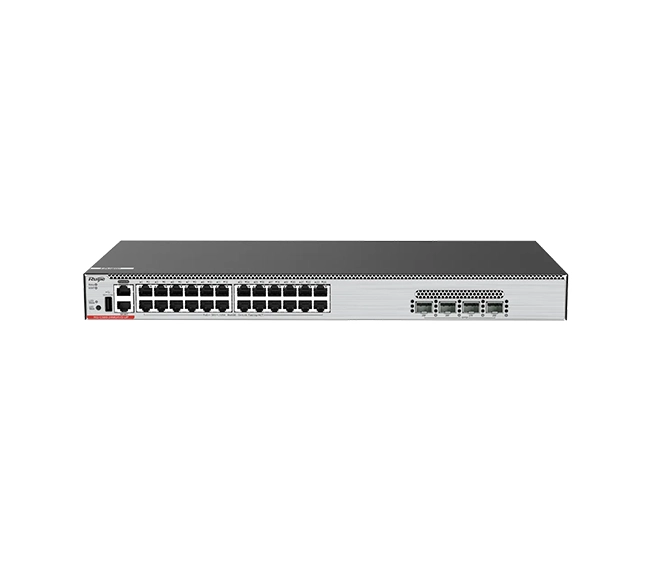

Ruijie RG-CS86-24MG4VS-UP 24-Port Multi-GE Switch

The Ruijie RG-CS86-24MG4VS-UP is a high-performance, cloud-managed Layer 3 switch designed for modern enterprise and campus networks. It offers multi-gigabit access, robust PoE capabilities, and advanced Layer 3 features.

🔑 Key Features

• Port Configuration:
  • 24 × 100M/1G/2.5G/5G Base-T ports with auto-negotiation
  • 4 × 10G/25G SFP28 uplink ports
• PoE Capabilities:
  • Supports PoE/PoE+/PoE++ (IEEE 802.3af/at/bt)
  • Maximum PoE budget: 370W
  • Up to 90W per port (HPoE)
• Performance:
  • Switching capacity: 440 Gbps
  • Forwarding rate: 327 Mpps
  • MAC address table: 32,768 entries
  • IPv4/IPv6 unicast routes: 16,000
  • IPv4 multicast routes: 4,000
  • IPv6 multicast routes: 2,000
  • ACL entries: Ingress 2,500 / Egress 1,000
• Layer 3 Features:
  • Supports static routing, RIP, OSPF, IS-IS, and BGP
  • DHCP server, client, relay, and snooping
  • IPv6 support
• Security & Management:
  • 802.1X authentication, MAC-based, and web-based authentication
  • Access Control Lists (ACLs)
  • DHCP snooping, IP-MAC-Port binding
  • SNMP v1/v2c/v3, RADIUS, TACACS+
  • Web-based GUI, CLI, and cloud management via Ruijie Cloud
• Hardware Specifications:
  • Dimensions: 442 × 220 × 43.6 mm (1 RU)
  • Weight: 3.65 kg
  • Power supply: Built-in AC (100–240V, 50/60Hz)
  • Cooling: 2 fixed fans
  • Operating temperature: 0°C to 45°C
  • Storage temperature: –40°C to +70°C
  • Operating humidity: 10% to 90% RH (non-condensing)
  • Storage humidity: 5% to 95% RH (non-condensing)
  • Surge protection: 6 kV
