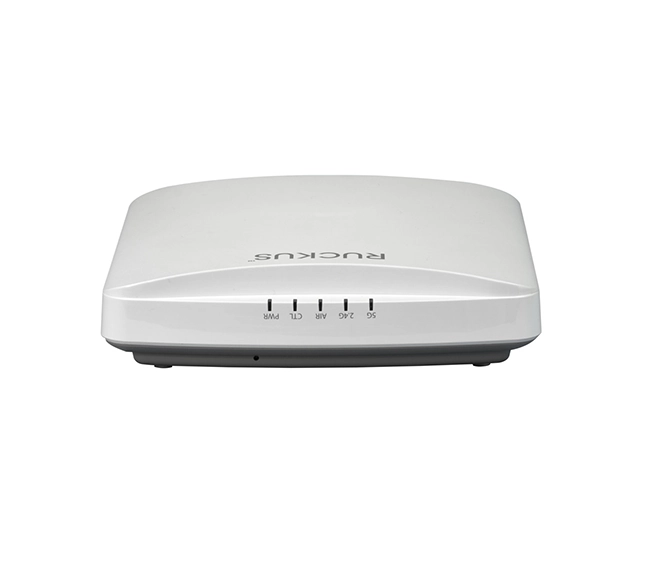

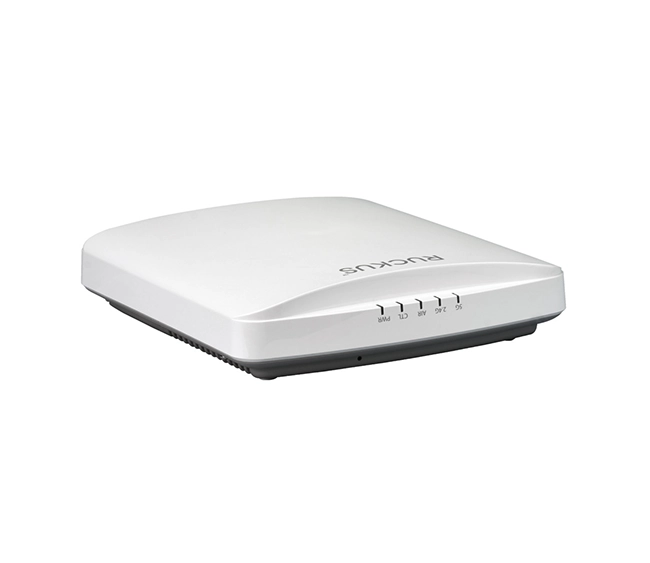

RUCKUS R650 Indoor Access Point

The RUCKUS R650 Indoor Access Point is a high-performance indoor Wi-Fi 6 (802.11ax) access point designed for mid-sized enterprises, schools, hotels, and high-density office spaces. It combines advanced MU-MIMO, OFDMA, and BeamFlex+ adaptive antenna technology to deliver exceptional throughput, capacity, and coverage. With support for up to 512 clients per AP, the R650 ensures reliable, low-latency connectivity even in demanding network environments.

Detailed Specifications

Wi-Fi Standards:

• IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6)
• Dual-band concurrent operation: 2.4 GHz & 5 GHz

Performance:

• Max Data Rate: 2974 Mbps (574 Mbps @ 2.4 GHz + 2400 Mbps @ 5 GHz)
• Streams: 4 spatial streams (2×2:2 @ 2.4 GHz, 4×4:4 @ 5 GHz)
• OFDMA & MU-MIMO for simultaneous multi-user performance
• Client Capacity: Up to 512 concurrent clients

Antenna & RF:

• BeamFlex+ adaptive antenna technology with polarization diversity
• Integrated antennas: 2.4 GHz (2×2), 5 GHz (4×4)
• Antenna Gain: 2.4 GHz: 3 dBi, 5 GHz: 5.2 dBi

Interfaces:

• 1 × 2.5 GbE RJ-45 port with PoE+ (802.3at)
• 1 × 1 GbE RJ-45 port
• 1 × USB 2.0 port
• 1 × Reset button

Power:

• Power Input: PoE+ (802.3at) or 12V DC adapter
• Power Consumption:
  • Idle: ~11W
  • Peak: ~18W

Security:

• WPA2, WPA3, WPA2/WPA3 Mixed Mode
• AES encryption
• Secure Boot & L2/L3/L4 ACLs
• Dynamic PSK

Management:

• Managed via RUCKUS SmartZone, ZoneDirector, Cloudpath, or Unleashed (controller-less)
• SNMP v1/v2c/v3
• Web-based GUI

Physical:

• Dimensions: 220 mm × 220 mm × 48 mm
• Weight: 1.15 kg
• Mounting: Ceiling or wall mount options

Environmental:

• Operating Temperature: 0°C to 50°C
• Humidity: 10%–95% non-condensing

Key Features

• Wi-Fi 6 with 2.5 GbE uplink for high-speed backhaul
• Up to 2974 Mbps total throughput
• OFDMA & MU-MIMO for high-density performance
• BeamFlex+ adaptive antenna technology for extended coverage
• Supports up to 512 clients per AP
• Flexible management (cloud, controller, or standalone)
