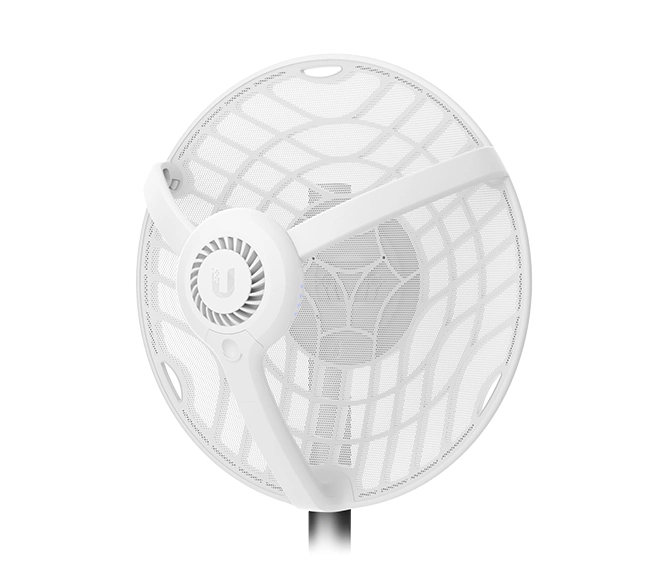

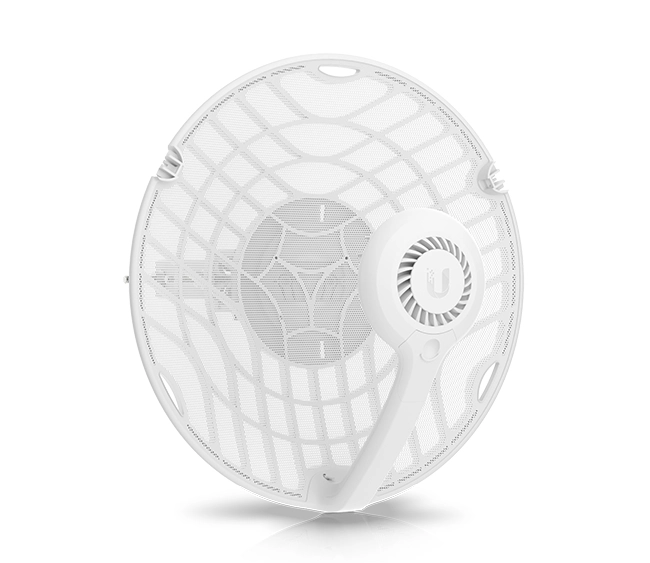

Ubiquiti airFiber 60 Long-Range – (AF60-LR) P-to-P Bridge

The Ubiquiti airFiber 60 Long Range (AF60-LR) is a high-performance 60 GHz point-to-point radio designed for long-range, high-throughput wireless bridging. Optimized for outdoor deployments, it delivers up to 1.8 Gbps of low-latency bandwidth over distances up to 12 km using a high-gain antenna and automatic beamforming technology. The AF60-LR is ideal for service providers and enterprises looking to extend fiber-like performance wirelessly with minimal interference.

---

Key Specifications

General

• Model: AF60-LR
• Manufacturer: Ubiquiti Networks
• Device Type: Long-Range 60 GHz Point-to-Point Radio
• Application: Wireless backhaul, enterprise bridging

---

Hardware Specifications

Processor & Memory

• CPU: ARM Cortex-A7
• System Memory: 256 MB DDR3 RAM
• Storage: 256 MB NAND

Enclosure & Mounting

• Enclosure Material: UV-stabilized plastic and aluminum
• Mounting: Integrated mount with alignment bracket
• Dimensions: 413 × 413 × 360 mm
• Weight: 3.9 kg (with mount)

---

Radio & Antenna

• Primary Frequency Band: 57–71 GHz
• Channel Bandwidth: 2160 MHz
• Modulation: 16QAM, QPSK, BPSK
• Maximum Throughput: 1.8 Gbps (full-duplex)
• Range: Up to 12 km (7.45 miles) line of sight
• Beamforming: Yes (auto alignment tracking)
• Antenna Gain: 38 dBi integrated directional

---

Backup 5 GHz Radio

• Function: Management access only (not for failover)
• Frequency Band: 5.1 – 5.9 GHz
• Antenna Gain: 16 dBi
• Purpose: Device management when 60 GHz is inaccessible

---

Interfaces

• 1 × Gigabit Ethernet Port (10/100/1000 Mbps)
• Power Supply Method:
  • PoE Input: 24V Passive PoE, 0.5A
  • PoE Adapter: 24V, 0.5A Gigabit PoE injector (included)
• Power Consumption: Max 11W

---

Performance & Features

• Latency: ~1 ms
• Adaptive Modulation: Yes
• Operating Modes: Point-to-Point only
• Weatherproof Rating: IP67
• Operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Wind Survivability: 200 km/h

---

Management & Software

• Management Platform: UISP (Ubiquiti Network Management System)
• Access: Web UI and UISP app
• Monitoring Features: Link statistics, signal quality, throughput

---

Compliance & Certifications

• Certifications: FCC, IC, CE
• Surge Protection: ±24kV ESD

---

Package Contents

• 1 × airFiber 60 LR Radio
• 1 × Mounting Bracket
• 1 × 24V, 0.5A Gigabit PoE Injector with Power Cord
• 1 × Quick Start Guide

---

Use Cases

• Long-range building-to-building connectivity
• Wireless ISP tower backhaul
• Rural or suburban high-speed wireless extensions
• Temporary or portable fiber-replacement links

---

Meta Description

Ubiquiti airFiber 60 LR is a long-range 60 GHz PtP bridge with 1.8 Gbps throughput, 12 km range, beamforming antenna, 38 dBi gain, IP67 enclosure, and UISP support—perfect for fiber-speed wireless links in demanding outdoor environments.
