The

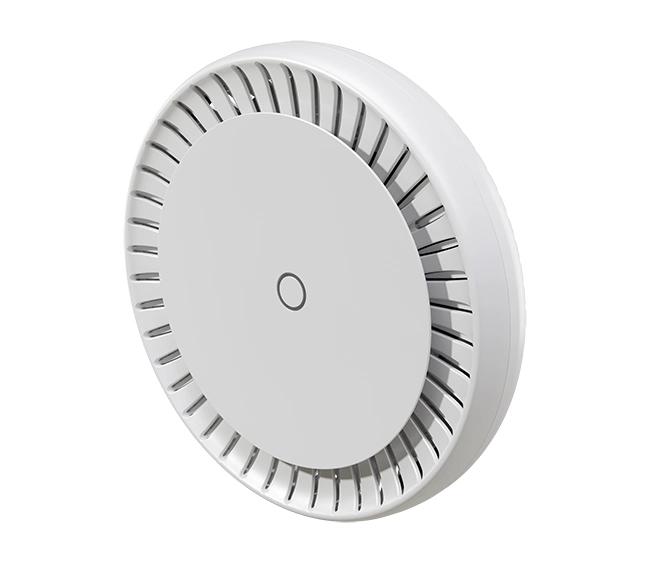

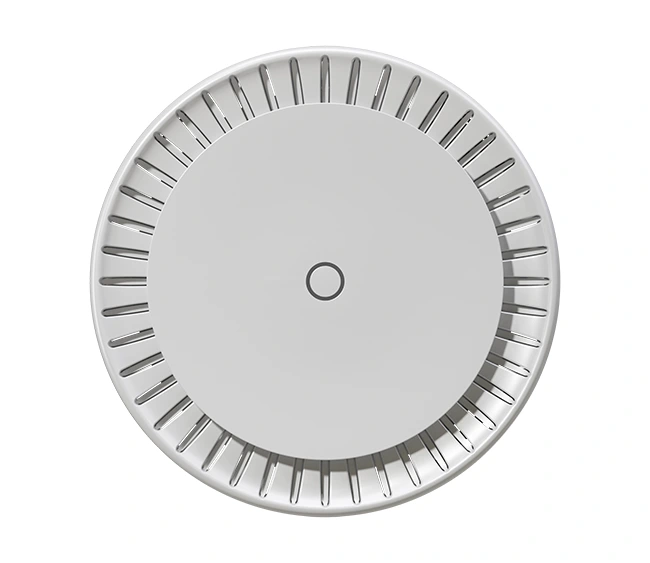

MikroTik cAPGi-5HaxD2HaxD (cAP ax) is a next-generation ceiling-mount wireless access point that brings the power of Wi-Fi 6 (802.11ax) to professional indoor environments. Designed for high-capacity enterprise deployments, it offers dual-band support, fast Gigabit Ethernet, improved spectral efficiency, and higher throughput.
Whether deployed in offices, hotels, shopping centers, or educational institutions, the cAP ax combines sleek design with industrial-grade performance, powered by MikroTik's RouterOS with a Level 4 license.
🧠 Core Hardware Specifications
- Model: cAPGi-5HaxD2HaxD
- Product Name: cAP ax
- CPU: Quad-core ARM Cortex-A53, 864 MHz (IPQ-6010)
- Architecture: ARM 64-bit
- RAM: 1 GB
- Storage: 128 MB NAND
- Operating System: RouterOS v7 (pre-installed)
- License Level: 4
📶 Wireless Specifications
- Wireless Standards:
- 2.4 GHz: 802.11b/g/n/ax
- 5 GHz: 802.11a/n/ac/ax
- Dual-Band Operation: Simultaneous
- 2.4 GHz Band:
- Max Data Rate: Up to 574 Mbps
- Chains: 2×2 MIMO
- Antenna Gain: 4 dBi
- 5 GHz Band:
- Max Data Rate: Up to 1201 Mbps
- Chains: 2×2 MIMO
- Antenna Gain: 5.5 dBi
- Antenna Type: Integrated omnidirectional
- Features: OFDMA, MU-MIMO, BSS coloring, Beamforming
- Coverage: Designed for dense indoor environments
🌐 Networking Interfaces
- Ethernet Ports:
- 2 × 10/100/1000 Mbps Gigabit Ethernet
- Port 1 supports 802.3af/at PoE-in
- Port 2 supports passive PoE-out (up to 57 V, 600 mA)
⚡ Powering Options
- Supported Input Voltage: 18 – 57 V DC
- Powering Methods:
- PoE-in (802.3af/at)
- DC jack (optional)
- Power Output: Passive PoE on Port 2
- Maximum Power Consumption: 15 W
- Power Adapter Included: Yes (24 V, 1.5 A)
🔐 Software & Features
- RouterOS v7 with License Level 4
- Routing Protocols: Static, OSPF, BGP, RIP, MPLS
- Security Features:
- WPA3 support
- Advanced firewall
- IPsec, WireGuard, L2TP, SSTP, PPTP
- Management Interfaces: Winbox, WebFig, CLI, SNMP, SSH
- Monitoring Tools: Bandwidth Test, Torch, Packet Sniffer
- Wireless Controller: Full CAPsMAN support
📦 Physical & Environmental
- Enclosure: Ceiling-mountable low-profile plastic housing
- Dimensions: Ø 170 mm × 30 mm
- Weight: ~330 g
- Mounting: Ceiling and wall mount kits included
- Operating Temperature: -40°C to +70°C
- Cooling: Passive (no fan)
- LEDs: Power, Wireless status
