The

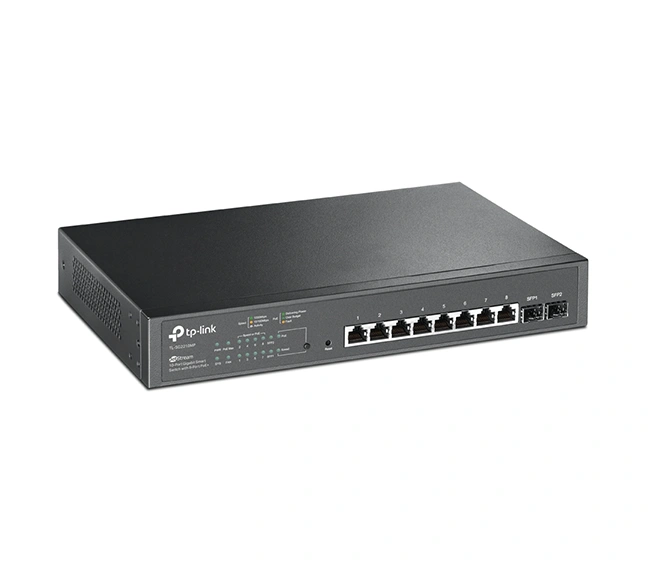

TP-Link JetStream 10-Port Gigabit Smart Switch 8-Port PoE+
(TL-SG2210MP) is a professional-grade 10-port smart managed switch with 8 Gigabit PoE+ ports and 2 SFP slots, designed for business-class networking. It supports advanced Layer 2 and Layer 3 features, centralized cloud management via Omada SDN, and delivers a total PoE power budget of 150 W.
Ideal for deploying IP cameras, VoIP phones, access points, and other PoE-powered devices, it combines performance, flexibility, and security in one compact device.
🧠 Hardware Specifications
- Ports:
- 8 × 10/100/1000 Mbps RJ45 ports with PoE+
- 2 × Gigabit SFP slots for fiber uplinks
- PoE Standard: IEEE 802.3af/at
- Max PoE Power per Port: 30 W
- Total PoE Budget: 150 W
- Switching Capacity: 20 Gbps
- Forwarding Rate: 14.88 Mpps
- MAC Address Table: 8K entries
- Buffer Memory: 512 KB
- Jumbo Frame: 9 KB support
- Fan: 1 × Smart fan for cooling
- Dimensions: 294 × 180 × 44 mm
- Mounting: Rackmount and desktop options
- Casing: Durable metal case
- Weight: Approx. 2.1 kg
- Power Input: 100–240V AC, 50/60 Hz
- Max Power Consumption: 174.4 W
- Energy-Efficient Ethernet (EEE): Supported
⚡ PoE & Smart Features
- PoE Auto-Recovery: Automatically reboots unresponsive PoE devices
- Port Prioritization: Ensures critical devices receive power first
- Extend Mode: Up to 250 m data + power transmission on ports 1–4
- PoE Scheduling: Manage power usage by time
- Loop Prevention and Storm Control: Network stability and redundancy
- Omada SDN Integration: Unified cloud management with zero-touch provisioning
🌐 L2 / L3 & Security Features
- VLAN Support: 802.1Q VLAN, port-based, voice VLAN
- QoS: Based on port, 802.1p, DSCP, IP, MAC
- IGMP Snooping & MLD Snooping: Optimized multicast traffic
- Link Aggregation: 802.3ad LACP
- Spanning Tree Protocol: STP / RSTP / MSTP
- Access Control Lists (ACLs): L2–L4 filtering for security policies
- DoS Defense and Port Security
- Static Routing (Layer 3)
- DHCP Snooping and Option 82 Support
- 802.1X Authentication and RADIUS
- Management Features:
- Web GUI, CLI, SNMP v1/v2c/v3, RMON
- Dual Image firmware
- HTTPS and SSH access
- Centralized Omada Controller or Cloud Management
