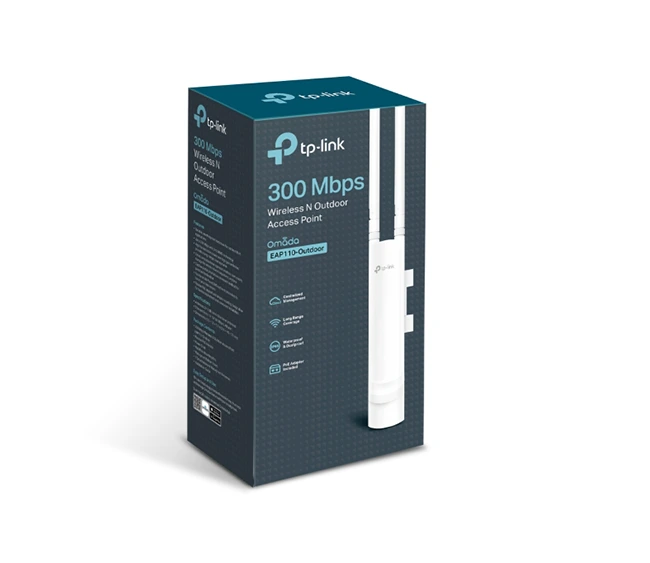

The TP-Link 300Mbps Wireless N Outdoor Access Point - EAP110-Outdoor is a weatherproof N300 wireless outdoor access point designed for long-range Wi-Fi coverage in parks, schools, farms, and outdoor event areas. Featuring passive PoE support, multiple operational modes, and centralized Omada SDN management, it delivers stable, extended wireless connectivity in harsh outdoor conditions.
Detailed Specifications
Wi-Fi Standards:
- IEEE 802.11b/g/n
- 2.4 GHz single band
Speed Performance:
- Up to 300 Mbps at 2.4 GHz
Frequency Bands:
Antenna Design:
- 2× 5 dBi detachable omnidirectional antennas
- Outdoor-optimized coverage with strong penetration
Operation Modes:
- Access Point Mode
- Multi-SSID Mode
Ports:
- 1× 10/100 Mbps Ethernet Port (supports passive PoE)
Coverage & Capacity:
- Up to 200 meters+ coverage in open areas
- High transmission power (up to 27 dBm) for long-range Wi-Fi
- Supports up to 8 SSIDs
Security:
- WPA/WPA2-Enterprise encryption
- Captive portal for guest authentication
- Access control and MAC filtering
Management Features:
- Omada SDN cloud and local controller support
- Web UI and Omada app management
- VLAN support for network segmentation
Durability:
- Weatherproof enclosure with IP65 rating
- Lightning protection: 6 kV
- ESD protection: 15 kV
Power Supply:
- Passive PoE (up to 60 meters) for flexible installation
- Includes passive PoE adapter
Mounting Options:

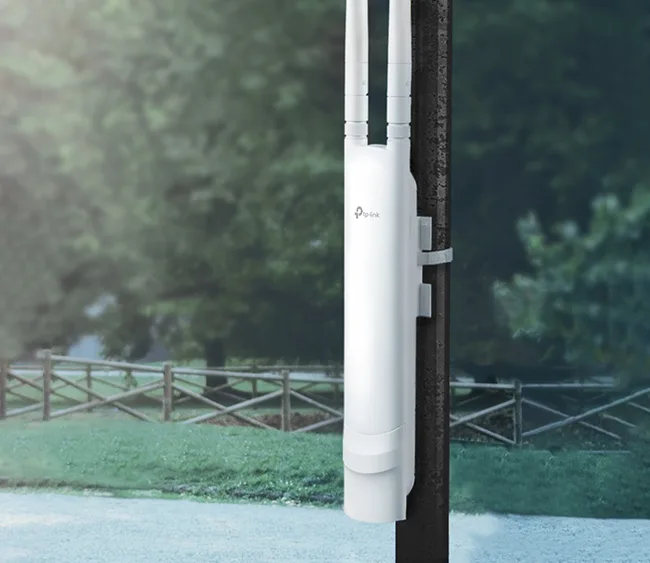

- Pole or wall mount (mounting kit included)
Dimensions:
- 8.2 × 3.4 × 1.9 in (209 × 94 × 51 mm)
Key Features
- Outdoor N300 wireless access point with 2.4 GHz coverage
- Up to 200+ meters range with high-power transmission
- IP65 weatherproof casing for harsh environments
- Supports Omada SDN for centralized management
- Passive PoE for flexible deployment
