Video Input & OutputAll models support
8-channel IP camera input. HDMI output supports up to
4K (3840×2160/30Hz) for crystal-clear display, with VGA output for legacy monitors. Simultaneous HDMI/VGA output is available on most models
.
Decoding & Playback- Compression: Supports H.265+/H.265/H.264+/H.264, saving storage and bandwidth without sacrificing quality .
- Synchronous Playback: All 8 channels can be played back simultaneously, with variable playback speeds and event-based search .
- Decoding Capability: Varies by model — typically 8-ch @ 2MP or 4-ch @ 4MP at 25fps. Higher-end PoE+ models reach 8-ch @ 4MP or 4-ch @ 8MP .

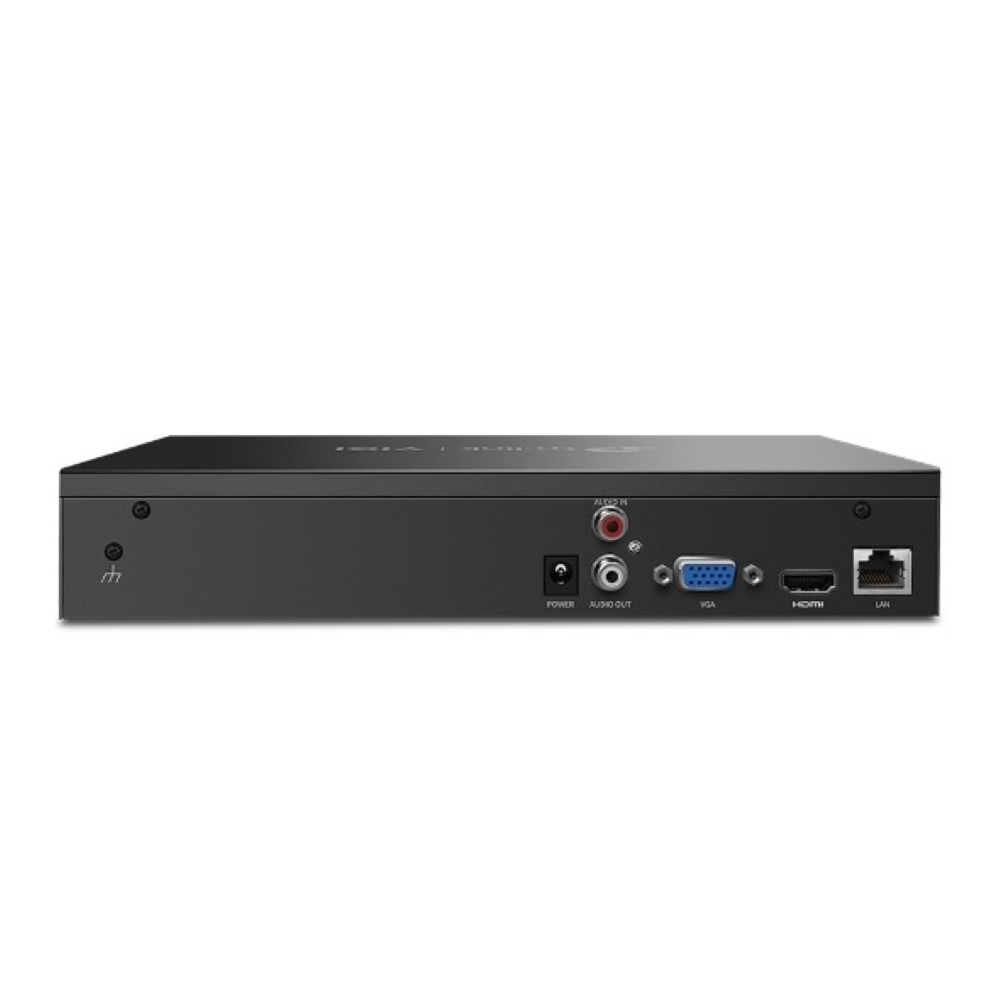

Storage & Hardware- NVR1008H (Standard): 1× SATA interface, up to 16 TB, 2× USB 2.0, 1× RJ-45 10/100 Mbps port .
- NVR1008H-8MP (PoE+): 1× SATA interface, up to 16 TB, 2× USB 2.0, 1× RJ-45 10/100 Mbps port .
- NVR2008H-8MP (PoE+): 2× SATA interfaces, up to 32 TB total, 1× USB 3.0 + 1× USB 2.0, 1× Gigabit RJ-45 port, eSATA port, and Alarm I/O (6/4) .
PoE Power (Select Models)The PoE+ variants eliminate separate camera power supplies. Each of the
8 PoE+ ports can deliver up to
30W per port, with a total budget of
90W, 93W, or 113W depending on the specific model
.
Management & Compatibility- Remote Access: Managed via the VIGI app (Android/iOS), Web UI, or VIGI Security Manager .
- Compatibility: Supports ONVIF (Profile S/T) for third-party cameras .
- Auto Initialize: One-click setup for cameras and HDD parameters, reducing configuration time .
- Two-Way Audio: Voice intercom support through connected cameras
