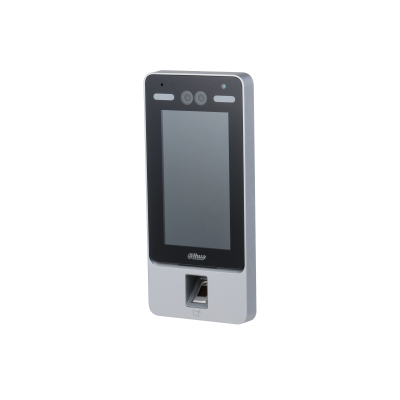

Device Type: Standalone Face Recognition Access Controller & Time Attendance Terminal (AI / Pro Series)
Model / SKU: DHI-ASI7214Y-V3 (official model: ASI7214Y-V3)
Brand: Dahua
Product Type: Standalone
Display & Camera:- Display: 7-inch IPS Capacitive Touchscreen; Resolution 600 (H) × 1024 (V)
- Camera: 2 MP CMOS Wide-Angle WDR Lens; WDR 120 dB; Auto White Light & Auto IR Light Compensation
Verification Methods: Face, Fingerprint, IC Card, Password, Remote Unlock, and any Combination of Credentials; Unlock by Period Supported
Face Recognition Performance:- Distance: 0.3 m – 2.0 m (0.98 ft – 6.56 ft)
- Human Height Range: 0.9 m – 2.4 m (2.95 ft – 7.87 ft)
- Accuracy: > 99.5%
- Comparison Speed: 0.35 s per person (1:N)
- Profile Recognition: Supported (angle 0°–90°)
- Liveness Detection: Yes — anti-spoofing against photos/videos
Fingerprint Recognition:- Sensor Type: Capacitive Fingerprint Sensor
- Verification Mode: 1:N
- Comparison Time: ≤ 1.5 s
Capacity:- Users: 50,000
- Faces: 50,000
- Fingerprints: 10,000
- Cards: 50,000
- Passwords: 50,000
- Administrators: 50
- Records: 100,000 events
Data Ports & Communication:- Network Port: 1 × 10M/100M Ethernet Port
- RS-485: 1 Port
- RS-232: 1 Port
- Wiegand: 1 Input/Output
- USB: 1 × USB 2.0 Port
- Alarm Input: 2 (Switch Quantity)
- Alarm Output: 2 (Relay)
- Peripheral Card Reader: Supports 1 × RS-485 and 1 × Wiegand Reader
- Network Protocols: IPv4, RTSP, RTP, TCP, UDP, P2P; OSDP Protocol Supported
- Interoperability: CGI, SDK & API
Access Control Functions: Anti-passback, Tamper Alarm, Duress Alarm, Duress Fingerprint, Intrusion Alarm, Door Sensor Timeout, Illegal Card Exceeding Threshold Alarm, First-Card Unlock, Remote Verification, Multiple Card Authentication, Real-Time Surveillance, Web Configuration
User Types: General Users, Patrol Users, VIP Users, Guest Users, Disabled Users
Period / Schedule: 128 Period Lists; 128 Holiday Periods
System: Main Processor: Embedded Processor (Dual-Core 900 MHz); RAM: 2 GB; ROM: 8 GB
Power Supply: DC 12V, 2A (Power Supply Included); Power Consumption 12W
Casing Material: PC + ABS
Physical:- Product Dimensions (W×H×D): 283.0 mm × 130.0 mm × 36.9 mm (11.14" × 5.12" × 1.45")
- Packaging Dimensions: Controller: 380 mm × 235 mm × 124 mm; Protective Case: 494 mm × 402 mm × 275 mm
- Weight: 1.5 kg (Approx.)
Environmental: Working Temperature: –10°C to +55°C (+14°F to +131°F)
Key Specs: Dahua DHI-ASI7214Y-V3 Face Recognition Access Controller, 7" IPS Touchscreen (600×1024), 2 MP CMOS WDR Camera (120 dB) with Auto IR/White Light, Face/Fingerprint/IC Card/Password/Remote/Combination Unlock, 50,000 Users / 50,000 Faces / 10,000 Fingerprints / 50,000 Cards / 50,000 Passwords / 100,000 Records, Face Recognition 0.35s at >99.5% Accuracy, Capacitive Fingerprint Sensor (1:N, ≤1.5s), Profile Recognition (0°–90°), Liveness Detection, TCP/IP, RS-485, RS-232, Wiegand, USB 2.0, 2 Alarm Inputs + 2 Relay Outputs, Anti-passback, Duress/Tamper/Intrusion Alarms, 128 Periods & 128 Holidays, DC 12V 2A (12W, Adapter Included), PC+ABS Housing, 283×130×36.9mm, 1.5kg, –10°C to +55°C
Usage: Single Door Access Control Systems, Office & Commercial Building Entrances, Server Rooms, Data Centers, Retail Stores, Employee Time & Attendance Tracking, High-Security Facilities, and Any Installation Requiring Multi-Factor Biometric Access Control with Face, Fingerprint, Card, and Password Verification, Profile Recognition, and Comprehensive Alarm Management
