Video Input & Output
All models support
16-channel IP camera input with
80 Mbps incoming bandwidth (some 2016H variants offer 160 Mbps or 320 Mbps)
. They feature
1× HDMI output supporting up to
4K (3840×2160/30Hz) and
1× VGA output, with simultaneous output on most models
.
Decoding & Playback
- Compression: Supports H.265+/H.265/H.264+/H.264 for efficient storage .
- Synchronous Playback: All 16 channels can be played back simultaneously .
- Decoding Capability: Typically 8-ch @ 2MP or 4-ch @ 4MP at 25fps. Some higher-end 2016H variants reach 10-ch @ 1080P or 16-ch @ 1080P .
Storage & Hardware

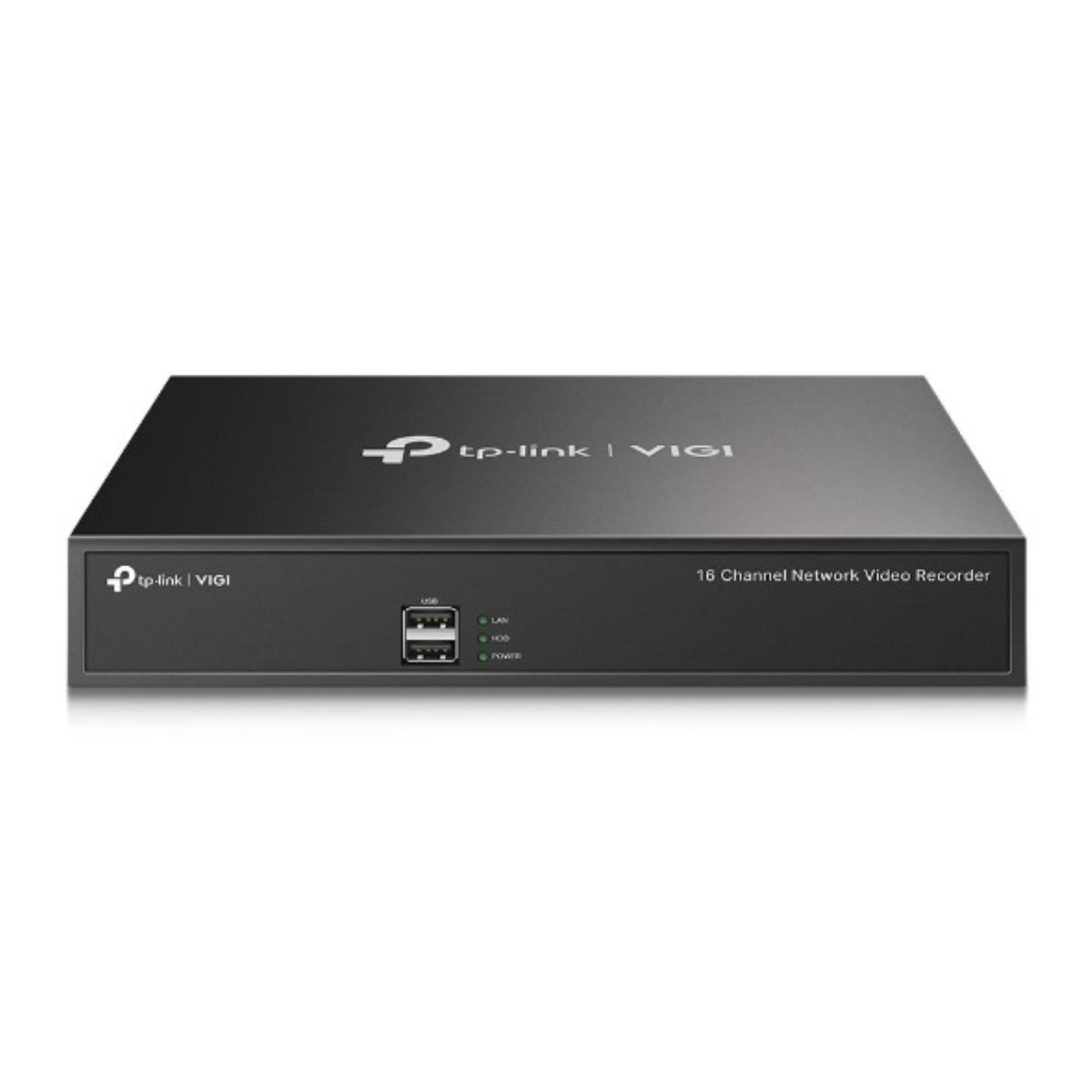

- NVR1016H (Standard): 1× SATA interface, up to 16 TB per HDD, 2× USB 2.0, 1× RJ-45 10/100 Mbps port .
- NVR2016H (Non-PoE): 2× SATA interfaces, up to 16 TB per HDD, 1× USB 3.0 + 1× USB 2.0, 1× Gigabit RJ-45 port, eSATA port, and Alarm I/O (6/4) .
- NVR2016H-16P (PoE+): Includes all non-PoE features plus 16× PoE+ ports with a 90W or 140W power budget for directly powering cameras .
PoE Power (Select Models)
The PoE variants eliminate the need for separate camera power supplies. Each of the
16 PoE+ ports can deliver up to
30W per port, with a total budget of
90W or 140W depending on the specific model
.
Management & Compatibility
- Remote Access: Managed via the VIGI app (Android/iOS) or PC client .
- Compatibility: Supports ONVIF (Profile S/T/G) for third-party cameras .
- Auto Initialize: One-click setup for cameras and HDD parameters .
- Two-Way Audio: Voice intercom support for communication through connected cameras .
