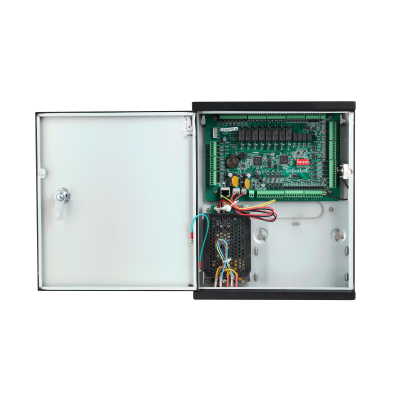

Device Type: Eight Door One-Way Access Controller
Model / SKU: DHI-ASC1208C-S (also listed as ASC1208C-S)
Brand: Dahua
Main Processor: 32 Bit
Memory: 16M Flash
Input / Output Ports:- Inputs: 20 Total — 8 × Door Sensor, 8 × Exit Button, 4 × Alarm
- Outputs: 12 Relays — 8 × Door Lock, 4 × External Alarm
Reader Interface: 8 × Reader Ports
Reader Communication: Wiegand 26/34, RS-485
Capacity:- Card Holders: 100,000
- Events / Records: 150,000
Control Mode: Eight Door One-Way Access Control
Access Control Functions:- Anti-passback
- Multi-door Interlock
- Multi-card Unlock
User Management: General, VIP, Guest, Patrol, Blacklist, Duress
Alarm Functions: Door Time-out Alarm, Intrusion Alarm, Duress Alarm, Tamper Alarm
Period / Schedule: Supports 128 Groups of Schedule, 128 Groups of Period, 128 Groups of Holiday Period
Interface to PC: RJ45 (10/100M)
General: RTC (Real-Time Clock) — Yes
Power Supply: AC85–AC264V, 50/60Hz
Operating Temperature: −30°C to +60°C
Working Humidity: ≤95%
Dimensions (W×D×H): 266 mm × 87 mm × 290 mm
Weight: 2 kg
Working Environment: Indoor
Certifications: CE, FCC
Key Features:- Support 100,000 Valid Cards & 150,000 Records
- Support Multiple Cards
- Support Card, Password, Fingerprint, and Combination
- TCP/IP Interface to PC
- Wiegand or RS-485 Interface to Readers
- Anti-passback, Multi-door Interlock, Multi-card Open
- Watchdog Function Ensures Device Free from Halting
- Surface-Mounted Installation
- Accumulator Battery Extension
Key Specs: Dahua DHI-ASC1208C-S Eight Door One-Way Access Controller, 32-Bit Processor, 16M Flash, 100,000 Card Holders, 150,000 Events, 8 Reader Ports (Wiegand 26/34, RS-485), 20 Inputs (8 Door Sensor + 8 Exit Button + 4 Alarm), 12 Relay Outputs (8 Door Lock + 4 External Alarm), Anti-passback, Multi-door Interlock, Multi-card Unlock, 128 Schedules/Periods/Holidays, RJ45 (10/100M) to PC, RTC, AC85–AC264V Power Supply, −30°C to +60°C Operating Temperature, 266×87×290mm, 2kg, Indoor, CE & FCC Certified
Usage: Multi-Door Access Control Systems, Corporate Offices, Data Centers, Government Buildings, Banking Facilities, Industrial Sites, and Any Installation Requiring Centralized Management of Up to Eight One-Way Controlled Doors
