The

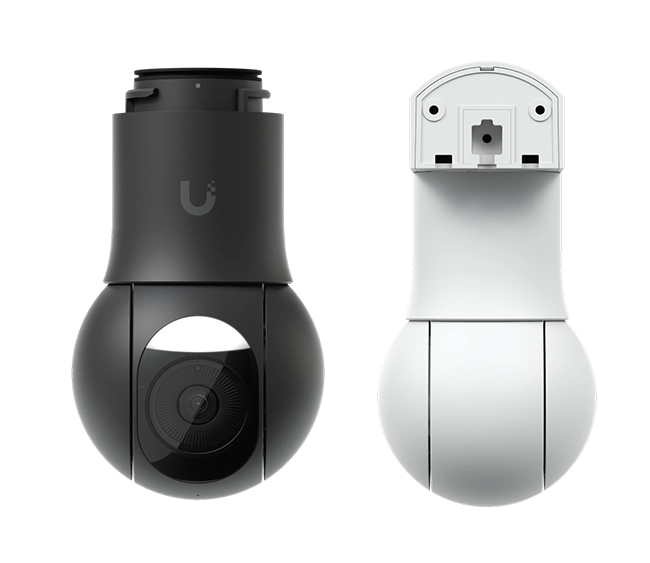

Ubiquiti G5 PTZ (UVC-G5-PTZ) is a full-weatherproof, ultra-fast 2K 4MP PTZ camera featuring 2x optical zoom, motorized pan/tilt, and flexible mounting options for comprehensive surveillance coverage. It captures high-quality 2688 x 1512 resolution video at 30 FPS and offers a variable field of view from 99.7° wide to 45.5° telephoto. Designed for outdoor use with IP66 and IK04 ratings, it includes built-in IR LEDs and a 400-lumen spotlight for clear night vision up to 20 meters. The camera also features an integrated microphone (disableable), PoE+ support, and advanced AI-powered detection for people, vehicles, and animals—along with auto-tracking—seamlessly managed via UniFi Protect.
Here are the detailed specifications for the
Ubiquiti UniFi Protect G5 PTZ (UVC-G5-PTZ) camera:
📷 Camera & Optics
- Sensor: 5MP 1/2.7" CMOS
- Lens: Varifocal 3.42–6.85 mm, ƒ/1.85–ƒ/2.4
- Optical Zoom: 2x
- Field of View:
- Wide: Horizontal 99.7°, Vertical 51.9°, Diagonal 121°
- Tele: Horizontal 45.5°, Vertical 25.4°, Diagonal 52.4°
- Night Vision:
- Built-in IR LEDs and white LED spotlight
- IR range: up to 20 m (65 ft)
- IR cut filter for accurate color reproduction
🎥 Video
- Resolution: 4MP (2688 x 1512)
- Aspect Ratio: 16:9
- Frame Rate: Up to 30 FPS
🔊 Audio
- Microphone: Integrated (can be disabled via software
🌐 Networking & Power
- Interface: 10/100 Mbps RJ45 Ethernet
- Power Input: PoE+ (802.3at)
- Voltage Range: 37–57V DC
- Max Power Consumption: 14W
🛡️ Environmental & Build
- Weatherproofing: IP66-rated for outdoor use
- Impact Resistance: IK04
- Operating Temperature: -30°C to 45°C (-22°F to 113°F)
- Operating Humidity: 0% to 90% non-condensing
- Enclosure Material: Aluminum alloy and polycarbonate
📏 Dimensions & Weight
- Without Mount: Ø90 x 152.5 mm (Ø3.5 x 6")
- With Mount: 90 x 94 x 179.5 mm (3.5 x 3.7 x 7")
- Weight:
- Without mount: 580 g (1.3 lb)
- With mount: 650 g (1.4 lb)
🛠️ Mounting Options
- Included: Wall and pole mounts
- Optional Accessories: Conduit adapter, surface mount, in-ceiling mount, pendant mount, corner mount
🧠 Smart Features
- AI Detection: Supports person, vehicle, and animal detection
- Auto-Tracking: Automatic person tracking
- LED Spotlight: 400 lm for enhanced night visibility
📱 Software Integration
- Management Interface: UniFi Protect (Web UI, iOS, Android)
- Remote Access: Available via UniFi Cloud or Remote Access Portal
This compact, all-weather PTZ camera offers ultra-low latency pan-tilt-zoom control, making it suitable for various surveillance applications. Its integration with the UniFi Protect ecosystem ensures seamless management and advanced AI-driven features.
