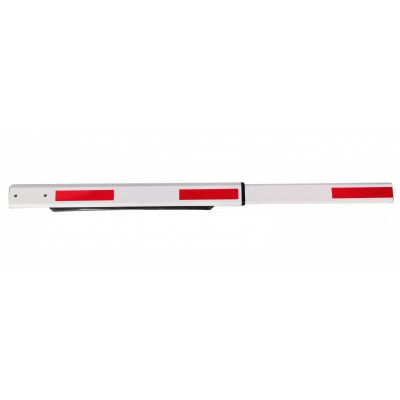

Device Type: Telescopic Barrier Rod (Boom Barrier Arm / Gate Arm)
Model / SKU: DHI-IPMECD-0152-M3040 (also listed as IPMECD-0152-M3040)
Brand: Dahua
Arm Type: Telescopic / Retractable Boom Arm; Universal (can be used on either left or right side) of the barrier gate
Arm Length: Adjustable from 3 metres to 4 metres
Material: Aluminium Alloy (Main Arm)
Surface Treatment: Electrostatic Spray Coating (Anti-Rust)
Colour: Red & White (Standard Safety Colours)
Anti-Smashing Protection: Main Arm Base Equipped with Elastic Anti-Smashing Rubber Strip (Elastic Crash-Proof Rubber Strip); Telescopic Sub-Arm Section Does Not Include the Rubber Strip
Compatibility: Designed for use with Dahua DH-IPMECD-105X Series Barrier Gates
Environmental:- Operating Temperature: –35°C to +85°C (–31°F to +185°F)
- Operating Humidity: 10% – 90% RH (Non-Condensing)
Physical:- Dimensions (L × W × H): 3000 mm × 100 mm × 45 mm (as shipped, before extension)
- Net Weight: 3.9 kg
- Gross Weight: 5.4 kg
- Packing Volume: 0.06 m³
Key Specs: Dahua DHI-IPMECD-0152-M3040 Telescopic Barrier Rod, 3–4m Adjustable Length, Universal Left/Right Fitment, Aluminium Alloy Construction, Electrostatic Spray Anti-Rust Finish, Red & White Colour, Elastic Anti-Smashing Rubber Strip on Main Arm, Compatible with DH-IPMECD-105X Series Barrier Gates, –35°C to +85°C Operating Temperature, 3000×100×45mm, 3.9kg Net Weight, 5.4kg Gross Weight
Usage: Vehicle Access Control, Parking Facilities, Toll Gates, Residential & Commercial Entrances, Industrial Sites, and Any Installation Requiring a Reliable, Corrosion-Resistant Telescopic Barrier Arm with Safety Protection
