The

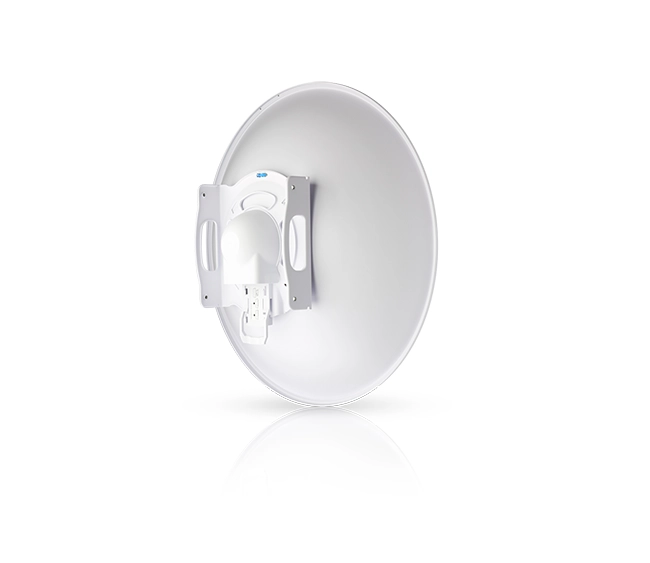

Ubiquiti RocketDish 5 GHz 30 dBi LW (RD‑5G30‑LW) is a high-performance, lightweight parabolic dish antenna tailored for long-range point-to-point links. With
30 dBi gain,
dual-linear MIMO polarization, and a
5.8° beamwidth, it delivers focused, interference-resistant connectivity.
Its
extended-depth dish design improves noise isolation in dense deployments. Weighing only
7.4 kg with integrated pole mount, adjustable tilt, and protective shroud, it supports
±24 kV ESD protection and withstands
200 km/h winds. Operating from
5.1–5.9 GHz, it features a
30 dB front-to-back ratio,
≤1.6 VSWR, and
≥35 dB cross-pol isolation, meeting ETSI EN 302 326 DN2 specifications.
The universal Rocket bracket offers
plug-and-play integration with Rocket M/Prism radios, while optional IsoBeam radomes enhance performance. Rugged, precise, and easy to install, it’s ideal for carrier-grade backhaul and high-speed wireless networks.
Detailed Specifications for Ubiquiti airMAX 5 GHz 30 dBi RocketDish LW (RD‑5G30‑LW)
🛠 Mechanical & Environmental
- Dish Size: 650 × 650 × 386 mm
- Weight: 7.4 kg (with mount)
- Mounting: Universal pole bracket with Rocket radio mount, elevation adjustment, integrated bubble level, and weatherproof RF jumpers
- Wind Survivability: Up to 200 km/h; Wind Loading: 790 N @ 200 km/h
- Material & Protection: Powder-coated galvanized steel with protective shroud, ±24 kV ESD-rated, ETSI EN 302 326 DN2 compliant
- Operating Conditions: –40 °C to +80 °C; non-condensing humidity
📡 Ubiquiti airMAX 5 GHz RF & Antenna
- Frequency Range: 5.1–5.9 GHz
- Gain: 30 dBi across 5 GHz band
- Beamwidth: Horizontal/Vertical ~5.8° (3 dB)
- Front‑to‑Back Ratio: 30 dB
- VSWR: ≤ 1.6:1
- Polarization: Dual‑linear MIMO; Cross‑polar isolation: ≥ 35 dB
🔧 Performance & Integration
- Lightweight Design: Extended-depth dish rejects co-location noise while reducing weight and easing installation
- Compatibility: Designed to mount seamlessly with Rocket M/Prism radios; snap-in installation; includes weatherproof RF jumpers
- Optional Accessories: Supports IsoBeam radome (ISO-BEAM-620) and Precision Alignment Kit for enhanced performance and alignment accuracy
✅ Meta Description
The Ubiquiti RocketDish LW (RD‑5G30‑LW) is a lightweight, high-gain 30 dBi 5 GHz dish antenna with noise-rejection design, rugged build, narrow beamwidth, and seamless Rocket radio integration—ideal for long-range PtP links.
