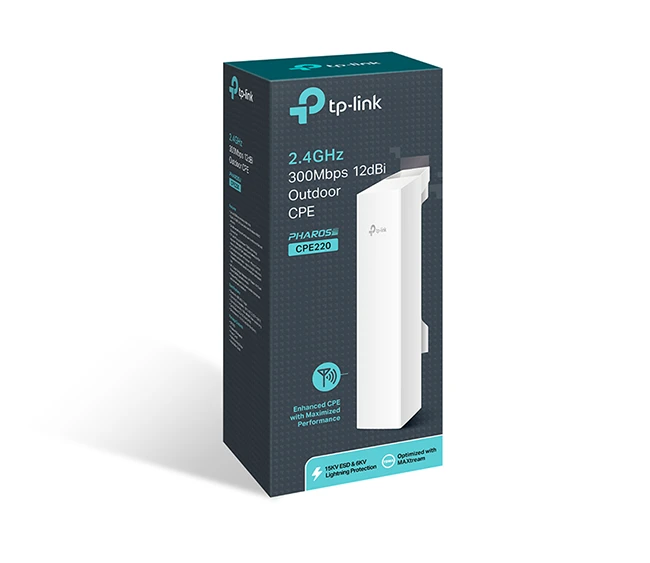

The TP-Link 2.4GHz 300Mbps 12dBi Outdoor CPE - CPE220 is a high-gain, long-range outdoor wireless CPE designed for professional point-to-point (PtP) and point-to-multipoint (PtMP) connections in the 2.4 GHz band. Featuring a powerful 12 dBi directional antenna, 300 Mbps wireless speed, and up to 30 km+ transmission range in ideal conditions, it’s ideal for WISPs, farms, campuses, and outdoor surveillance.
Its rugged weatherproof design, high output power, and Pharos Control software make it a reliable solution for stable outdoor connectivity.
Detailed Specifications
Wireless Standards:
Frequency Band:
- 2.4 GHz (2400–2483.5 MHz)
Wireless Speed:
- Up to 300 Mbps (802.11n, 40 MHz channel width)
Antenna:
- Built-in 12 dBi 2×2 MIMO directional antenna
- Beamwidth: H-Polarization 60°, V-Polarization 30°
Transmit Power:
- Adjustable up to 30 dBm (1000 mW)
Range Performance:
- Point-to-point distance: up to 13 km+ (line-of-sight)
- Point-to-multipoint: up to 30 km with optimized deployment
Processor & Memory:
- Qualcomm Atheros Enterprise 560 MHz CPU
- 64 MB DDR2 RAM, 8 MB Flash
Operation Modes:
- Access Point (AP)
- Client (AP Client/Station)
- Repeater
- AP Router (WISP)
- Bridge
Ethernet Port:
- 1× 10/100 Mbps Shielded Ethernet Port (Passive PoE in)
PoE Power Supply:
- Passive PoE adapter included (up to 60 meters)
- Power: 16–27V DC via PoE
Management & Software Features:
- Pharos Control centralized management
- Pharos MAXtream TDMA technology for optimized multi-user performance
- QoS for bandwidth control
- VLAN support
- Watchdog system for self-recovery
Security:
- WPA/WPA2-PSK and WPA/WPA2-Enterprise
- Wireless MAC filtering
- Access control lists
Enclosure & Durability:
- Outdoor weatherproof enclosure (IPX5-rated)
- -30°C to 70°C operating temperature range
- 15 kV ESD and 6 kV lightning protection
Dimensions & Weight:
- 224 × 79 × 60 mm
- Weight: ~320 g
Key Features
- 300 Mbps 2.4 GHz wireless speed for high-performance outdoor links
- High-gain 12 dBi directional antenna for extended coverage
- Up to 13–30 km wireless transmission range (environment dependent)
- Passive PoE for flexible installation up to 60 m
- Weatherproof housing with built-in ESD and lightning protection
- Multiple operation modes with centralized management via Pharos Control
