Datasheet
Power Conversion & Output
- Input Voltage: It accepts a DC input range of 10-15VDC (nominally 12VDC) .
- Output Power: It delivers 24VDC regulated output with a maximum power of 35W (1.46A) .

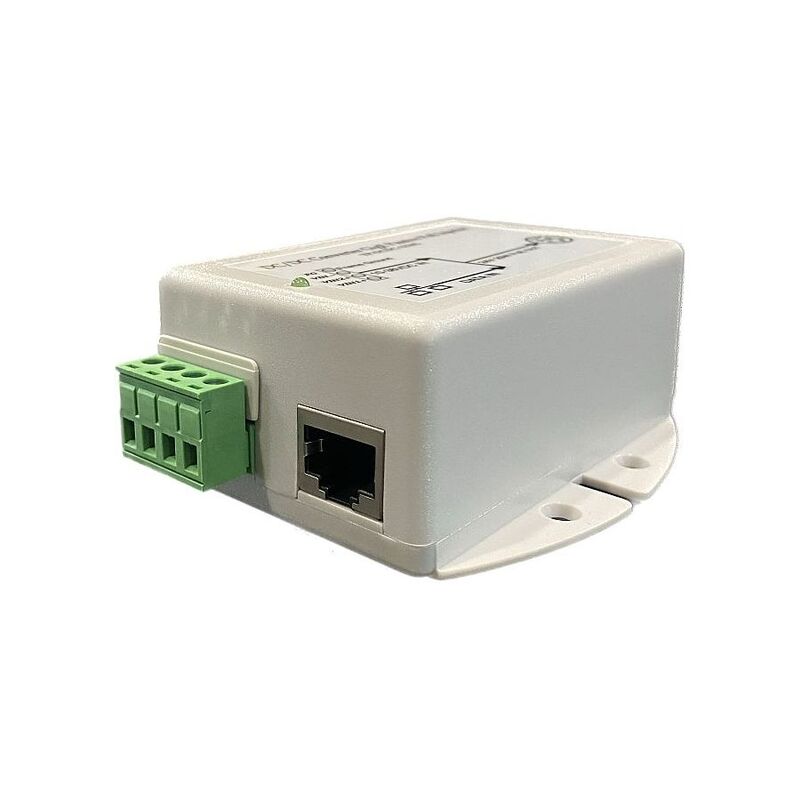

- Integrated PoE Inserter: It combines data and power onto a single shielded RJ45 output jack, supplying power on the unused Ethernet pins 4,5 (V+) and 7,8 (V-) .
🔌 Connectivity & Backup
- Dual Power Inputs: It features two input connections, allowing you to wire a primary and a backup power source to ensure continuous operation .
- Data Pass-Through: It accepts data input via a shielded RJ45 jack and outputs the combined data and PoE power through a second shielded RJ45 jack .
🛡️ Protections & Reliability
- Safety Features: It includes built-in protections against short circuit, over current, and over voltage .
- Isolation: The input and output are isolated, allowing it to accept negative voltage on the input while providing positive voltage on the output .
- Operating Temperature: It is rated for operation in extreme environments, from -30°C to 60°C .
🛠️ Physical Specifications
- Dimensions: The unit measures approximately 4.90" L x 3.00" W x 1.50" H .
- Mounting: It is designed for chassis mount installation .
- Efficiency: It operates at a typical efficiency of 75% .
