Port Configuration (Your listed ports confirmed): Features 3x Gigabit Ethernet ports and 3x 10G SFP+ cages. Among the Ethernet ports, Ether1 supports PoE-in (802.3bt), while Ether2 and Ether3 provide Passive PoE-out (up to 57V) for powering downstream devices .
Power & Output (Key Advantage): Beyond PoE, it includes 3x DC output ports (total max 3.6A) for IoT gear or specialized equipment. It can be powered via a DC jack (12-57V) or PoE-in (42-57V). The total PoE output budget is 150W (2.4A total), and max power consumption is 160W .

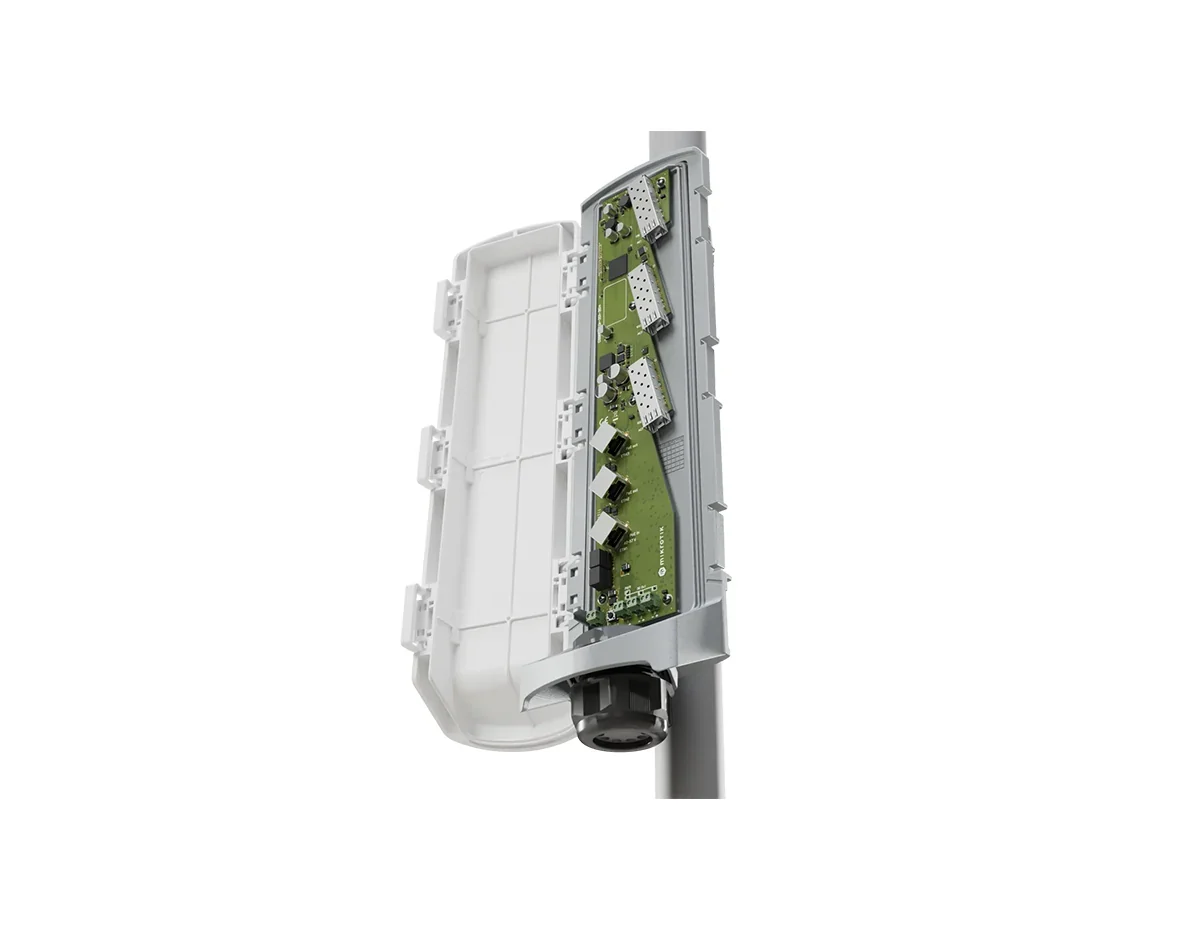

Build & Durability: Housed in a heavy-duty IP66-rated enclosure, making it resistant to dust and water. It operates in extreme temperatures from -40°C to +70°C and uses passive cooling (no fans), enhancing reliability in harsh environments .
Hardware & OS: Powered by a dedicated 88E6193X switch chip for non-blocking performance. It runs SwOS and has an MTBF of approximately 200,000 hours at 25°C .
Physical: Dimensions are 406 × 116 × 76 mm. It is designed for pole or wall mounting (mounting kit included) .
