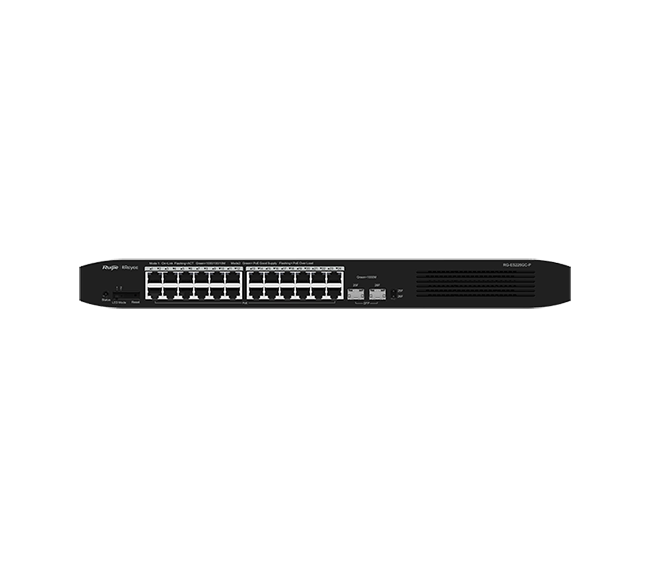

Ruijie RG-ES226GC-P - 26-Port Gigabit Smart Cloud-Managed PoE Switch
Overview
The Ruijie RG-ES226GC-P is a high-performance Layer 2 managed PoE+ switch featuring 24 Gigabit Ethernet PoE+ ports and 2 SFP uplink ports. Designed for medium to large enterprise networks, surveillance systems, and campus deployments, it offers a robust total PoE power budget of 370W. This switch supports cloud management, simplifying network configuration, monitoring, and maintenance remotely. Ideal for powering IP cameras, wireless access points, VoIP phones, and other PoE-enabled devices.
Key Features
- 24 × 10/100/1000Base-T PoE+ ports with IEEE 802.3af/at support
- 2 × 1000Base-X SFP uplink ports for flexible fiber connections
- Total PoE Power Budget: 370W
- Switching Capacity: 56 Gbps
- Forwarding Rate: 41.67 Mpps
- MAC Address Table: 8,000 entries
- VLAN Support: Up to 16 VLANs (802.1Q)
- Fan: Built-in with adaptive speed control for silent operation under normal temperatures
Cloud Management & Smart Functions
- Ruijie Cloud Management: Lifetime free access for remote monitoring, configuration, and firmware updates via web and mobile apps
- Zero-Touch Provisioning (SON): Enables plug-and-play deployment
- IP Camera Recognition: Auto-detects IP cameras and optimizes network settings
- Loop Prevention: Automatically detects and prevents network loops
- PoE Port Management: Individual port power control, reboot, and real-time alarms
- Extended PoE Transmission: Supports distances up to 250 meters
- Cable Testing: Identifies cable faults and wiring errors
- Network Segmentation: VLAN configuration via Ruijie Cloud
Technical Specifications
| Specification |
Details |
| Dimensions |
440 mm × 230 mm × 43.6 mm |
| Weight |
Approx. 5.1 kg (with package) |
| Power Supply |
100–240V AC, 6A |
| Power Consumption |
≤ 450W |
| Operating Temperature |
0°C to 40°C |
| Operating Humidity |
10% to 90% RH |
| MTBF |
>200,000 hours |
| Port Surge Protection |
4 kV |
| Certifications |
CE, RoHS |
Package Contents
- Ruijie RG-ES226GC-P Switch
- Power Adapter
- Quick Start Guide
- Warranty Card
- Mounting Brackets and Screws
Why Choose Ruijie RG-ES226GC-P?
- Powerful 370W PoE budget for high-demand deployments
- Flexible uplink options with SFP ports
- Robust cloud-based management for ease of administration
- Silent operation with smart fan control
- Enhanced network reliability with loop prevention and VLAN support
