hEX PoE is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. The device has a USB 2.0 port and a SFP port for adding optical fiber connectivity. The ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit.
It is affordable, small and easy to use, but at the same time comes with a very powerful 800MHz CPU, capable of all the advanced configurations that RouterOS supports. Less power adapters and cables to worry about! Max current is 1A per port, Ethernet ports are shielded.
It also supports passive PoE input and passive or 802.3af/at PoE output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! It can power at/af mode B (4,5+)(7,8-) compatible devices, if 48-57 input voltage is used.

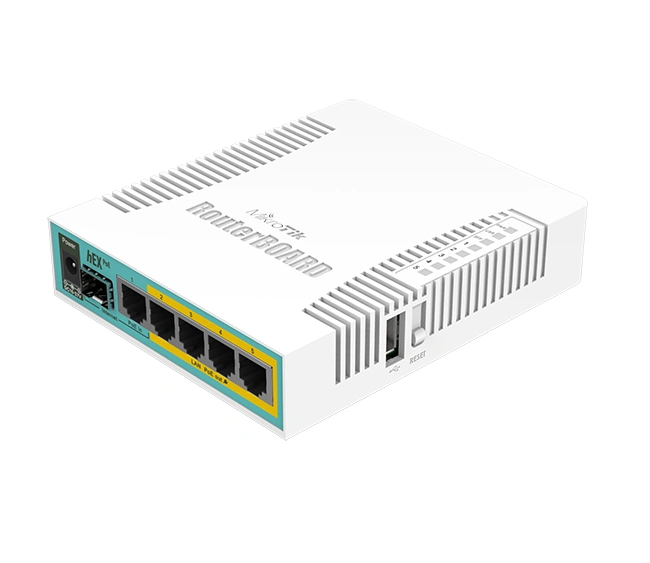

⚡ MikroTik RB960PGS – hEX PoE
Smart Power. Reliable Routing. Compact Design.
🔧 Hardware Highlights
A powerful, cost-effective solution for small networks and PoE-powered setups.
- CPU: 1x MIPSBE 800 MHz
- Memory: 128 MB DDR2 RAM
- Storage: 16 MB Flash
- RouterOS: Pre-installed, License Level 4
- Case: Compact, plastic enclosure with passive cooling
- LEDs: Power and activity indicators per port
🌐 Networking & Connectivity
- 5 × 10/100/1000 Mbps Gigabit Ethernet Ports
- Ports 2–5 support Passive PoE Out
- 1 × SFP Port
- Passive PoE-In on port 1
- Powers the unit and other devices
- Max Ethernet Throughput: Up to 1 Gbps
⚡ Power Management
- PoE Output: Passive PoE out on ports 2–5
- Voltage mirrors input (supports up to 1A per port, max 2A total)
- Input Voltage: 12 – 57 V (via DC jack or PoE-in)
- Max Power Consumption:
- 10W (without PoE-out)
- 54W (with PoE-out load)
- Power Adapter: Not always included (optional purchase)
🧠 RouterOS Capabilities
Enjoy advanced MikroTik RouterOS features:
- Routing, Firewall, NAT
- VPN (IPSec, PPTP, L2TP, etc.)
- VLAN, MPLS, OSPF, BGP
- QoS & Bandwidth Management
- Hotspot Gateway
- Real-time traffic monitoring
🌍 Reliable in Any Environment
- Operating Temperature: –40°C to +70°C
- Fanless Design: Silent operation
- Mounting: Desktop or wall-mountable
- Ideal Use Cases:
- Small offices & remote sites
- Wireless AP & IP camera deployment
- PoE switch/router combo setups
🏆 Why Choose RB960PGS (hEX PoE)?
✅ Simplified power & data with PoE-out
✅ Fiber-ready with SFP slot
✅ Robust performance in compact form
✅ Budget-friendly advanced routing
✅ Industrial-grade reliability
📦 What’s in the Box?
- hEX PoE Router (RB960PGS)
- Optional: Power Adapter (sold separately)
- Quick Setup Guide
