The

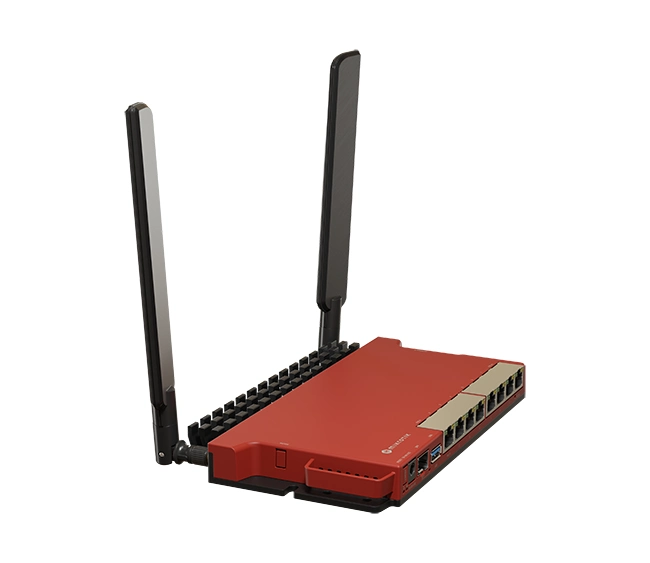

MikroTik L009UiGS-2HaxD-IN Wireless Router is a next-generation SOHO router from MikroTik that combines powerful hardware, modern design, and a wide range of features in a single, affordable device. It features Wi-Fi 6 for enhanced wireless performance, eight Gigabit Ethernet ports, a 2.5G-capable SFP cage, USB 3.0 for storage or LTE modems, and PoE-in/out support. Ideal for advanced home users and small office networks.
🧠 Core Hardware
- Model: L009UiGS-2HaxD-IN
- Architecture: ARM 64-bit
- CPU: Marvell 88F7040 (dual-core, 800 MHz)
- RAM: 512 MB DDR3L
- Storage: 128 MB NAND
- RouterOS License: Level 5
- Operating System: RouterOS v7
- MTBF: Approximately 200,000 hours at 25°C
📶 Wireless
- Wireless Standard: 2.4 GHz Wi-Fi 6 (802.11b/g/n/ax)
- Wireless Chipset: IPQ-5018
- Chains: 2x2 MIMO
- Max Wireless Data Rate: 574 Mbps
- Antenna Gain: 4 dBi
- Wireless Modes: Access Point, Station, Bridge, Repeater
🌐 Networking Interfaces
- Ethernet Ports: 8 × Gigabit Ethernet
- SFP Port: 1 × SFP cage supporting up to 2.5G modules
- USB Port: 1 × USB 3.0 Type-A
- Serial Console: RJ45
⚡ Powering
- Power Inputs:
- PoE-in on Ether1 (802.3af/at)
- DC Jack (24-57 V)
- PoE-out on Port 8: Passive PoE-out (up to 1 A depending on voltage)

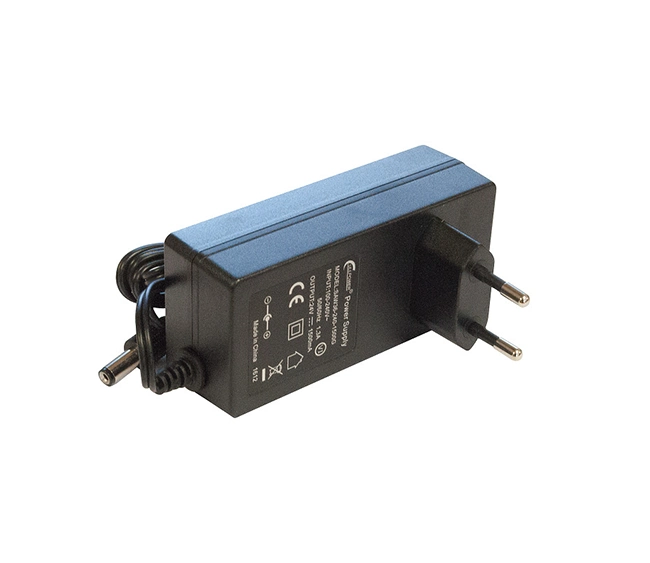

- Power Supply Included: Yes (24 V, 2.5 A)
- Max Power Consumption (without attachments): ~12 W
- Max Power Consumption (with attachments): ~45 W
🔐 Security and Software
- Hardware Acceleration: IPsec encryption supported
- Firewall and NAT: Supported
- Routing Protocols: OSPF, BGP, RIP, MPLS
- Wireless Management: CAPsMAN
- Virtualization: Container support for apps like Pi-hole or Home Assistant
- Monitoring: SNMP, Traffic Flow, Netwatch, Tools
- VPN Support: IPsec, L2TP, PPTP, SSTP, OpenVPN
🛠️ Physical and Environmental
- Dimensions: 220 x 125 x 22 mm
- Weight: ~430 g
- Mounting Options: Desktop or rack-mount (4 units per 1U with optional bracket)
- Operating Temperature: -40°C to +70°C
- Cooling: Passive, fanless design
📝 Meta Description
MikroTik L009UiGS-2HaxD-IN Wireless Router is a Wi-Fi 6 router with 8 Gigabit ports, 2.5G SFP, USB 3.0, PoE-in/out, and dual-core performance—ideal for advanced home or small office networks with RouterOS v7 and Level 5 license.
